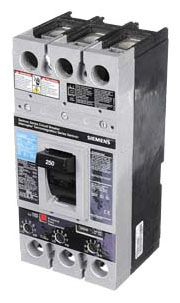

FXD63B250L Siemens / ITE Molded Case Circuit Breakers

Item # FXD63B250L

FXD63B250L

NOTE: Images are for Reference Only

Product Specifications

Type
FXD
Amperage
250
Poles
3
Voltage
600
Short Circ Int Cap
35kA@480V
Configuration
Feed-Thru

FXD63B250L Description

Siemens, Molded Case, Circuit Breaker, Type FXD, 250A, 3P, 600 VAC, Feed-Thru, Line + Load Lugs, Thermal Magnetic, Interrupting Current: 35 kA at 480 VAC Molded Case Circuit Breakers from Siemens / ITE

Features and Benefits

Features/Benefits:
Low Voltage Molded Case Circuit Breaker; RoHS Compliant
Additional Information:
600 VAC 50/60 Hz, 500 VDC, 250 A at 40 Deg C, 35 kA at 480 VAC, 3-Pole, 6 AWG to 350 MCM Copper/4 AWG to 350 MCM Aluminum, Line/Load Lug Terminal, FD Frame, Thermal Magnetic Trip Unit, Non-Interchangeable Trip, Molded Case Circuit Breaker
