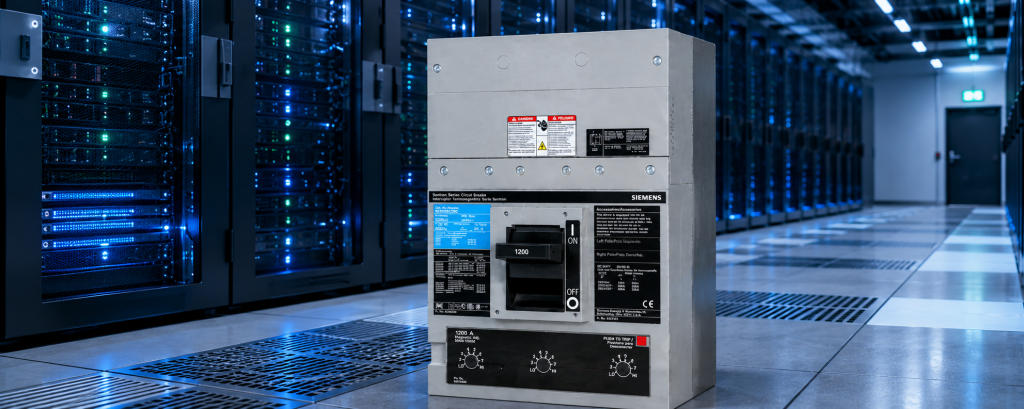

Introduction to SIEMENS Sentron ND Frame Breakers

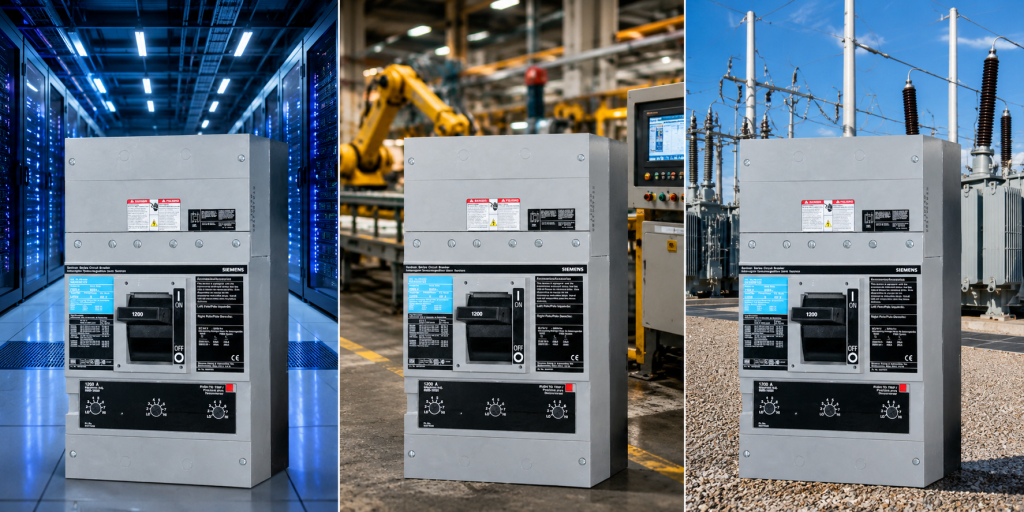

Siemens Sentron ND Frame breakers designed for switchboards, panelboards, motor control centers.

Need Sentron Breakers?

Get Sentron Breaker Quote
Table Of Contents
  1. Protect systems against overloads, short circuits
  2. Compact physical size and dependable protection
  3. Thermal Magnetic Protection, High Interrupting Ratings
  4. Consistency across equipment platforms
  5. Breaker replacement spec review
  6. Tested, inspected breakers for long-term operation
  7. Contractors, maintenance teams, and facility operators

Protect systems against overloads, short circuits

while providing reliable performance, better installation and purchasing decisions,

Replacing an aging breaker, upgrading existing equipment

Siemens Sentron ND Frame breakers are molded case circuit breakers used for years in switchboards, panelboards, motor control centers, and industrial power distribution systems because they provide dependable overcurrent protection.

Replacing an aging breaker, upgrading existing equipment, or sourcing surplus electrical components? Understanding the Sentron circuit breaker family can help you make better installation and purchasing decisions.

The ND Frame belongs to Siemens’ Sentron molded case circuit breaker product family. They’re designed to protect electrical systems against overloads and short circuits while providing reliable performance.

Compact physical size and dependable protection

for facilities needing higher-capacity breakers without sacrificing panel space

What Is a Siemens Sentron ND Frame Breaker?

These Siemens circuit breakers used for feeder and branch circuit protection in higher amperage applications. The ND Frame family became popular because it delivers a strong balance between compact physical size and dependable protection. Many facilities needed higher-capacity breakers without sacrificing valuable panel space, especially in retrofit situations where electrical rooms were already crowded.

ND Frame breaker installations include:

UL 891 switchboards
Commercial panelboards
Motor control centers
Industrial distribution assemblies

Because of their widespread installation base, many contractors and maintenance teams look for replacement Siemens Sentron molded case breakers during modernization projects and planned maintenance outages.

Thermal Magnetic Protection, High Interrupting Ratings

… dependable operation with relatively simple maintenance

Key Features of Siemens ND Frame Circuit Breakers

Thermal Magnetic Protection in Siemens ND Breakers
Many ND Frame breakers use thermal magnetic trip protection. This design lets the breaker respond to both long-term overload conditions and instantaneous short circuits. Thermal magnetic protection is used for dependable operation with relatively simple maintenance requirements.

Compact Design of Sentron ND Molded Case Circuit Breakers
Electrical rooms are often tight on space. One advantage of the Sentron ND molded case circuit breaker design is higher amperage protection with a relatively compact footprint.
For contractors working on retrofits or equipment replacements, this smaller footprint can simplify installation and minimize costly equipment modifications.

High Interrupting Ratings for Industrial Applications
Industrial power systems require breakers that can interrupt significant available fault current. Siemens ND breakers are available with interrupting capacities for commercial and industrial environments that need electrical reliability.

Consistency across equipment platforms

simplifies spare parts inventory and maintenance procedures.

Why Contractors Use Sentron ND Molded Case Circuit Breakers

Contractors often continue using Sentron ND molded case circuit breakers because of familiarity, availability, and compatibility with existing electrical equipment.

Replacement breaker availability is another major factor. Since Siemens Sentron breakers were installed across such a large number of facilities, replacement inventory and tested surplus units are still actively sourced through electrical distributors and aftermarket suppliers.

Consistency across equipment platforms also matters in large facilities. Maintenance teams keep these breakers on-hand throughout a facility because it simplifies spare parts inventory and maintenance procedures.

Breaker replacement spec review

affects system compatibility and performance

Understanding Siemens ND Breaker Specifications

Siemens ND Frame Amp Ratings
ND Frame breakers are usually available in ratings up to 800 amps depending on the specific catalog number and application.

Siemens ND Breaker Voltage Ratings
Most Siemens ND Frame circuit breakers are designed for systems operating up to 600VAC, so they’re good for a wide range of commercial and industrial applications.

Interrupting Ratings and AIC Performance
Contractors should always verify the interrupting rating before installation. Matching the proper AIC rating is necessary for code compliance and safe fault interruption.

Mounting and Compatibility Considerations
When replacing existing breakers, verify mounting configuration, frame dimensions, trip characteristics, and compatibility with existing switchboards or panelboards.
In many retrofit projects, contractors are working within the limitations of existing equipment layouts, so confirming physical fit and electrical compatibility becomes even more important.

Tested, inspected breakers for long-term operation

… When selecting a breaker, verify key specifications before installation.

How to Select the Right Siemens ND Frame Circuit Breaker

You should always confirm:

Voltage rating
Amp rating
Interrupting capacity
Trip characteristics
Mounting style
Existing equipment compatibility

Inspect existing electrical equipment for signs of overheating, corrosion, physical damage, or improper field modifications before installing replacement breakers. For critical applications, facilities prefer professionally tested and inspected breakers for dependable long-term operation.

Contractors, maintenance teams, and facility operators

upgrading aging equipment or replacing an existing breaker for planned maintenance.

Final Thoughts on Sentron ND Breakers

The Siemens Sentron ND Frame breaker remains a trusted solution for commercial and industrial electrical distribution systems. Its combination of dependable protection, compact design, and long-term field reliability continues to make it a preferred choice among contractors, maintenance teams, and facility operators.

Whether you’re upgrading aging equipment or replacing an existing breaker during planned maintenance, understanding Siemens ND Frame circuit breakers can help you make safer and more informed electrical distribution decisions.

Siemens Sentron ND Frame Part Numbers

Part NumberShort DescriptionAmp Rating
ND63F800Siemens Sentron ND Frame molded case circuit breaker800A
ND63B700Siemens ND Frame thermal magnetic circuit breaker700A
ND63F600Siemens Sentron feeder protection breaker600A
ND63B500Siemens molded case power distribution breaker500A
ND63L400Siemens Sentron industrial circuit breaker400A
ND63F350Siemens ND Frame commercial breaker350A
ND63B250Siemens Sentron branch circuit breaker250A
+ What is a Siemens Sentron ND Frame breaker?

A Siemens Sentron ND Frame breaker is a molded case circuit breaker designed for commercial and industrial overcurrent protection applications.

+ What amp range is available for ND Frame breakers?

Many ND Frame breakers are commonly available up to 800 amps depending on the catalog number.

+ Are Siemens ND breakers thermal magnetic?

Yes. Many Siemens ND breakers use thermal magnetic trip protection to respond to overloads and short circuits.

+ What voltage are Siemens ND breakers rated for?

Most Siemens ND Frame circuit breakers are designed for systems up to 600VAC, depending on the specific model and application.

+ Where are Siemens ND Frame breakers commonly installed?

Siemens ND Frame breakers are commonly used in switchboards, panelboards, motor control centers, and industrial distribution equipment.

+ Can Siemens ND breakers be used for feeder protection?

Yes. Siemens ND breakers are frequently used for feeder protection and branch circuit protection in commercial and industrial power systems.

+ Are replacement Siemens ND breakers still available?

Yes. Many replacement and surplus Siemens ND breakers are available through electrical distributors and aftermarket suppliers.

TermDefinition
Siemens Sentron ND FrameA Siemens molded case circuit breaker family used in industrial power distribution. See example part numbers: ND63F800, ND63F600, ND63B500.
Molded Case Circuit BreakerA breaker enclosed in a molded insulating housing, commonly used for commercial and industrial overcurrent protection.
Thermal Magnetic TripA protection method using thermal and magnetic trip elements to respond to overloads and short circuits.
Interrupting RatingThe maximum fault current a breaker can safely interrupt.
AIC RatingAmpere Interrupting Capacity, which identifies how much fault current the breaker can safely clear.
Feeder CircuitA circuit supplying power from one distribution point to downstream equipment.
PanelboardAn electrical distribution panel containing circuit breakers for branch circuits.
SwitchboardA larger electrical distribution assembly used in commercial and industrial facilities.
Overcurrent ProtectionProtection against excessive current caused by overloads or short circuits.
