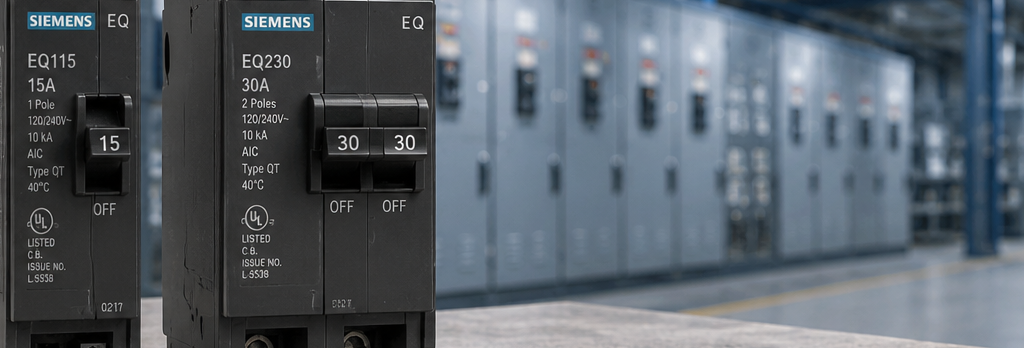

Siemens EQ Load Center

Siemens EQ Load Centers are a good choice for residential and light commercial distribution.

Need Siemens EQ Breakers?

Get Siemens Breaker Quote
Table Of Contents
  1. Siemens EQ Load Center Guide
  2. Main point of distribution for electricity
  3. EQ Breaker vs. Siemens EQL Breaker
  4. Thermal overload protection with magnetic trip prevention
  5. Popular EQ Type Breakers
  6. Performance of Siemens EQ Load Centers
  7. Selecting panel size during construction
  8. Before purchasing replacement breakers
  9. Evaluating your current electrical needs

Siemens EQ Load Center Guide

… select the best components for your project and avoid costly installation mistakes.

Choosing the Right Siemens EQ Breaker for Your Project

If you are installing a new electrical panel or upgrading an old one, a Siemens EQ Load Center is a good choice for residential and light commercial distribution. Siemens EQ load centers are popular among electricians, contractors, builders, and property owners due to their high quality construction, versatile designs, and dependable protection.

Understanding the differences between a Siemens EQ Breaker, a Siemens EQL Breaker, and overall Siemens Circuit Breaker Compatibility will help you to select the best components for your project and avoid costly installation mistakes.

Main point of distribution for electricity

Many contractors recommend choosing a load center with extra circuit capacity for future growth.

What Is a Siemens EQ Load Center?

A Siemens EQ Load Center is the main point of distribution for electricity once it enters a building. Inside the enclosure, bus bars distribute electricity via individual circuit breakers to protect against overloads and short circuits.

A Siemens Load Center organizes and protects the electrical system making future maintenance and expansion simpler. Siemens offers sizes to fit projects ranging from small residential improvements to major commercial installations.

Electrical demand is increasing due to electric car chargers, home offices, heat pumps, and other appliances, so many contractors recommend choosing a load center with extra circuit capacity for future growth.

EQ Breaker vs. Siemens EQL Breaker

Knowing which breaker your panel avoids improper installation or compatibility issues.

Siemens EQ Breaker vs. Siemens EQL Breaker: What’s the Difference?

People use the terms interchangeably, a Siemens EQ Breaker and a Siemens EQL Breaker aren’t exactly the same.

A basic Siemens EQ Breaker is often used to protect branch circuits that power lighting, receptacles, appliances, HVAC equipment, and other electrical loads. These breakers are available in a variety of amperage levels and single-, double-, or three-pole layouts, depending on the need.

A Siemens EQL Breaker, on the other hand, is usually connected with larger-frame breakers that serve as primary disconnects or higher-capacity protection devices within compatible Siemens load centers. These breakers are meant to handle significantly higher electrical loads and offer the same dependable thermal magnetic protection as Siemens equipment.

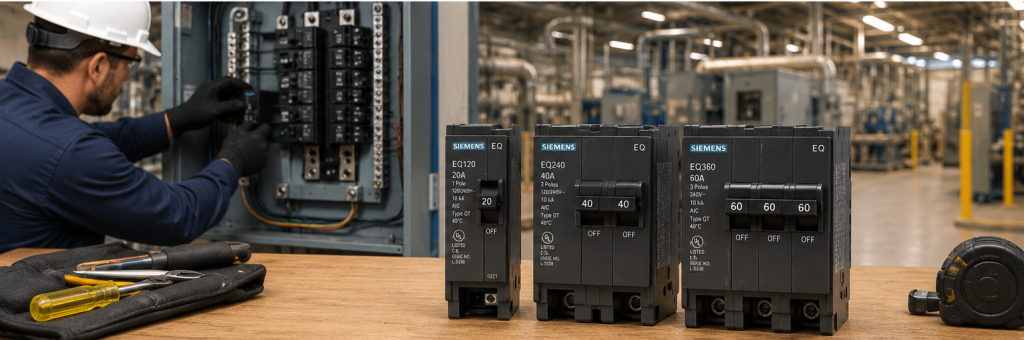

Siemens EQ Breakers

Thermal overload protection with magnetic trip prevention

Check the current catalog number and panel labeling to confirm you are installing an approved replacement.

Siemens EQL Breakers Explained

Siemens EQL Breakers are used in situations when more electrical capacity is needed than a typical branch breaker can provide. They are often used as the main disconnect in bigger private residences or light commercial establishments.

These breakers combine thermal overload protection with instantaneous magnetic trip prevention, helping them to respond fast to short circuits while also protecting wiring from long-term overload events. Their durable molded-case construction provides years of consistent operation, making them perfect for applications requiring dependability.

Part Number Description
MBK100 100A, 2-Pole Main Breaker Kit for Siemens EQ Load Centers, 240V
MBK125A 125A, 2-Pole Main Breaker Kit for Siemens EQ Load Centers
QJ22B070 70A, 2-Pole Siemens EQ Main Breaker, 240V
QJ22B090 90A, 2-Pole Siemens EQ Main Breaker, 240V
QJ23B070 70A, 3-Pole Siemens EQ Main Breaker, 240V
QJH23B175 175A, 3-Pole Siemens EQ Main Breaker, High Interrupting Rating
QR22B125 125A, 2-Pole Siemens Main Breaker for EQ Load Centers
QRH23B175 175A, 3-Pole Siemens High Capacity Main Breaker
EQT230230 30/30A, 4-Pole Siemens Tandem EQ Breaker Assembly
QPP2150 150A, 2-Pole Siemens Power Distribution Breaker, 240V

Relectric has a broad inventory of new, older, and hard to find Siemens Breakers. Get detailed specs and design information on hundreds of new and surplus breakers certified to your specifications.

Performance of Siemens EQ Load Centers

AdvantageWhy It Matters
Contractor-friendly designSimplifies installation and reduces labor time.
Multiple configurationsAvailable in various circuit counts, enclosure sizes, and main breaker options.
Reliable electrical protectionWorks with approved Siemens breakers to protect wiring and equipment.
Expansion capabilityAdditional circuit spaces make future upgrades easier.
Durable constructionHeavy-duty steel enclosures and robust bus systems provide long service life.
Trusted manufacturerSiemens products are widely recognized throughout the electrical industry for consistent quality.

Selecting panel size during construction

… Each structure has unique power requirements

Siemens Load Center Applications for Residential and Light Commercial Projects

A Siemens Load Center can be found in almost any domestic electrical installation. These panels are good for new house construction, service improvements, detached garages, workshops, completed basements, and home extensions.

They’re also used in light commercial applications needing stable electrical distribution. Small office buildings, retail establishments, restaurants, medical offices, churches, apartment buildings, and mixed-use sites typically use Siemens load centers because they’re available in multiple capacities to meet a wide range of electrical needs.

Each structure has unique power requirements, so choosing the appropriate panel size during initial construction minimizes upgrade expenses.

Before purchasing replacement breakers

… follow the compatibility information provided on the panel label.

Siemens Circuit Breaker Compatibility for EQ Load Centers

Even if two breakers seem identical, that doesn’t mean they’re approved for use in the same load center.

Before purchasing replacement breakers, verify:
Load center model number
Approved breaker catalog numbers
Required amperage
Number of poles
Interrupting rating
Manufacturer specifications

Installing an incompatible breaker may affect equipment performance, violate electrical codes, or void the manufacturer’s warranty. The safest approach is to use Siemens-approved breakers in Siemens panels and follow the compatibility information provided on the panel label.

Evaluating your current electrical needs

Compatibility prevents installation delays so your electrical system matches OEM recommendations.

How to Choose the Right Siemens EQ Load Center

Choosing the correct Siemens EQ Load Center begins with evaluating your current electrical needs and future expansion plans.

First, determine the required service amperage for the building. Next, estimate how many branch circuits will be needed, remembering that additional circuits are often added years after construction. You’ll also need to decide whether your installation requires a main breaker or main lug configuration and whether the enclosure will be installed indoors or outdoors.

Confirm Siemens Circuit Breaker Compatibility before purchasing breakers. Taking a few extra minutes to verify compatibility helps prevent installation delays so your electrical system meets manufacturer recommendations.

What is a Siemens EQ Load Center?
A Siemens EQ Load Center is an electrical distribution panel that safely distributes incoming power to individual branch circuits while housing circuit breakers that protect wiring and connected equipment from overloads and short circuits.
What’s the difference between a Siemens EQ Breaker and a Siemens EQL Breaker?
A Siemens EQ Breaker generally protects individual branch circuits, while a Siemens EQL Breaker is typically a higher-amperage molded-case breaker used as the main breaker in compatible Siemens EQ load centers.
Can I install any breaker in a Siemens EQ Load Center?
No. Always verify Siemens Circuit Breaker Compatibility before installing replacement breakers. Using approved Siemens breakers helps ensure proper fit, safe operation, and code compliance.
Are Siemens EQ Load Centers suitable for commercial buildings?
Yes. Siemens EQ Load Centers are commonly used in residential applications as well as many light commercial projects including offices, retail stores, restaurants, and small industrial facilities.
How do I identify the correct replacement breaker?
Check the load center label for the approved breaker types, amperage ratings, and catalog numbers. Matching the manufacturer’s specifications helps ensure proper compatibility.
Can I expand an existing Siemens EQ Load Center?
Many Siemens EQ Load Centers include additional circuit spaces for future expansion, provided the panel has sufficient capacity and approved compatible breakers are used.
Why should I use Siemens breakers in Siemens panels?
Using Siemens-approved breakers helps ensure proper fit, reliable performance, electrical code compliance, and continued manufacturer support while reducing the risk of compatibility issues.
