If you’re replacing Eaton circuit breakers and looking for reliable circuit protection for light duty commercial or residential electrical load centers, take a look at Eaton’s CH Breaker type . As a distributor or end-user, understanding the key details about these breakers can streamline selection and installation.

What Are Eaton CH Circuit Breakers?

Eaton Type CH breakers provide good home circuit protection. They are designed to protect electrical circuits against overloads and short circuits, increasing safety and dependability. Eaton CH breakers standout out for their sturdy copper bus connections and prominent tan handles, making them easy to recognize and control.

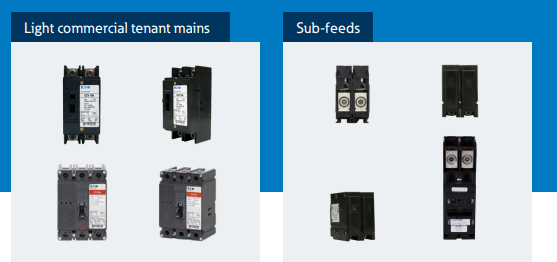

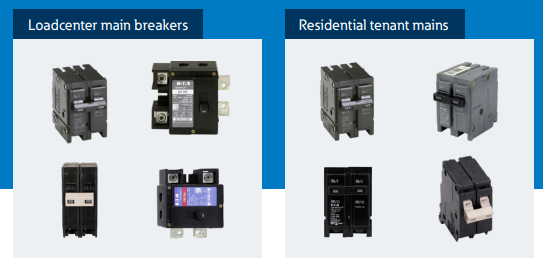

Breaker options for residential/light commercial tenant or multi-building applications

Types and Key Features of Eaton CH Circuit Breakers

Need Help with Breaker Installation? Here’s a handy table covering the primary Eaton CH breaker types and some popular models:

Breaker Type	Amperage	Voltage	Popular Models
Standard CH Breaker	15–100 A	120/240 VAC	CH120
Eaton CH 100 Amp Breaker	100 A	120/240 VAC	CH2100
Eaton CH GFCI Breaker	15–60 A	120/240 VAC	CHFGF120
Eaton CH AFCI Breaker	15–20 A	120 VAC	CHFCAF120
Plug-on Neutral AFCI Breaker	15–20 A	120 VAC	CHFCAF120PN
Eaton CH Surge Breaker	15–60 A	120/240 VAC	CHSPT2ULTRA
Dual Function AFCI/GFCI Breaker	15–20 A	120 VAC	CHFAFGF120

These breakers provide clear trip indicators, easy installations, and specialized protection for applications.

Advantages of Choosing Eaton CH Breakers

Eaton CH breakers are popular for several reasons:

Safety Enhancements: Breakers like Eaton CH GFCI breaker and Eaton CH AFCI breaker provide important safety against electrical hazards.
Convenience and Installation Ease: The plug-on neutral AFCI breaker eliminates pigtails, reducing installation time.
Long-lasting Durability: Built to last with copper bus connections for good performance and reliability.
Clear and Easy Troubleshooting: Visible trip indicators simplify diagnostics and maintenance.

Applications of Eaton CH Circuit Breakers

Here’s how Eaton CH breakers address your specific electrical protection needs:

Breaker Type	Application	Benefit
Standard CH Breaker	General residential use	Cost-effective protection
Eaton CH 100 Amp Breaker	Main residential circuits, HVAC	Robust capacity for large loads
Eaton CH GFCI Breaker	Kitchens, bathrooms, outdoors	Protects against electrical shock in wet areas
Eaton CH AFCI Breaker	Living areas, bedrooms	Reduces risk of fires from arc faults
Plug-on Neutral AFCI Breaker	New residential construction	Quick, clean, and safe installations
Eaton CH Surge Breaker	Whole-home surge protection	Guards sensitive electronics from voltage spikes
Dual Function AFCI/GFCI Breaker	Comprehensive home protection	Combines arc and ground fault protection

Eaton CH Breaker Maintenance Tips and Troubleshooting

Choosing the right breaker for your Eaton load centers is straightforward. Eaton provides clear compatibility guidelines in their Eaton miniature circuit breaker catalog. Always reference Eaton’s compatibility chart for fit and performance. Maintain your Eaton CH breakers with these handy tips:

Regularly check your Eaton type CH breaker for visible damage or wear.
Perform monthly tests on Eaton CH GFCI breakers and AFCI breakers to confirm needed functionality.
Use the Eaton miniature circuit breaker catalog for the right replacements and specifications checks.

Routine maintenance and awareness help extend your Eaton CH Circuit Breaker breakers’ lifespan and keep your electrical system

What to Know About CH Breakers

Can I use an Eaton CH breaker in other brand load centers?

Eaton CH breakers are specifically designed for compatibility with Eaton CH load centers. Always consult Eaton’s compatibility chart before mixing brands.

What’s the main difference between Eaton CH and BR breakers?

CH breakers use copper bus connections for better conductivity and durability; on the other hand, Eaton BR Type breakers are more economy-oriented with aluminum connections.

Do all CH breakers have trip indicators?

Most modern Eaton CH breakers include clear trip indicators, helping quickly identify issues.

Why should I choose a dual-function AFCI/GFCI breaker?

Dual-function breakers simplify installations by offering combined arc fault and ground fault protection in a single breaker.

What is a plug-on neutral breaker?

These breakers eliminate the need for a neutral pigtail connection, giving you faster, neater installations.

With this guide, you’re ready to choose, install, and maintain your Eaton CH breakers.
