New Product Launch – PLC: Allen Bradley 1756-IF8 Series A

Reading Time: 2 minutes


Hey there Contractors and fellow Service Professionals!

Today we are covering the Allen Bradley 1756-IF8 Series A PLC.

This is a ControlLogix Current/Voltage Analog Input Module with 8 Poles (36-Pin). Chassis mounting type.

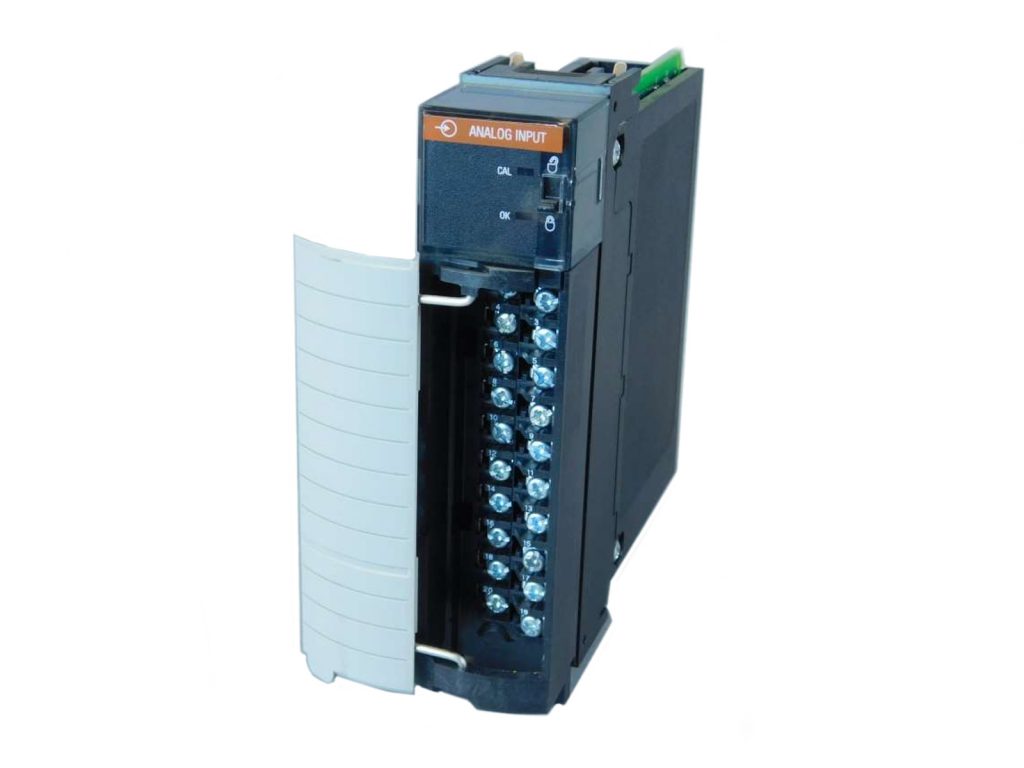

Allen Bradley 1756-IF8 ControlLogix Input Module

When this 1756-IF8 ControlLogix is operating in 2-Channel High Speed mode, only channels 0 and 2 can be used. It uses one of the following RTBs: 1756-TBCH 36 position Cage clamp RTB or 1756-TBS6H 36 position Spring clamp RTB. The extended depth cover (1756-TBE) can be used for applications with heave gauge wiring.

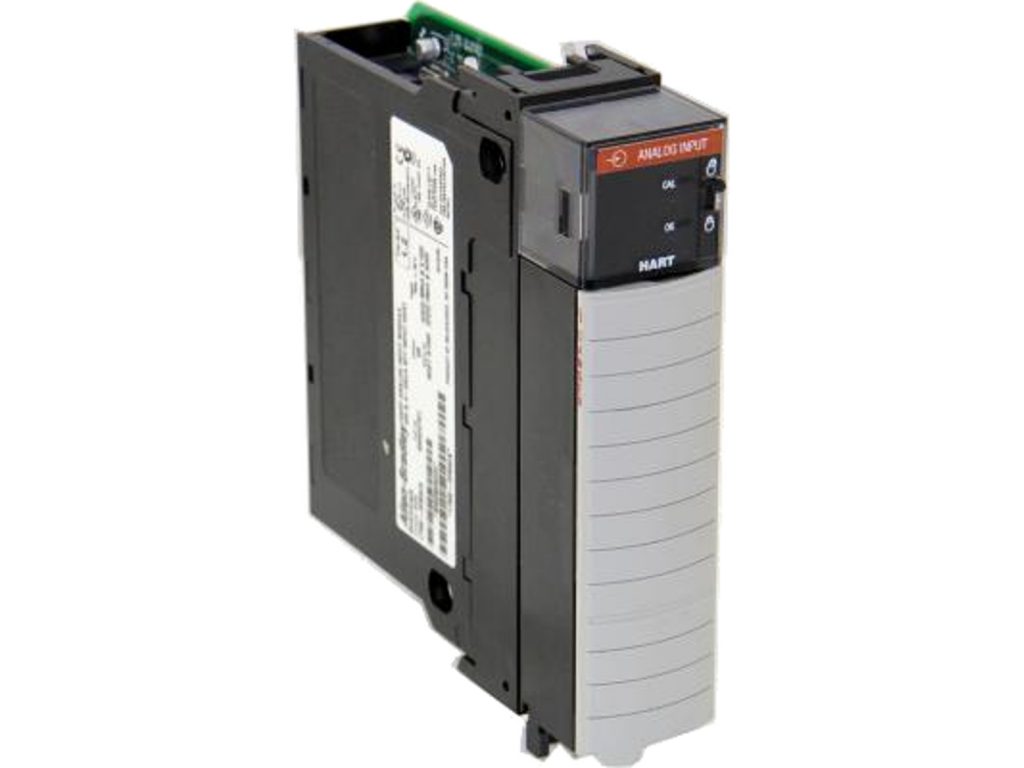

Allen Bradley 1756-IF8 ControlLogix Voltage/Current Analog Input 36-Pin

________________________________________

Now onto the Specifications in table format…

Allen Bradley 1756-IF8 Series A
Number of Inputs8 Single-Ended, 4 Differential,
2 High-Speed Differential
Input Range+/- 10.25V (15 bits plus sign bipolar),
0-10.25V (16 bits),
0-5.125V (16 bits),
0-20.5mA (16 bits)
Data FormatInteger Mode (Left justified, 2s complement),
Floating Point IEEE 32 bit
Input ImpedanceVoltage: >1 MΩ
Current: 249 MΩ
Module ErrorVoltage: 0.1%
Current: 0.3%
Backplane Current150 mA at 5.1 VDC
40 mA at 24 VDC

________________________________________

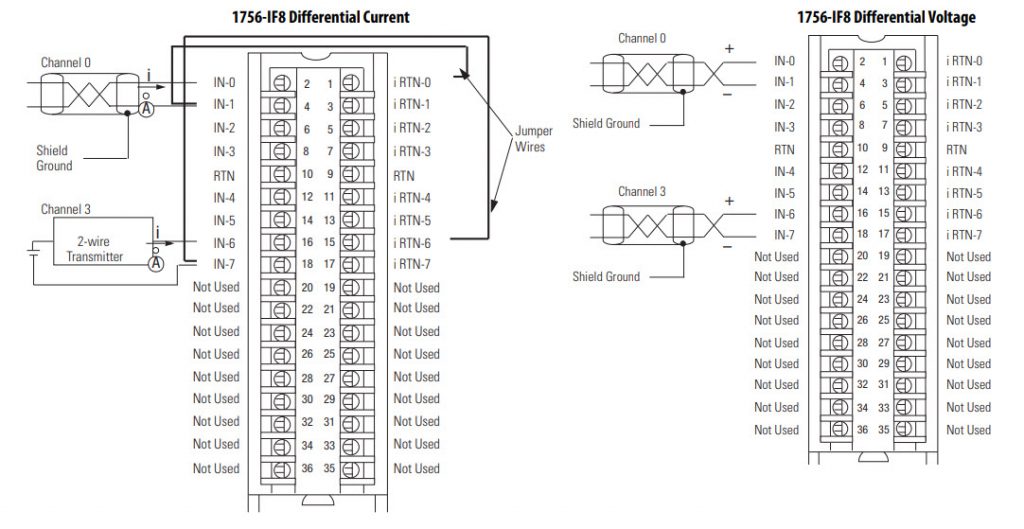

1756-IF8 ControlLogix Module – Differential Current / Voltage

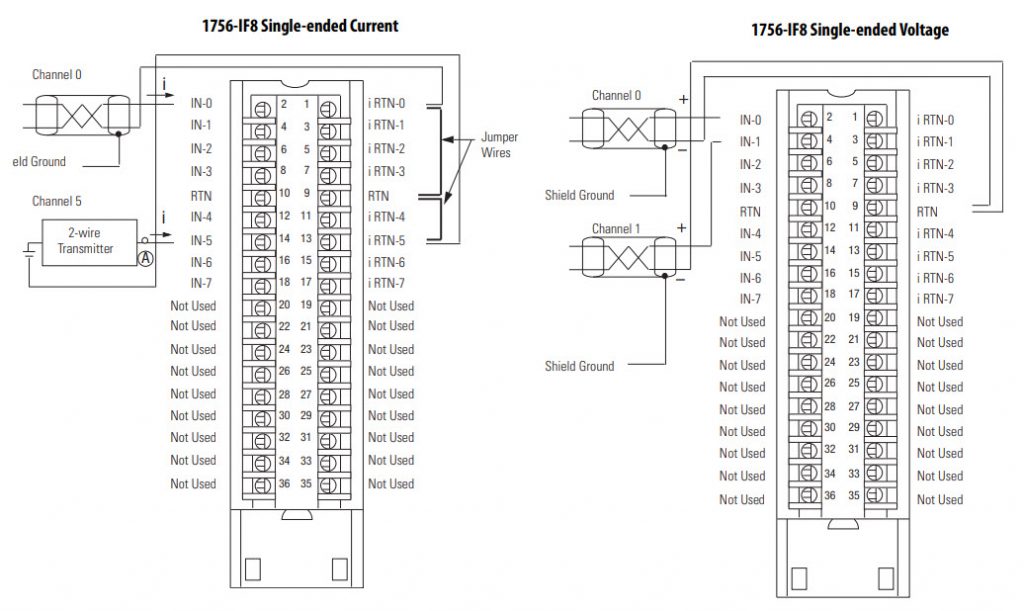

Allen Bradley 1756-IF8 ControlLogix Module – Single-ended Current / Voltage

This ControlLogix module supports on-board data alarming, scaling to engineering units, real-time channel sampling, IEEE 32-bit floating point or 16-bit integer data formats.
