Today we are covering the Allen Bradley 1746-P2 Series C PLC.
This is a power supply, which we all know is the heart PLCs. Needless to say, all PLCs require a power supply in order to operate. This is why we are kicking off our PLC blog series with this incredible 1746-P2 Series C!

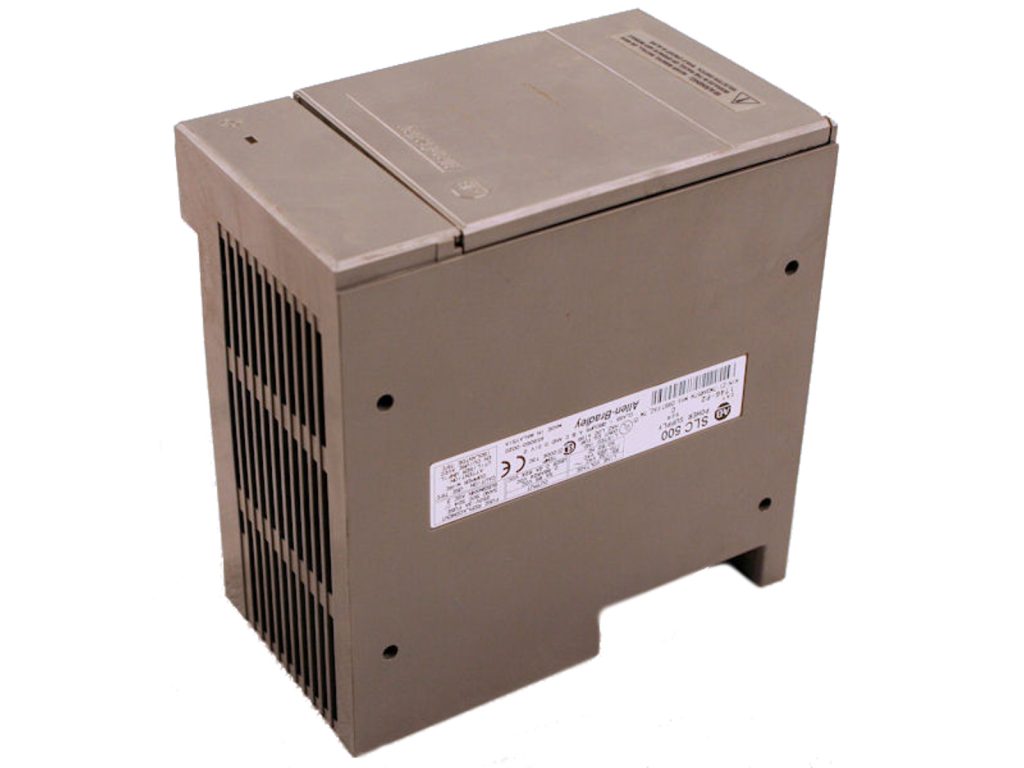

Allen Bradley 1746-P2 SLC 500 Power Supply
This particular one is a 500 Rack Mount Power Supply. The terminals on this power supply provide an isolated, non-fused 200 mA 24 VDC power. This item must be mounted directly on the left end of the 1746 Input / Output (I/O) Chassis.
SLC 500 Power Supply
The 1746-P2 has a selectable operation mode of 120V or 240V, which can be chosen by setting a jumper. This does not require any special wiring.
This Series, as well as other 1746-P2 power supplies, have LED that indicates proper supply power.
________________________________________
Now let’s get down to the nitty gritty of Specifications…
| Allen Bradley 1746-P2 Series C | |
|---|---|
| Nominal Input Voltage | 120 VAC or 220 VAC |
| Input Voltage Range | 85 VAC – 132 VAC |
| Max InRush Current | 20 Amps |
| User Output Current | 0.2 Amps at 24 VDC |
| User Output Voltage Range | 18 VDC – 30 VDC |
| Backplane Output Current | 5 Amps at 5 VDC | 0.96 Amps at 24 VDC |
| Frequency | 47 Hz – 63 Hz |
| Fuse | 3 Amps, 250 Volts |
| Wiring | Max (2) 14 AWG Wires per Terminal |
| Location | 1746 Chassis Side |
| Dimensions | 5.5 in. H x 2.9 in. W x 5.7 in. W |
| Weight | 2.5 lb |
Allen Bradley SLC 500 Controllers are available for applications from small-scale equipment to entire production lines.
