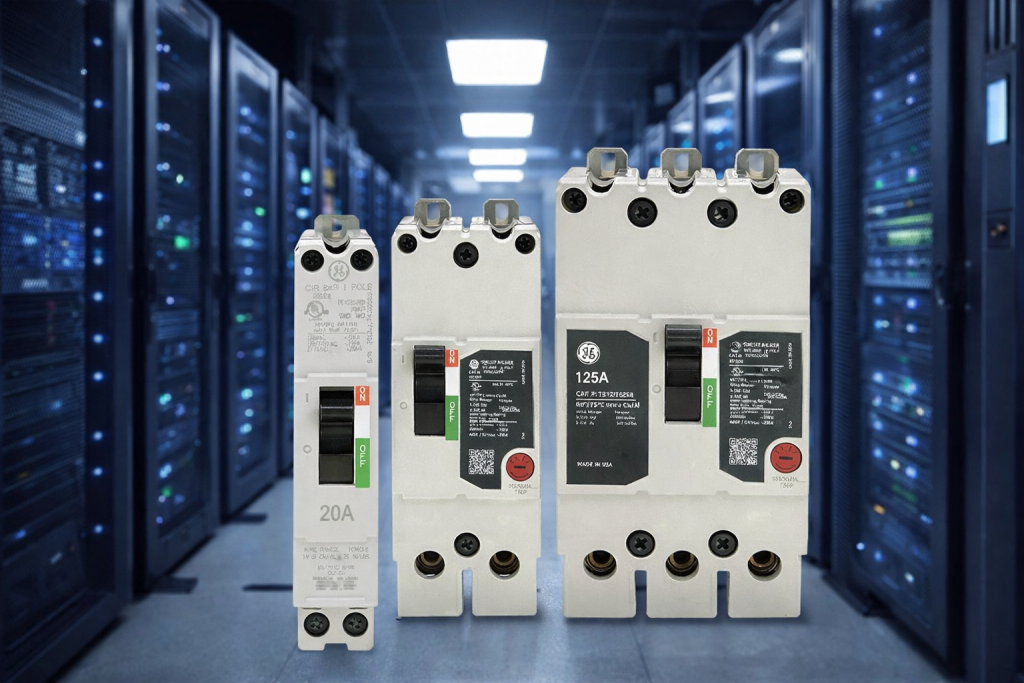

TEY Lighting Panel Circuit Breakers
When designing or maintaining a lighting panel, you want circuit protection that is simple, reliable, and specifically designed for lighting loads. You don’t need extra complexity; you only need breakers that are simple to install, work well together, and hold up when a failure happens.
This is where TEY lighting panel circuit breakers come in. These ABB Molded Case breakers are specifically designed for lighting panelboard applications, providing low-cost, high-performance circuit protection for commercial and light-industrial environments.
If you work with ABB lighting panelboards, TEY breakers are one of the most common and reliable options you’ll see.
What Are TEY Lighting Panel Circuit Breakers?
TEY lighting panel circuit breakers are thermal-magnetic, molded-case breakers designed to make branch circuits in lighting panels more safe. They are seen in commercial buildings, schools, hospitals, retail spaces, and industrial sites.
Unlike bigger power breakers, TEY breakers are designed for lighting panelboards and branch circuit loads, giving you a good balance of interrupting capability, space and cost.
Key characteristics include:
- Thermal-magnetic trip units for predictable protection
- Available in 1-, 2-, and 3-pole configurations
- Multiple interrupting ratings to match fault levels
- Compact design for high circuit density in lighting panels
For contractors and facility managers, that means fewer headaches during installation and reliable performance over the life of the panel.
Key Features of ABB Lighting Panelboard Breakers (TEY Series)
When you’re selecting ABB TEY Lighting Breakers, TEY models have features that directly support installations.
- Multiple Short-Circuit Ratings
TEY breakers are available with interrupting ratings for a range of commercial and industrial settings, helping you match breaker capability to available fault current without overspending. - Ambient-Compensated Performance
The thermal-magnetic design helps maintain consistent trip performance even as ambient temperatures change inside a panelboard. - Accessory Flexibility
You can add common breaker accessories like shunt trips, undervoltage releases, and auxiliary switches, great for emergency lighting, controls or monitoring applications. - Compact Footprint
TEY breakers allow high circuit counts in lighting panels, making them a practical choice where space is limited.
These features simplify selecting circuit breaker protection for lighting panels that are reliable.
Circuit Protection for Lighting Panels in Applications
Lighting panels have a specific role — distributing power to branch circuits that feed lighting fixtures, controls, and small auxiliary loads. TEY lighting panel circuit breakers are designed to match that role.
You’ll find ABB TEY Lighting Breakers used in:
- Commercial office buildings
- Healthcare and education facilities
- Warehouses and manufacturing plants
- Retail centers and mixed-use developments
- Data center lighting systems
Because lighting panels are often spread throughout a facility, reliability and ease of service are critical. TEY breakers deliver both, making troubleshooting and replacement easier.

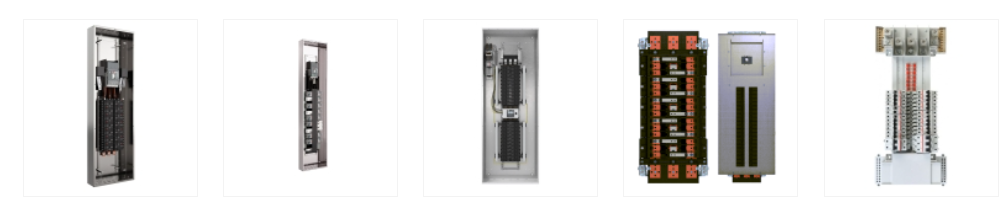

Where TEY Breakers Fit Within ABB Lighting Panelboards
OEM and Engineered Panel Solutions
For OEMs and custom panel builders, TEY breakers give predictable specs with broad availability, which helps reduce design risk and lead time. So, if you’re working with ABB lighting panelboards, TEY breakers are a safe choice.
How to Select the Right TEY Lighting Panel Circuit Breaker
- Amperage Rating – Match the breaker to your lighting branch circuit load
- Number of Poles – Single-pole for typical lighting circuits, multi-pole for shared or three-phase loads
- Voltage Rating – Commonly used on 120/208 V and 277/480 V systems
- Interrupting Rating – Select based on available fault current at the panel
- Accessories Needed – Shunt trip, UV release, or auxiliary contacts if required
Selecting correctly means long-term safety and less tripping.
TEY Lighting Panel Circuit Breaker Selection Table (Reference)
| Specification | TEY Breaker Options | Typical Use Case |
| Amperage Range | 15A – 125A | Lighting branch circuits |
| Poles | 1P, 2P, 3P | Single-phase and three-phase lighting |
| Voltage Ratings | 120/240 V, 277/480 V AC | Commercial lighting systems |
| Interrupting Rating | Up to 65 kA @ 480 V Up to 100 kA @ 240 V | High-fault commercial environments |
| Trip Type | Thermal-Magnetic | Overload & short-circuit protection |
| Mounting Style | Bolt-on / Unit-mount | ABB lighting panelboards |
| Available Accessories | Shunt trip, undervoltage release, auxiliary switch | Emergency & monitored circuits |
Why Contractors, End Users Use TEY Lighting Panel Breakers
- You get reliable ABB engineering without unnecessary complexity
- You can easily match breaker ratings to real-world lighting loads
- You benefit from broad compatibility with ABB lighting panelboards
- You reduce downtime with proven, available components
For end users, that translates into safe lighting systems, fewer disruptions, and easier future upgrades.
Summary: A Practical Choice for Lighting Panel Protection
When it comes to circuit protection for lighting panels, TEY breakers do exactly what you need them for. They’re dependable, flexible, and designed to integrate seamlessly into ABB lighting panelboard systems.
Whether you’re designing a new commercial building or upgrading an existing lighting distribution system, TEY lighting panel circuit breakers are a smart, proven choice trusted by contractors and facility owners.
Frequently Asked Questions (FAQ)
What makes TEY lighting panel circuit breakers different from other breakers?
TEY breakers are designed specifically for lighting panelboards, featuring dependable thermal-magnetic trip units and a range of short-circuit interrupting ratings to match lighting panel requirements.
What amp ranges are available with TEY breakers?
TEY breakers are available from 15A to 125A and are offered in 1-, 2-, and 3-pole configurations to support a wide range of lighting circuits.
Can I fit accessories like shunt trips or auxiliary contacts on TEY breakers?
Yes. TEY breakers support common accessories such as shunt trips, undervoltage releases, and auxiliary switches, making them suitable for emergency lighting and monitored circuits.
What short-circuit ratings do TEY breakers offer?
TEY breakers provide interrupting ratings up to 65 kA at 480/277 VAC and up to 100 kA at 240 VAC, depending on the breaker configuration.
Are TEY breakers suitable for unit-mount panel installations?
Yes. TEY breakers can be used in unit-mount, lug-lug installations when installed on the appropriate mounting base.
Which panelboards work best with TEY breakers?
TEY breakers integrate well with standard lighting panelboards as well as modular lighting panel systems, making them a versatile choice for many applications.
How do I choose between TEY and other circuit breaker families?
Choose TEY when you need a cost-effective lighting branch circuit protection solution using thermal-magnetic trip units and multiple interrupting ratings without extra complexity.
Glossary of Terms
Key terms related to TEY lighting panel circuit breakers:
Thermal-Magnetic Trip — A breaker trip mechanism that responds to overloads using heat (thermal) and to short circuits using magnetic force.
Short-Circuit Rating — The maximum fault current a breaker can safely interrupt without sustaining damage.
Pole (1P / 2P / 3P) — Refers to the number of circuits or phases a breaker can interrupt simultaneously.
Ambient Compensating — A breaker design feature that helps maintain consistent trip performance across varying ambient temperatures.
Unit-Mount Installation — A breaker mounting method where the breaker is installed into a panel using a mounting base for direct electrical connection.
Shunt Trip — An accessory that allows a circuit breaker to be tripped remotely using an external electrical signal.
Undervoltage Release — A breaker accessory that trips the breaker when system voltage drops below a predetermined level.
Auxiliary Switch — A device that provides a secondary electrical signal indicating the breaker’s ON/OFF or trip status.
Lighting Panelboard — A distribution panel designed primarily to supply and protect lighting branch circuits in commercial and industrial facilities.
Example TEY Lighting Panel Breaker Models
| Part Number | Attributes |
| TEYD1030B | 30A, 1-Pole, 480/277 VAC, Bolt-On, Molded Case |
| TEYH3100B | 100A, 3-Pole, 480/277 VAC, Bolt-On, Molded Case |
| TEYL3060B | 60A, 3-Pole, 480/277 VAC, Bolt-On, Molded Case |
| TEYL3080B | 80A, 3-Pole, 480/277 VAC, Bolt-On, Molded Case |
| TEYL3125B | 125A, 3-Pole, 480/277 VAC, 65kA @ 480/277V, Molded Case |
See the ABB Circuit Breakers Catalog page.
