ABB EntelliGuard G Low-Voltage Switchgear Breaker

ABB EntelliGuard G breakers for dependable, intelligent protection for rugged industrial electrical systems.

Need Miniature Breakers?

Get Mini Breaker Quote
Table Of Contents
  1. Low-Voltage Power Circuit Breakers for Switchgear
  2. Why Low-Voltage Power Breakers Matter in Switchgear
  3. ABB EntelliGuard G Features and Benefits
  4. Popular ABB EntelliGuard G Products
  5. Selective Coordination and Arc Flash Protection
  6. Built for Heavy-Duty Switchboard Power Distribution
  7. Advanced Trip Units and System Intelligence
  8. EntelliGuard Switchgear Breaker FAQ
  9. ABB EntelliGuard Glossary

Low-Voltage Power Circuit Breakers for Switchgear

ABB EntelliGuard G insulated case breakers give you reliability when designing power distribution equipment; breaker reliability is a minimum requirement. It doesn’t matter if you’re installing a new electrical room, replacing an old switchboard, or protecting important loads, the breaker you pick has a direct impact on safety, uptime, and long-term maintenance. This is where ABB EntelliGuard G circuit breakers come in.

EntelliGuard G breakers are designed for tough commercial and industrial situations, giving dependable protection, greater system intelligence, and the flexibility needed to create safer, longer-lasting electrical systems.

Why Low-Voltage Power Breakers Matter in Switchgear

The breaker that protects custom switchgear lineups and switchboards is critical to electrical system maintenance and operation. Low voltage power circuit breakers for switchgear don’t just interrupt faults; they coordinate with upstream and downstream equipment and limit arc flash energy to keep your facility running.

ABB EntelliGuard G breakers, with ratings from 400A to 6000A are designed to handle big feeders, main breakers, and applications found in hospitals, manufacturing plants, data centers, and mission-critical environments.

ABB EntelliGuard G Features and Benefits

When you install EntelliGuard G breakers, you’re getting more than just overcurrent protection. You’re getting a platform designed around real-world electrical challenges.

Key benefits include:

– High interrupting ratings to safely clear severe faults
– Fixed and draw-out designs for flexible installation
– Compliance with ANSI, UL, and IEC standards
– Proven performance in demanding industrial environments

These features make ABB EntelliGuard G circuit breakers a good choice for reliability and compliance.

Model NumberDescription
GN08ND800A ABB EntelliGuard G low-voltage power circuit breaker, 3-pole, draw-out, LSIG trip, for switchgear and switchboards.
GN10ND1000A EntelliGuard G breaker, 3-pole, draw-out construction with electronic trip unit for feeder protection.
GN16NDEERXX4CLXL4X6V1600A EntelliGuard G power circuit breaker, draw-out, electric operator, LSIG protection, 600V class.
GB16N2S1600A ABB EntelliGuard G breaker commonly used as a feeder breaker in low-voltage switchboards.
GB32L4XXMFXXXX3200A EntelliGuard G low-voltage power breaker with advanced trip unit and metering capability.
GB40L4XXMFXXXX4000A EntelliGuard G breaker designed for main breaker applications in large switchgear lineups.
GB50L4XXMFXXXX5000A EntelliGuard G power circuit breaker for heavy-duty industrial power distribution systems.
GB60L4XXMFXXXX6000A ABB EntelliGuard G breaker, high interrupting rating, commonly used as a main or tie breaker.
G2C06L4XXXRXXXX600A EntelliGuard electronic trip unit configuration with LSIG protection for 600V systems.
GW104L4X8XRXXXX400A EntelliGuard G rating plug and trip configuration used in switchboard feeder applications.

Selective Coordination and Arc Flash Protection

Selective coordination is more than a coding requirement; it’s essential when you want the breaker nearest to the fault to trip first, without shutting down the full system.
EntelliGuard G breakers allow selective coordination in arc flash protection breakers with advanced trip unit settings that give you fine-tuned response times and current thresholds.

– Limiting the scope of outages
– Improved personnel safety
– Reduced arc flash incident energy
– For facilities where uptime and worker safety are important, this level of control makes a big difference.

Built for Heavy-Duty Switchboard Power Distribution

Rugged construction and high short-circuit ratings gives confidence that your system is protected — today and years down the road.

If you’re dealing with large electrical loads, you need breakers that can keep up. Switchboard power distribution breakers 400-6000A like EntelliGuard G are made for main and feeder applications where fault currents can be extreme.

These breakers are used in:

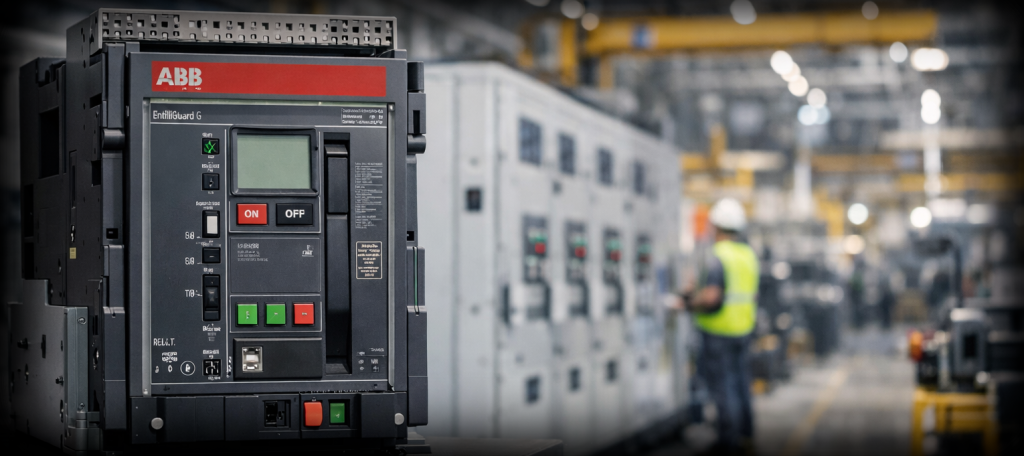

Industrial manufacturing facilities
Healthcare and hospital electrical rooms

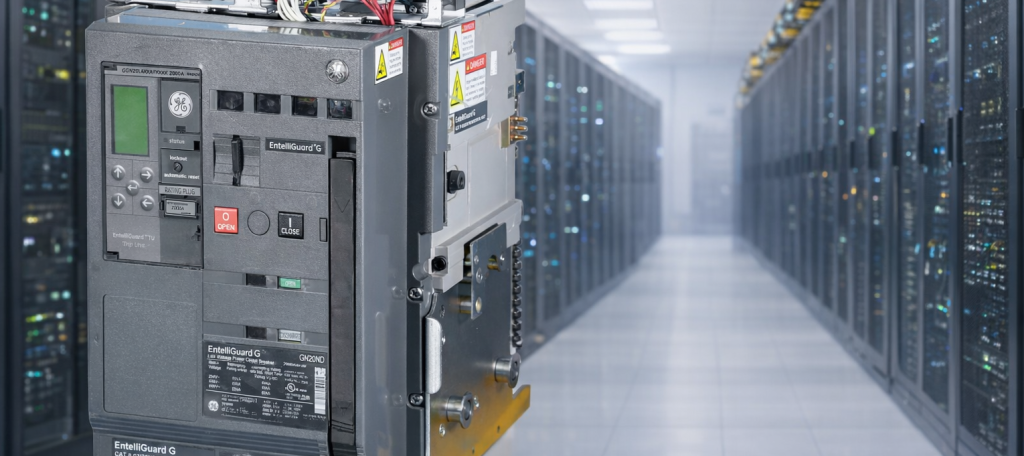

Data centers and critical infrastructure
Large commercial buildings

Advanced Trip Units and System Intelligence

Modern power systems have visibility. EntelliGuard G breakers support industrial circuit breaker trip units and communications that help you monitor, analyze, and respond to electrical events. Depending on configuration, you can access:

– Real-time current and voltage data
– Event and fault history
– Communication protocols for power monitoring systems

This intelligence helps you diagnose issues faster, plan maintenance proactively, and integrate breakers into broader energy management situations.

EntelliGuard Switchgear Breaker FAQ

ABB EntelliGuard Glossary

[ Low Voltage Breaker Terms ][ Definition ]
Low voltage power circuit breakers for switchgearHigh-capacity breakers designed for low-voltage switchgear and switchboards
ABB EntelliGuard G Draw-Out BreakerBreaker designed so you can rack it in and out of its enclosure
Selective coordination arc flash protection breakersBreakers engineered to coordinate trips and reduce arc flash hazards
Switchboard power distribution breakers 400-6000ALarge-frame breakers used for high-current distribution systems
Industrial circuit breaker trip units and communicationsAdvanced electronic trip units with monitoring and communication capabilities
