FDB2020 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers

Item # FDB2020

FDB2020

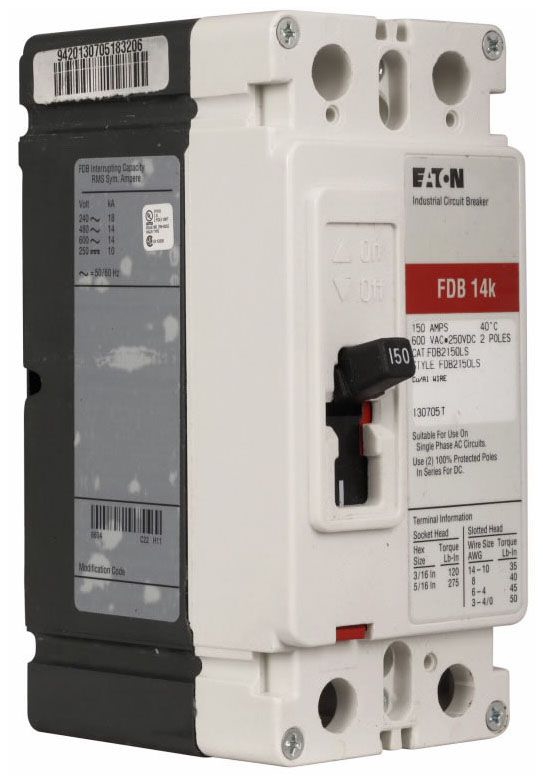

NOTE: Images are for Reference Only

Product Specifications

Type
FDB
Amperage
20
Poles
2
Voltage
600
Short Circ Int Cap
14kA@480V

FDB2020 Description

SERIES C F-FRAME MOLDED CASE CIRCUIT BREAKER 20A 2P CKT BRKR Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Features/Benefits:
All Eaton's F-Frame Circuit Breakers are HACR Rated; All Circuit Breakers 10 through 30 Amp are Suitable for HID (High Intensity Discharge) Use
Additional Information:
Non-Interchangeable Trip Circuit Breaker; Type Fixed Thermal Magnetic, Molded Case; Frame Type FD; Voltage Rating 600 Volt AC 50/60 Hertz, 250 Volt DC; Maximum AC Voltage Rating 600 Volt; Maximum DC Voltage Rating 250 Volt; Current Rating 20 Amp at 40 Deg C; Number of Poles 2; Interrupting Rating 18 Kiloamp at 240 Volt AC, 14 Kiloamp at 480/600 Volt AC, 10 Kiloamp at 250 Volt DC (UL), 18 Kiloamp at 220/240 Volt AC, 14 Kiloamp at 380/415/440/500 Volt AC, 10 Kiloamp at 250 Volt DC (IEC); Terminal Type Load; Size 2.75 Inch Width x 3.88 Inch Depth x 6 Inch Height; Approval UL 489, CSA C22.2; Application HACR, Switchboard; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 18a
