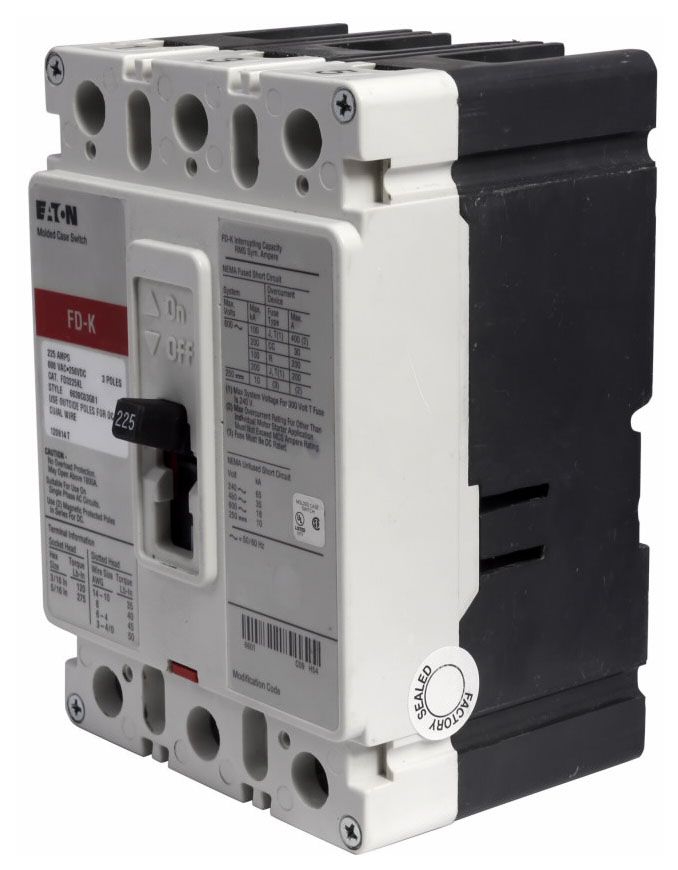

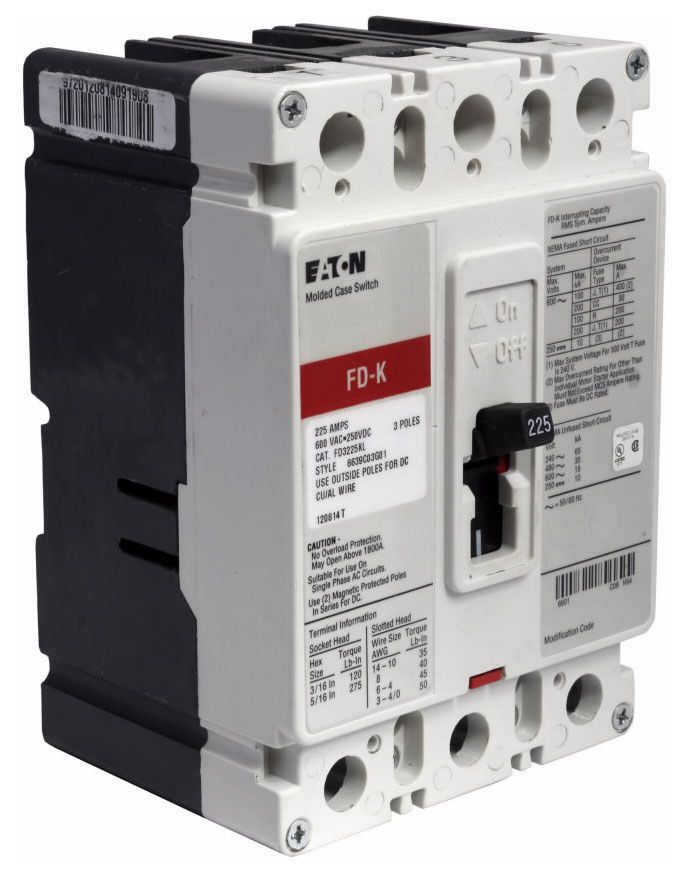

FD3225L Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers

Item # FD3225L

FD3225L
  • FD3225L
  • FD3225L
  • FD3225L

NOTE: Images are for Reference Only

Product Specifications

Type
FD
Amperage
225
Poles
3
Voltage
600
Short Circ Int Cap
35kA@480V

FD3225L Description

CHR; 225A; 3P; 600V; Type FD Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Features/Benefits:
All Eaton's F-Frame Circuit Breakers are HACR Rated; All F-Frame Circuit Breakers are Suitable for Reverse Feed Use
Additional Information:
600 VAC 50/60 Hz, 250 VDC, 225 A, 35/10 kA, 3-Pole, Line and Load Terminal, FD Frame, Thermal Magnetic, Molded Case, Non-Interchangeable Trip Circuit Breaker
