FD3025 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers

Item # FD3025

FD3025
  • FD3025
  • FD3025
  • FD3025

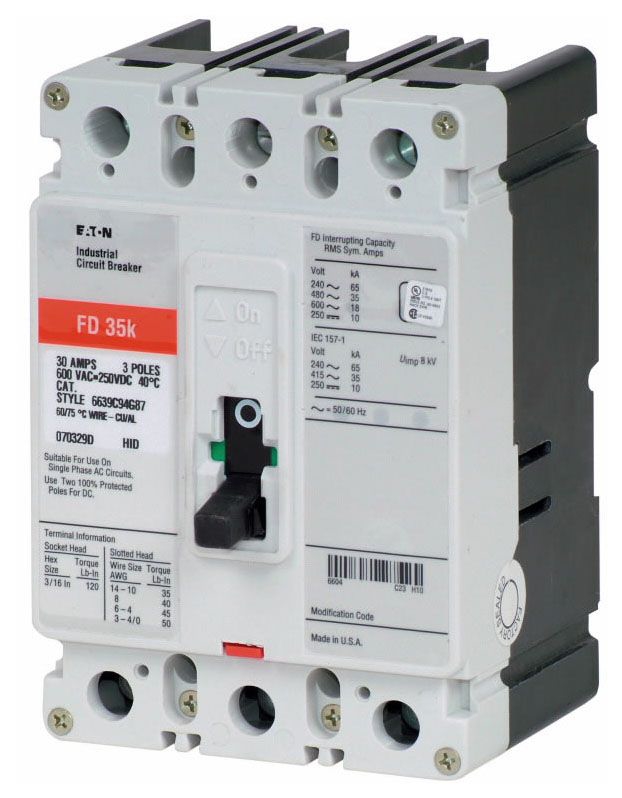

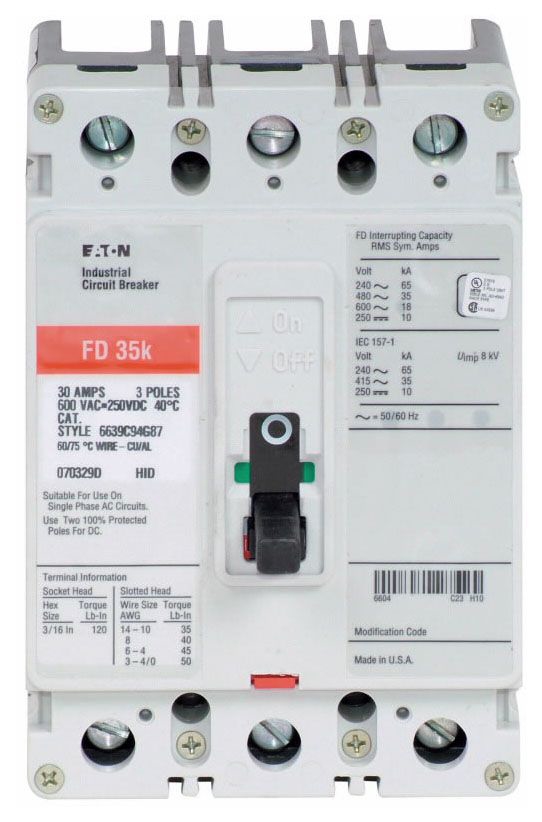

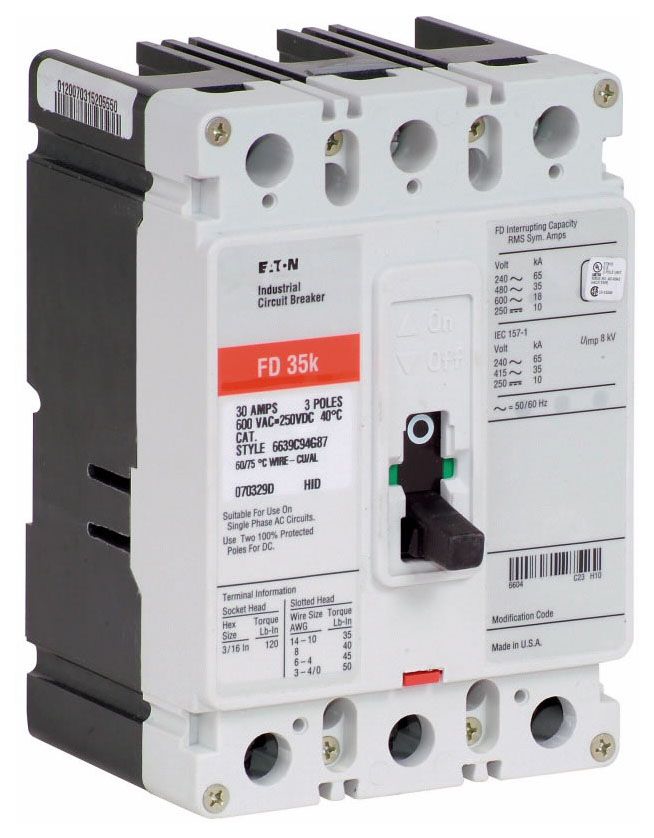

NOTE: Images are for Reference Only

Product Specifications

Type
FD
Amperage
25
Poles
3
Voltage
600
Short Circ Int Cap
35kA@480V
Configuration
Load Lugs

FD3025 Description

Eaton, Molded Case, Circuit Breakers, Type FD, 25A, 3P, 600 VAC, Load Lugs, Thermal Magnetic, Interrupting Current: 65 kA at 240 VAC / 35 kA at 480 VAC / 18 kA at 600 VAC / 10 kA at 250 VDC Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Features/Benefits:
All Eaton's F-Frame Circuit Breakers are HACR Rated; All Circuit Breakers 10 Through 30 Amperes are Suitable for HID (High Intensity Discharge) Use; All F-Frame Circuit Breakers are Suitable for Reverse Feed Use
Additional Information:
600 VAC 50/60 Hz, 250 VDC, 25 A, 65/35 kA Interrupt Rating, 3-Pole, F-Frame, Load Side Terminal, Fixed Thermal Magnetic, Molded Case, Non-Interchangeable Trip Circuit Breaker
