FD2045 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers

Item # FD2045

FD2045
  • FD2045
  • FD2045

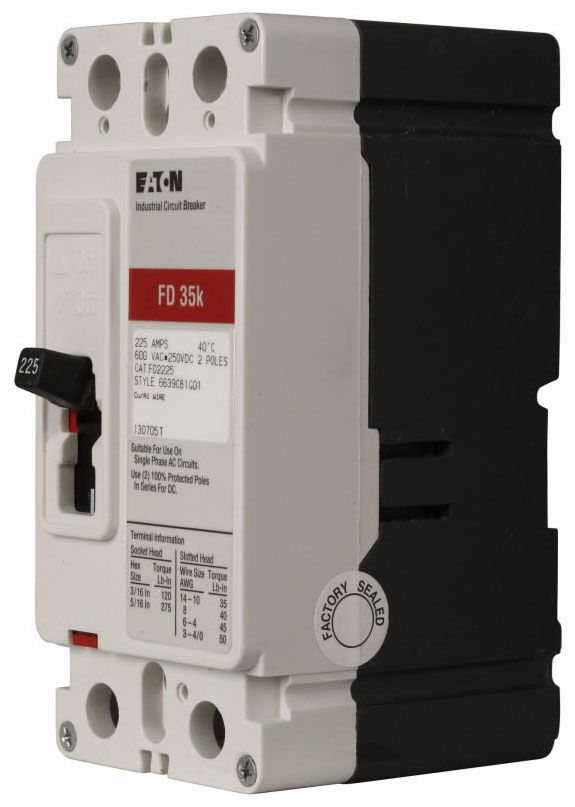

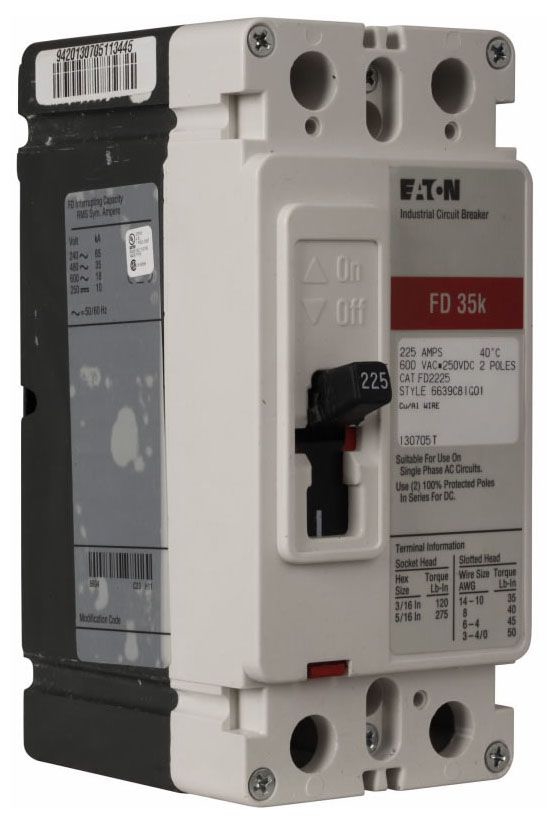

NOTE: Images are for Reference Only

Product Specifications

Type
FD
Amperage
45
Poles
2
Voltage
600
Short Circ Int Cap
35kA@480V

FD2045 Description

CHR; 45A; 2P; 600V; Type FD Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Additional Information:
Non-Interchangeable Trip Circuit Breaker; Type Fixed Thermal Magnetic, Molded Case; Frame Type FD; Voltage Rating 600 Volt AC 50/60 Hertz, 250 Volt DC; Maximum AC Voltage Rating 600 Volt; Maximum DC Voltage Rating 250 Volt; Current Rating 45 Amp at 40 Deg C; Number of Poles 2; Interrupting Rating 65 Kiloamp at 240 Volt AC, 35 Kiloamp at 480 Volt DC, 18 Kiloamp at 600 Volt AC, 10 Kiloamp at 250 Volt DC (UL), 65 Kiloamp at 220/240 Volt AC, 35 Kiloamp at 380/415/440 Volt DC, 18 Kiloamp at 500 Volt AC, 10 Kiloamp at 250 Volt DC (IEC); Terminal Type Load; Size 2.75 Inch Width x 3.38 Inch Depth x 6 Inch Height; Approval UL 489, CSA C22.2; Application HACR, Switchboard; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 22a
