FD1125 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers

Item # FD1125

FD1125
  • FD1125
  • FD1125

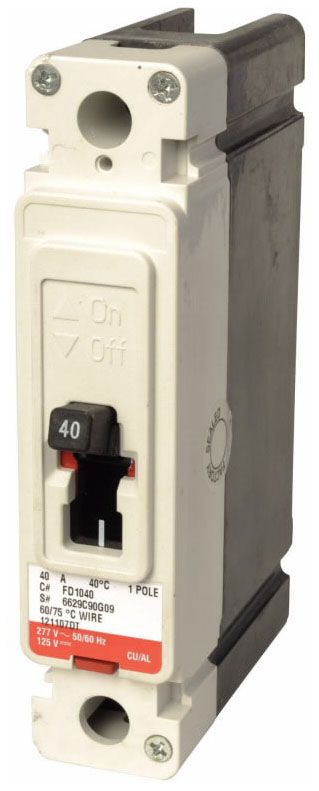

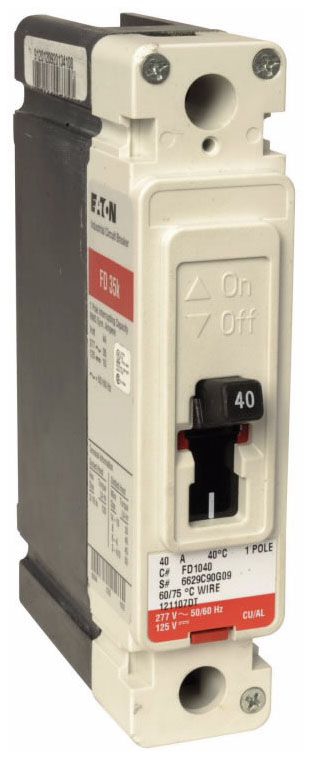

NOTE: Images are for Reference Only

Product Specifications

Type
FD
Amperage
125
Poles
1
Voltage
277
Short Circ Int Cap
35kA@277V

FD1125 Description

CHR; 125A; 1P; 277V; Type FD Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Additional Information:
Non-Interchangeable Trip Circuit Breaker; Type Fixed Thermal Magnetic, Molded Case; Frame Type FD; Voltage Rating 277 Volt AC 50/60 Hertz, 125 Volt DC; Maximum AC Voltage Rating 277 Volt; Maximum DC Voltage Rating 125 Volt; Current Rating 125 Amp at 40 Deg C; Number of Poles 1; Interrupting Rating 35 Kiloamp at 277 Volt AC, 10 Kiloamp at 125 Volt DC (UL), 35 Kiloamp at 220/240Volt AC, 10 Kiloamp at 125 Volt DC (IEC); Terminal Type Load; Size 1.38 Inch Width x 3.88 Inch Depth x 6 Inch Height; Approval UL 489, CSA C22.2; Application HACR, Switchboard; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 13a
