FBV36TE040R General Electric / GE Molded Case Circuit Breakers

Item # FBV36TE040R

FBV36TE040R

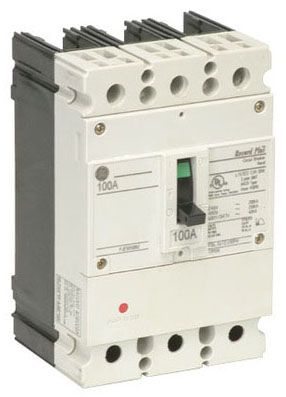

NOTE: Images are for Reference Only

Product Specifications

Type
FBV
Amperage
40
Poles
3
Voltage
600

FBV36TE040R Description

40A MCCB 3P 600Y347 Molded Case Circuit Breakers from General Electric / GE

Features and Benefits

Features/Benefits:
Record Plus Represents the Very Latest in Molded Case Circuit Breaker Design; Utilizing Design Features Such as Double-Break Rotary Contact Structures and Advanced Ablative Materials to Enhance Interruption; Record Plus is Capable of Interrupting Ratings up to 200 Kiloamp (FB Max is 150 Kiloamp); High KAIC Ratings, Selective Coordination, Reduced Arc Flash Energy and Current Limitation Embody the Core Design Principles of Record Plus; Suitable for Reverse Feed; Push-TO-Trip Button for Manual Actuation; Thermal-Magnetic Trip System-not Affected by Mounting Orientation; Trip-Free Mechanism Opens Breaker Contacts Under Overcurrent Conditions, Even with Breaker Handle Held in ON Position
Additional Information:
240/480 VAC 600 Star/347 VAC 50/60 Hz, 40 A, 65 kA at 240 VAC, 35 kA at 480 VAC, 3-Pole, FB100 Frame, LI Trip Function, Molded Case, Fixed Thermal Magnetic, Current Limiting, Non-Interchangeable Circuit Breaker
