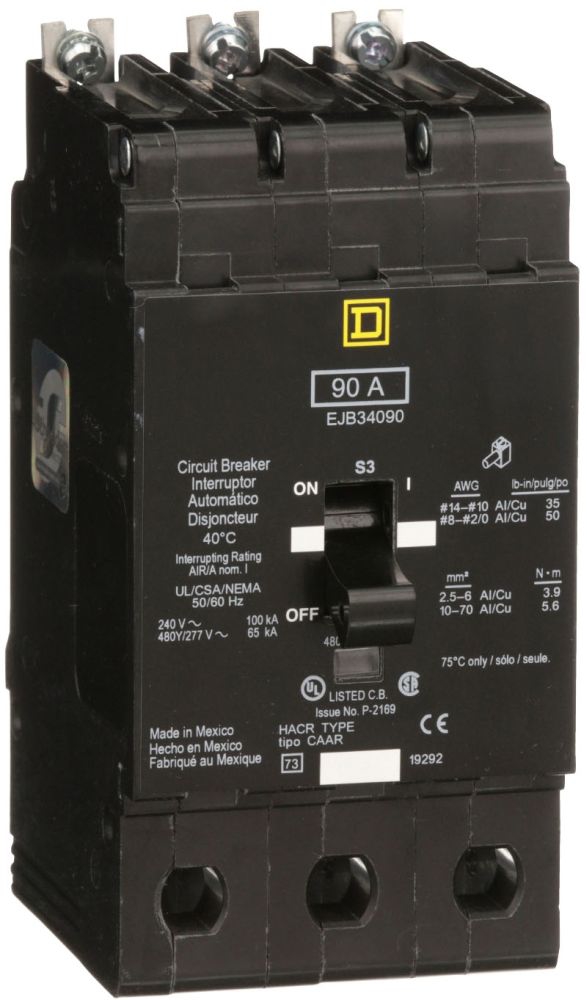

EJB34090 Square D / Schneider Electric Miniature Circuit Breakers

Item # EJB34090

EJB34090

NOTE: Images are for Reference Only

Product Specifications

Type
EJB
Amperage
90
Poles
3
Voltage
480Y/277
Short Circ Int Cap
65kA@480V
Mounting Type
Bolt-On

EJB34090 Description

Square D, Circuit Breaker, Miniature, E-Frame, 90A, 3P, 480Y/277VAC, Bolt-On, 14-2/0 AWG Al/Cu, Thermal Magnetic, Interrupting Current 65kA at 480Y/277VAC / 100kA at 240VAC, For NF Panelboards Miniature Circuit Breakers from Square D / Schneider Electric

Features and Benefits

Features/Benefits:
Short Circuit/Overload Protection; HACR Rated; RoHS/REACH Compliant; Mercury-Free
Additional Information:
480 Star/277 VAC, 90 A, 65 kA, 3-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
