America's First Call for Commercial / Industrial Circuit Breakers & Other Electrical Parts.

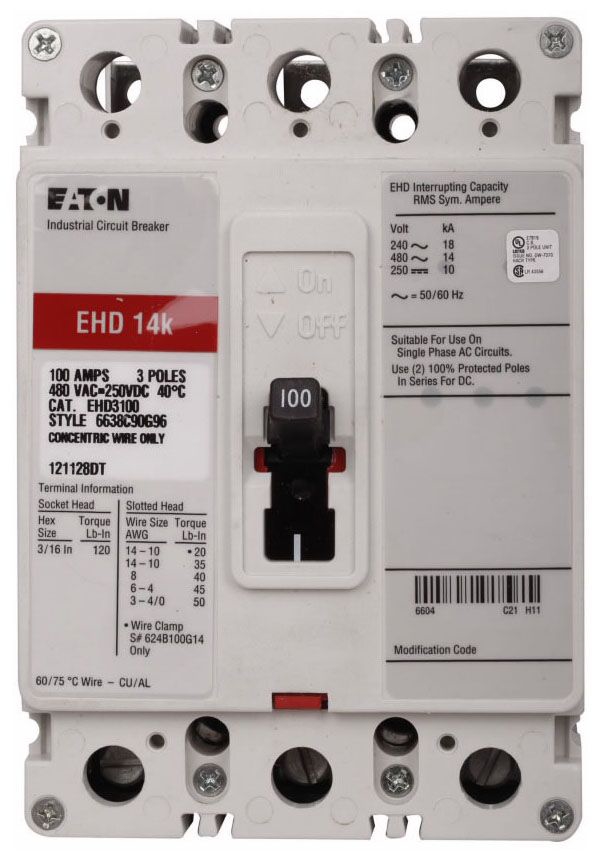

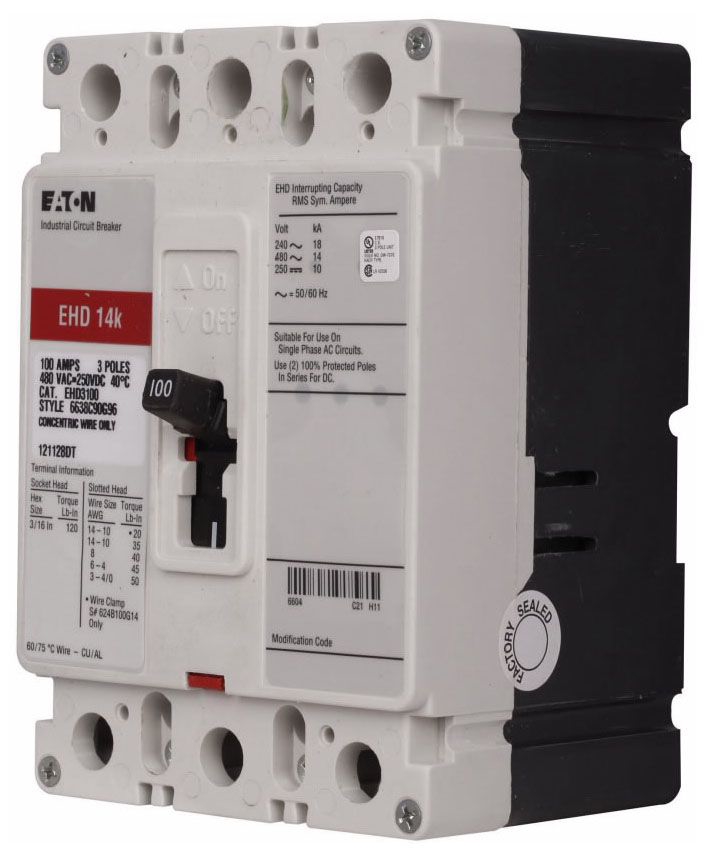

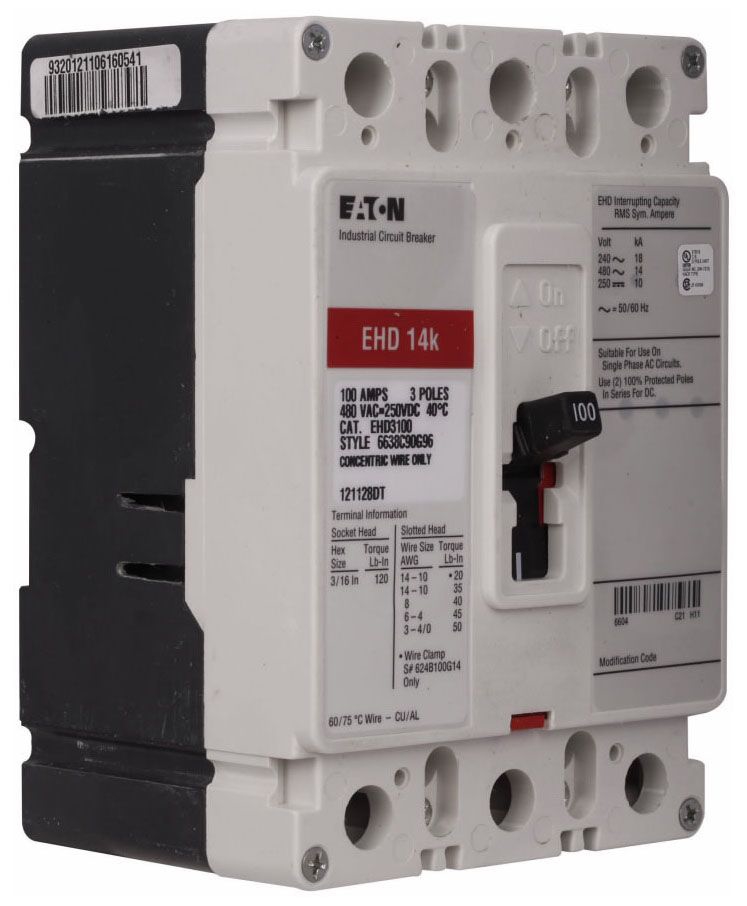

EHD3010 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers
Item # EHD3010

EHD3010
EHD3010
EHD3010

NOTE: Images are for Reference Only

Product Details and Specifications

Type EHD
Amperage 10
Poles 3
Voltage 480
Short Circ Int Cap 14kA@480V

EHD3010 Description

SERIES C F-FRAME MOLDED CASE CIRCUIT BREAKER 3P 10A CB Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$162.74

Out of stock

$211.56

Out of stock

Call For Best Price

Out of stock

Call For Best Price

Call for availability

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

480 VAC 50/60 Hz, 250 VDC, 10 A, 14/10 kA, 3-Pole, Standard Pressure Line and Load Terminal, FD Frame, Molded Case, Thermal Magnetic, Non-Interchangeable Trip Breaker
Fixed Thermal Magnetic, Molded Case
FD
480 Volt AC 50/60 Hertz, 250 Volt DC
480 Volt
250 Volt

Features and Benefits

Eaton's Molded Case Circuit Breakers are Designed to Provide Circuit Protection for Low Voltage Distribution Systems; They are Described by NEMA as a Device for Closing and Interrupting a Circuit Between Separable Contacts Under Both Normal and Abnormal Conditions and Further More as a Breaker Assembled as an Integral Unit in a Supporting and Enclosing Housing of Insulating Material; The National Electrical Code (NEC) Describes them as a Device Designed to Open and Close a Circuit by Non-Automatic Means and to Open the Circuit Automatically on a Predetermined Overload of Current, without Injury to Itself when Properly Applied within its Rating; So Designed, Eaton Circuit Breakers Protect Conductors against Overloads and Conductors and Connected Apparatus, Such as Motors and Motor Starters, against Short-Circuit
Application HACR, Switchboard; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 13b

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The EHD3010 Eaton / Cutler-Hammer / Westinghouse Molded Case from Relectric

Relectric stocks new and used EHD3010 Eaton / Cutler-Hammer / Westinghouse Molded Case and many more brand-name electrical supplies. All of our reconditioned EHD3010 Eaton / Cutler-Hammer / Westinghouse Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your EHD3010 Eaton / Cutler-Hammer / Westinghouse Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the EHD3010 Eaton / Cutler-Hammer / Westinghouse Molded Case. Contact one of our sales consultants today.
