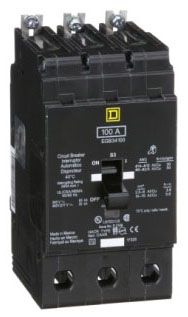

EGB34100 Square D / Schneider Electric Miniature Circuit Breakers
Item # EGB34100

EGB34100

NOTE: Images are for Reference Only

Product Details and Specifications

Type EGB
Amperage 100
Poles 3
Voltage 480Y/277
Short Circ Int Cap 35kA@480V
Mounting Type Bolt-On
Grouping NF Panel

EGB34100 Description

Square D, Miniature, Circuit Breakesr, 100A, 3P, 480 VAC, Bolt-On, 14-2/0 AWG Al/Cu, Thermal Magnetic, E-Frame, Interrupting Current: 35 kA at 480 VAC / 65 kA at 240 VAC, For NF Panelboards Miniature Circuit Breakers from Square D / Schneider Electric

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$472.08

4 in stock

$613.70

Ships in 0-2 Working Days

$640.61

Ships in 0-2 Working Days

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

480 Star/277 VAC, 100 A, 35 kA Interrupt Rating, 12 to 6 AWG Aluminum/14 to 6 AWG Copper, 3-Space, 3-Pole, Bolt-On, Thermal Magnetic, E-Frame, Panelboard Miniature Circuit Breaker
Thermal Magnetic, E-Frame
480 Star/277 Volt AC
100 Amp
3
35 Kiloamp at 480 Star/277 Volt AC, 65 Kiloamp at 120/240 Volt AC

Features and Benefits

Short Circuit/Overload Protection; HACR Rated; Mercury-Free; Green Premium Products; RoHS/REACH Compliant
RoHS/REACH Compliant; Overall Dimension 2.94 Inch Width x 4.05 Inch Depth x 5.66 Inch Height; Holding Current Rating 630 Amp; Wire Size 12 to 2/0 AWG (Aluminum), 14 to 2/0 AWG (Copper); Tightening Torque 34.52 Pound Force-Inch (14 to 10 AWG), 49.56 Pound Force-Inch (8 to 2/0 AWG); Number of Spaces 3; Protection Type Overload, Short-Circuit; Connection Type Lug; Operating Temperature Rating 104 Deg F

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The EGB34100 Square D / Schneider Electric Miniature from Relectric

Relectric stocks new and used EGB34100 Square D / Schneider Electric Miniature and many more brand-name electrical supplies. All of our reconditioned EGB34100 Square D / Schneider Electric Miniature have been professionally tested and certified, and we guarantee their performance. You can also order your EGB34100 Square D / Schneider Electric Miniature configured to your specifications. Relectric also carries a large stock of replacement parts for the EGB34100 Square D / Schneider Electric Miniature. Contact one of our sales consultants today.
