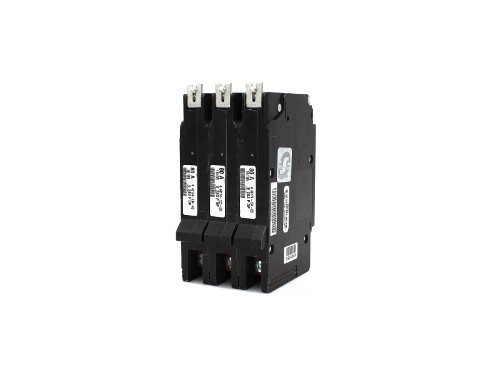

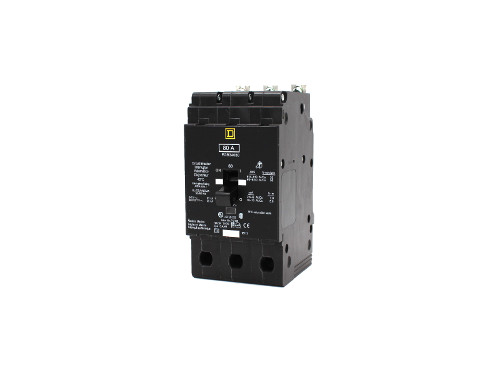

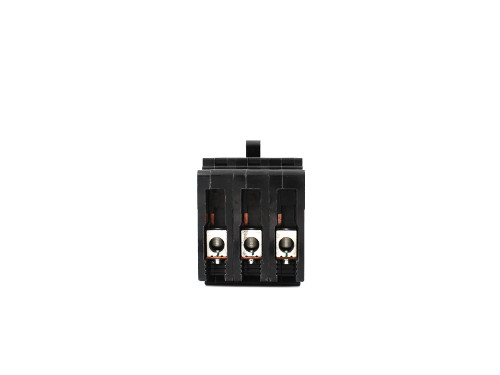

EGB34080 Square D / Schneider Electric Miniature Circuit Breakers

Item # EGB34080

NOTE: Images are for Reference Only

Product Specifications

Type
EGB
Amperage
80
Poles
3
Voltage
480Y/277
Short Circ Int Cap
35kA@480V
Mounting Type
Bolt-On
Grouping
NF Panel

EGB34080 Description

Square D, Miniature, Circuit Breaker, Type EGB, 80A, 3P, 480/277VAC, Bolt-On, Thermal Magnetic, Interrupting Capacity: 35kA at 480Y/277VAC / 65kA at 240VAC, For NF Panelboards Miniature Circuit Breakers from Square D / Schneider Electric
