EGB34020 Square D / Schneider Electric Miniature Circuit Breakers

Name: EGB34020 Square D / Schneider Electric Miniature Circuit Breakers
Brand: Square D / Schneider Electric
Price: 294.27 USD
Availability: InStock

Item # EGB34020

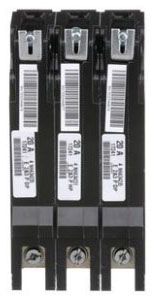

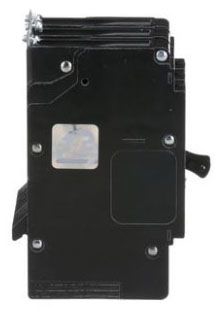

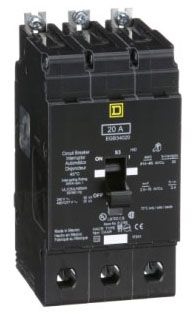

NOTE: Images are for Reference Only

Product Specifications

Type: EGB
Amperage: 20
Poles: 3
Voltage: 480Y/277
Short Circ Int Cap: 35kA@480V
Mounting Type: Bolt-On
Accessories: HID Rated
Grouping: NF Panel

EGB34020 Description

Square D, Circuit Breaker, Miniature, E-Frame, 20A, 3P, 480Y/277VAC, Bolt-On, 14-2/0 AWG Al/Cu, Thermal Magnetic, Interrupting Current 35kA at 480Y/277VAC / 65kA at 240VAC, For NF Panelboards, High Intensity Discharge Rated Miniature Circuit Breakers from Square D / Schneider Electric

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Summary

The EGB34020 Square D / Schneider Electric Miniature from Relectric

Relectric stocks new and used EGB34020 Square D / Schneider Electric Miniature and many more brand-name electrical supplies. All of our reconditioned EGB34020 Square D / Schneider Electric Miniature have been professionally tested and certified, and we guarantee their performance. You can also order your EGB34020 Square D / Schneider Electric Miniature configured to your specifications. Relectric also carries a large stock of replacement parts for the EGB34020 Square D / Schneider Electric Miniature. Contact one of our sales consultants today.

Buy Now

RE-Certified more info

INSPECTED & TESTED
1 Year Warranty

$294.27

14 in stock
RE-Certified Plus more info

RESA Certified
2 Year Warranty

$382.55

Ships in 0-2 Working Days
New Surplus more info

Guaranteed New
1 Year Warranty

$470.21

7 in stock

Qty

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?

Request Quote or Info

Extended Details

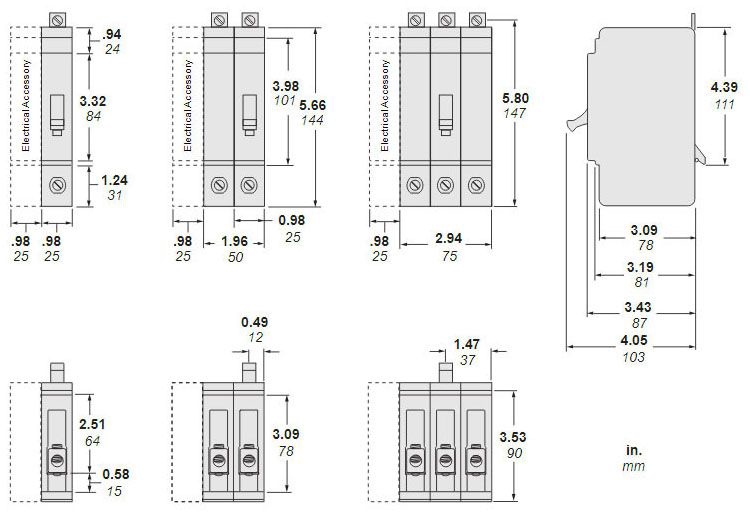

Description:: 2.94" x 4.05" x 5.66", 277 VAC/480 VAC Star, 20 A, 3-Pole, Mini, E-Frame, Thermal Magnetic, Panelboard Circuit Breaker
Type:: Mini, E-Frame, Thermal Magnetic
Voltage Rating:: 277 Volt AC/480 Volt AC Star
Current Rating:: 20 Amp
Number of Poles:: 3
Interrupting Rating:: 35 Kiloamp at 480 Star/277 Volt AC

Features and Benefits

Features/Benefits:: E-Frame Breaker are Lighting Panelboard Circuit Breakers that are Proven Effective and Reliable Which Provide a Wide Variety or Robust Features that are Use Specifically in Square D NF Panelboards; This E-Frame Breaker has Thermal Magnetic Trip Unit as Well as Signal Indicator that will Indicate When a Trip has Occur; This Specific Breaker is HACR Rated and HID Rated; Mercury-Free; RoHS Compliant
Additional Information:: 2.94" x 4.05" x 5.66", 277 VAC/480 VAC Star, 20 A, 3-Pole, Mini, E-Frame, Thermal Magnetic, Panelboard Circuit Breaker
