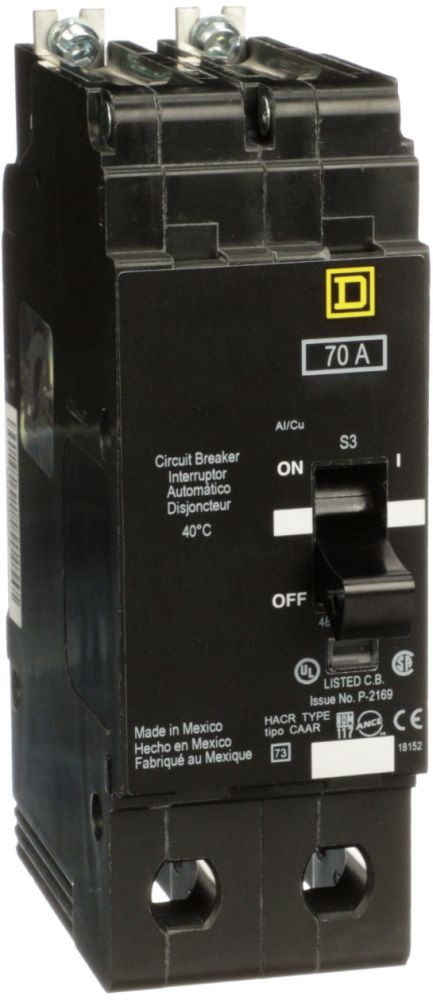

EGB24070 Square D / Schneider Electric Miniature Circuit Breakers

Item # EGB24070

EGB24070

NOTE: Images are for Reference Only

Product Specifications

Type
EGB
Amperage
70
Poles
2
Voltage
480Y/277
Short Circ Int Cap
35kA@480V
Mounting Type
Bolt-On
Grouping
NF Panel

EGB24070 Description

Square D, Circuit Breaker, Miniature, E-Frame, 70A, 2P, 480Y/277VAC, Bolt-On, 14-2/0 AWG Al/Cu, Thermal Magnetic, Interrupting Current 35kA at 480Y/277VAC / 65kA at 240VAC, For NF Panelboards Miniature Circuit Breakers from Square D / Schneider Electric

Features and Benefits

Features/Benefits:
Short Circuit/Overload Protection; HACR Rated; RoHS/REACH Compliant; Mercury-Free
Additional Information:
480 Star/277 VAC, 70 A, 35 kA, 2-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
