Loading Circuit Breaker Detail

EGB24015 Square D / Schneider Electric Miniature Circuit Breakers

Item # EGB24015

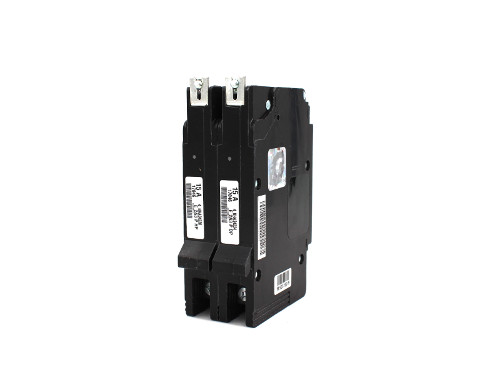

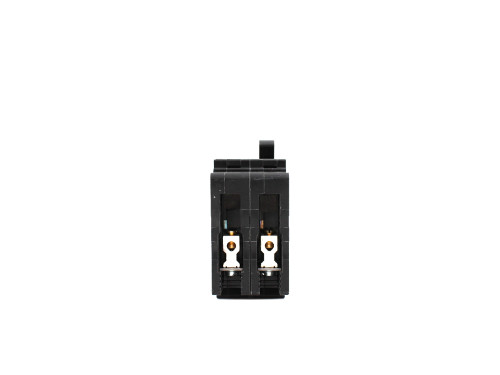

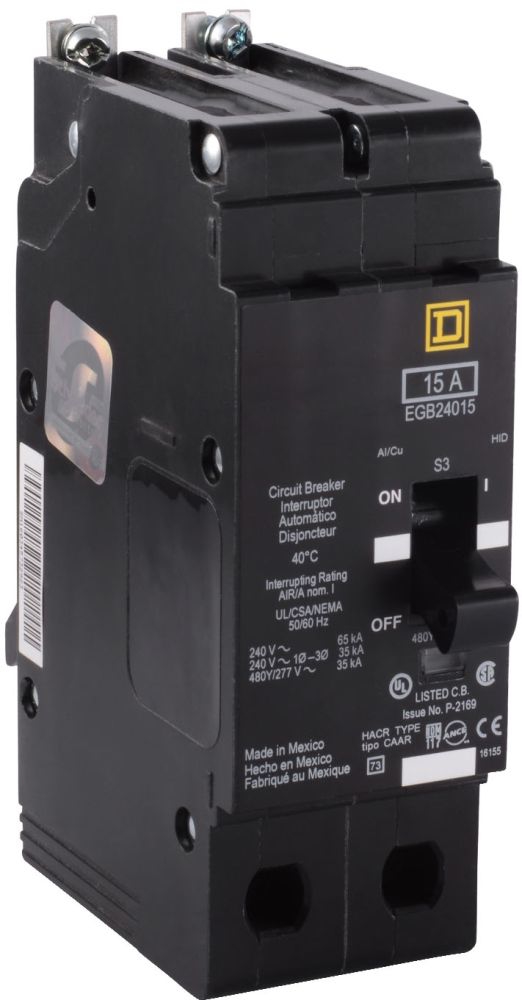

NOTE: Images are for Reference Only

Product Specifications

Type
EGB
Amperage
15
Poles
2
Voltage
480Y/277
Short Circ Int Cap
35kA@480V
Mounting Type
Bolt-On
Accessories
HID Rated
Grouping
NF Panel

EGB24015 Description

Square D, Miniature, Circuit Breaker, Type EGB, 15A, 2P, 480Y/277VAC, Bolt-On, Thermal Magnetic, Interrupting Capacity: 35kA at 480Y/277VAC / 65kA at 240VAC, For NF Panelboards, High Intensity Discharge (HID) Rated Miniature Circuit Breakers from Square D / Schneider Electric
