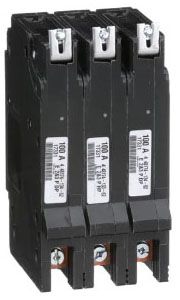

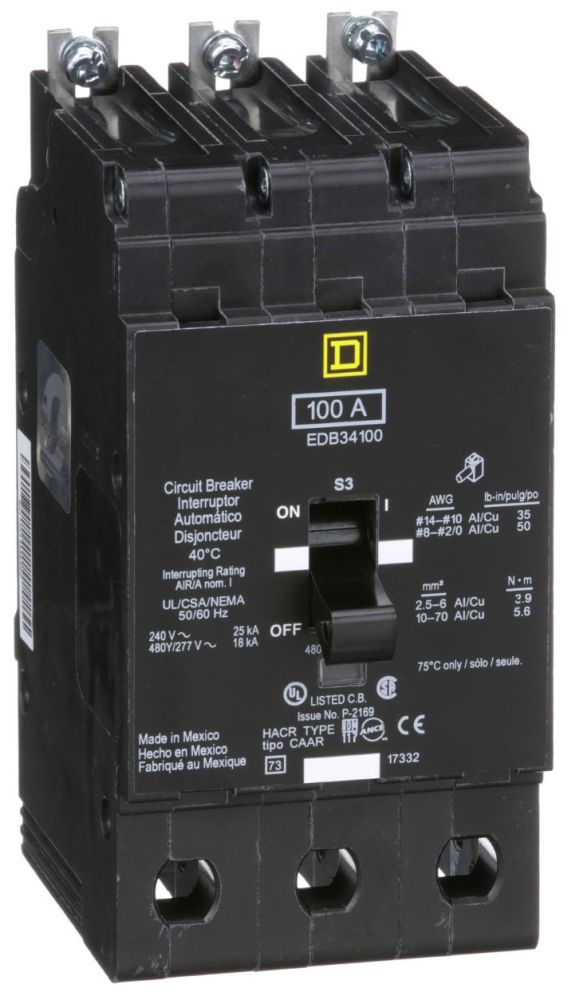

EDB34100 Square D / Schneider Electric Miniature Circuit Breakers
Item # EDB34100

EDB34100
EDB34100
EDB34100

NOTE: Images are for Reference Only

Product Details and Specifications

Type EDB
Amperage 100
Poles 3
Voltage 480Y/277
Short Circ Int Cap 18kA@480V
Mounting Type Bolt-On
Grouping NF Panel

EDB34100 Description

Square D, Circuit Breaker, Miniature, E-Frame, 100A, 3P, 480Y/277VAC, Bolt-On, 14-2/0 AWG Al/Cu, Thermal Magnetic, Interrupting Current 18kA at 480Y/277VAC / 25kA at 240VAC, For NF Panelboards Miniature Circuit Breakers from Square D / Schneider Electric

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$326.53

12 in stock

$424.49

Ships in 0-2 Working Days

$540.00

Ships in 0-2 Working Days

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

2.94" x 4.05" x 5.66", 277 VAC/480 VAC Star, 100 A, 2300 A Trip, 18/25 kA Interrupt, 3-Pole, 3-Space, Bolt-On, Short-Circuit/Overload Protection, Mini, E-Frame, Thermal Magnetic, Panelboard Circuit Breaker
Mini, E-Frame, Thermal Magnetic
277 Volt AC/480 Volt AC Star
100 Amp
3
18 Kiloamp at 277/480 Volt AC, 25 Kiloamp at 120/240 Volt AC

Features and Benefits

Short Circuit/Overload Protection; HACR Rated; Mercury-Free; Green Premium Product; RoHS Compliant; REACH Compliant
RoHS/REACH Compliant; Overall Dimension 2.94 Inch Width x 4.05 Inch Depth x 5.66 Inch Height; Holding Current 1000 Amp; Number of Space 3; Wire Size 12 to 2/0 AWG (Aluminum), 14 to 2/0 AWG (Copper); Protection Type Short-Circuit/Overload

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The EDB34100 Square D / Schneider Electric Miniature from Relectric

Relectric stocks new and used EDB34100 Square D / Schneider Electric Miniature and many more brand-name electrical supplies. All of our reconditioned EDB34100 Square D / Schneider Electric Miniature have been professionally tested and certified, and we guarantee their performance. You can also order your EDB34100 Square D / Schneider Electric Miniature configured to your specifications. Relectric also carries a large stock of replacement parts for the EDB34100 Square D / Schneider Electric Miniature. Contact one of our sales consultants today.
