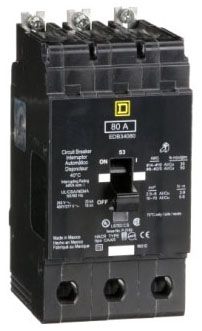

EDB34080 Square D / Schneider Electric Miniature Circuit Breakers

Item # EDB34080

NOTE: Images are for Reference Only

Product Specifications

Type
EDB
Amperage
80
Poles
3
Voltage
480Y/277
Short Circ Int Cap
18kA@480V
Mounting Type
Bolt-On
Grouping
NF Panel

EDB34080 Description

Square D, Circuit Breaker, Miniature, E-Frame, 80A, 3P, 480Y/277VAC, Bolt-On, 14-2/0 AWG Al/Cu, Thermal Magnetic, Interrupting Current 18kA at 480Y/277VAC / 25kA at 240VAC, For NF Panelboards Miniature Circuit Breakers from Square D / Schneider Electric
