EDB34060 Square D / Schneider Electric Miniature Circuit Breakers

Item # EDB34060

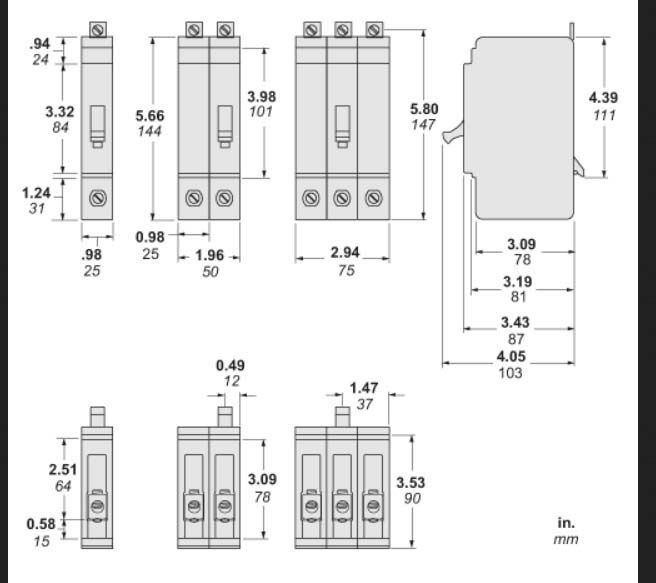

NOTE: Images are for Reference Only

Product Specifications

Type
EDB
Amperage
60
Poles
3
Voltage
480Y/277
Short Circ Int Cap
18kA@480V
Mounting Type
Bolt-On
Grouping
NF Panel

EDB34060 Description

Square D, Miniature, Circuit Breakers, Type EDB, 60A, 3P, 480 VAC, Bolt-On, 14-2/0 AWG Al/Cu, Thermal Magnetic, Interrupting Current: 25 kA at 240 VAC / 18 kA at 480 VAC Miniature Circuit Breakers from Square D / Schneider Electric
