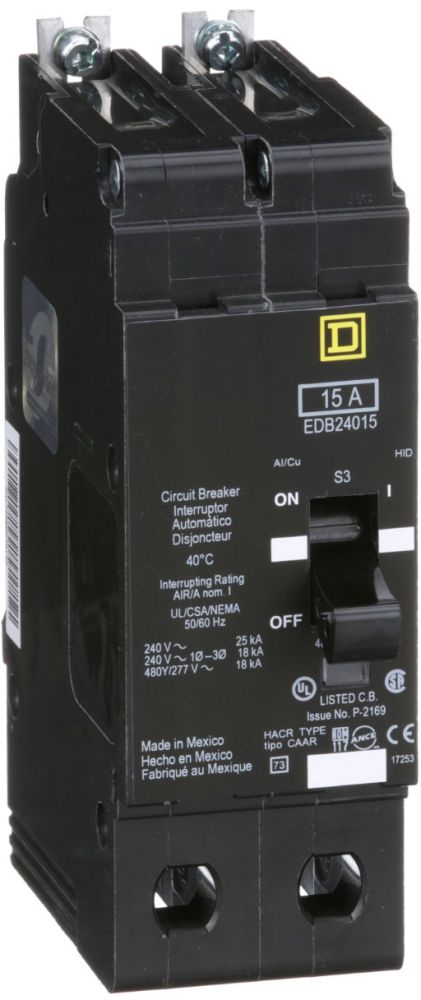

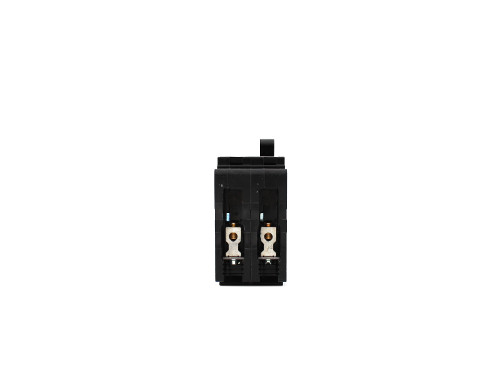

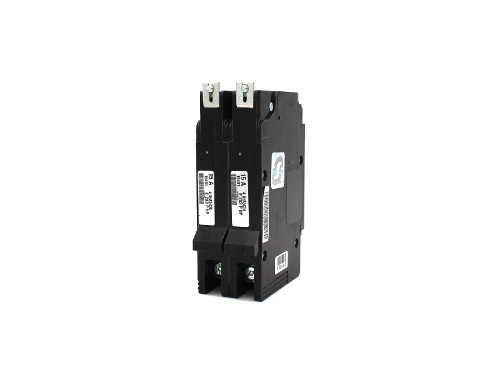

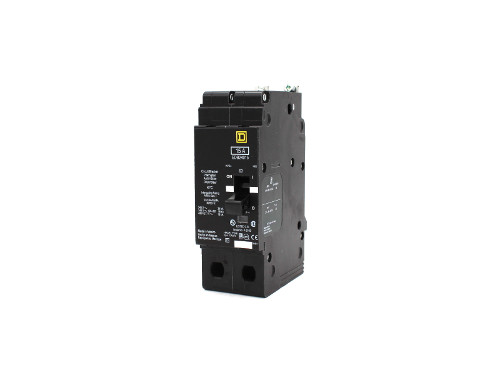

EDB24015 Square D / Schneider Electric Miniature Circuit Breakers

Name: EDB24015 Square D / Schneider Electric Miniature Circuit Breakers
Brand: Square D / Schneider Electric
Price: 131.67 USD
Availability: InStock

Item # EDB24015

NOTE: Images are for Reference Only

Product Specifications

Type: EDB
Amperage: 15
Poles: 2
Voltage: 480Y/277
Short Circ Int Cap: 18kA@480V
Mounting Type: Bolt-On
Accessories: HID Rated
Grouping: NF Panel

EDB24015 Description

Square D, Miniature, Circuit Breaker, Type EDB, 15A, 2P, 480Y/277VAC, Bolt-On, 14-6 AWG Al/Cu, Thermal Magnetic, Interrupting Capacity: 18kA at 480Y/277VAC / 25kA at 240VAC, For NF Panelboards, High Intensity Discharge Rated Miniature Circuit Breakers from Square D / Schneider Electric

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Summary

The EDB24015 Square D / Schneider Electric Miniature from Relectric

Relectric stocks new and used EDB24015 Square D / Schneider Electric Miniature and many more brand-name electrical supplies. All of our reconditioned EDB24015 Square D / Schneider Electric Miniature have been professionally tested and certified, and we guarantee their performance. You can also order your EDB24015 Square D / Schneider Electric Miniature configured to your specifications. Relectric also carries a large stock of replacement parts for the EDB24015 Square D / Schneider Electric Miniature. Contact one of our sales consultants today.

Buy Now

RE-Certified more info

INSPECTED & TESTED
1 Year Warranty

$131.67

1 in stock
RE-Certified Plus more info

RESA Certified
2 Year Warranty

$171.17

Ships in 0-2 Working Days
New Surplus more info

Guaranteed New
1 Year Warranty

$206.00

Ships in 0-2 Working Days

Qty

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?

Request Quote or Info

Extended Details

Description:: 480 Star/277 VAC, 15 A, 18 kA, 2-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
Type:: Thermal Magnetic, Branch, Miniature
Voltage Rating:: 480 Star/277 Volt AC
Current Rating:: 15 Amp
Number of Poles:: 2
Interrupting Rating:: 18 Kiloamp at 480 Star/277 Volt AC

Features and Benefits

Features/Benefits:: Short Circuit/Overload Protection; HACR Rated; RoHS/REACH Compliant; Mercury-Free
Additional Information:: 480 Star/277 VAC, 15 A, 18 kA, 2-Pole, E-Frame, Bolt-On Mount, Aluminum Lug Terminal, Thermal Magnetic, Branch, Miniature, Panelboard Circuit Breaker
