ED2110 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers

Item # ED2110

ED2110
  • ED2110
  • ED2110

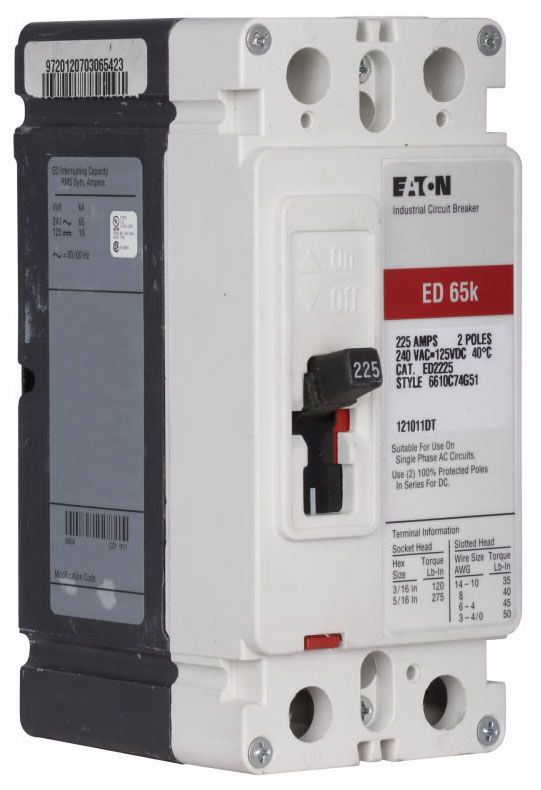

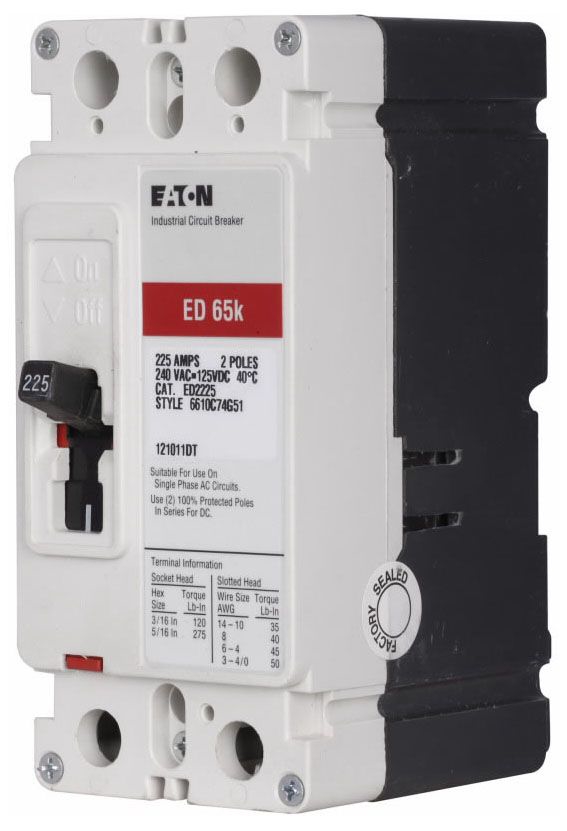

NOTE: Images are for Reference Only

Product Specifications

Type
ED
Amperage
110
Poles
2
Voltage
240
Short Circ Int Cap
65kA@240V

ED2110 Description

SERIES C F-FRAME MOLDED CASE CIRCUIT BREAKER 2P 110A CB Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Additional Information:
Non-Interchangeable Trip Circuit Breaker; Type Fixed Thermal Magnetic, Molded Case; Frame Type FD; Voltage Rating 240 Volt AC 50/60 Hertz, 125 Volt DC; Maximum AC Voltage Rating 240 Volt; Maximum DC Voltage Rating 125 Volt; Current Rating 110 Amp at 40 Deg C; Number of Poles 2; Interrupting Rating 65 Kiloamp at 240 Volt AC, 10 Kiloamp at 125 Volt DC (UL), 65 Kiloamp at 220/240 Volt AC, 10 Kiloamp at 125 Volt DC (IEC); Terminal Type Load; Size 2.75 Inch Width x 3.38 Inch Depth x 6 Inch Height; Approval UL 489, CSA C22.2; Application HACR, Switchboard, Reverse Feed; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 12b
