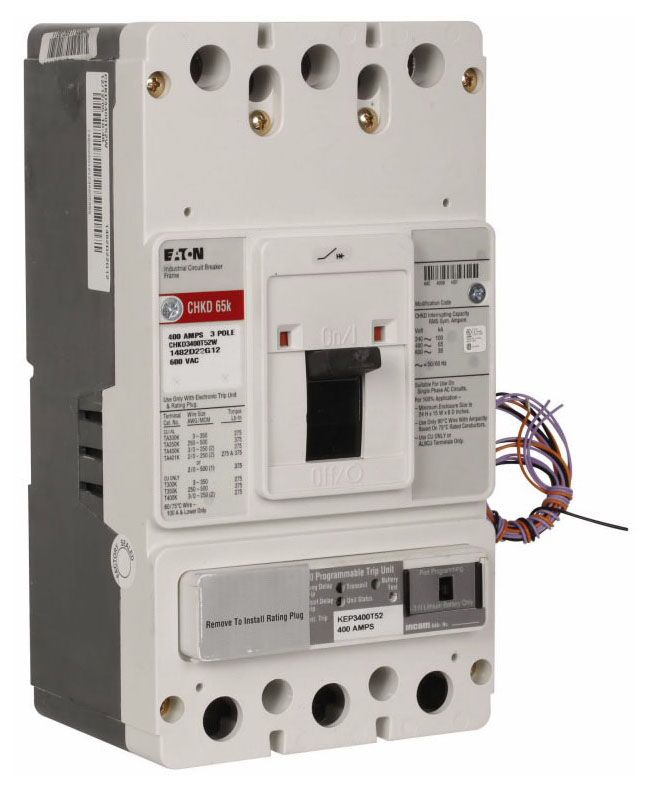

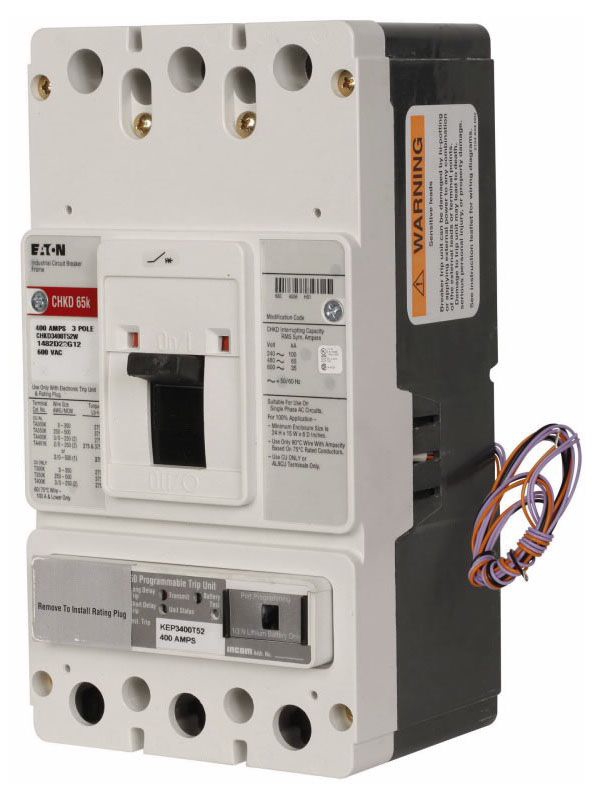

CKD3400F Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers

Item # CKD3400F

CKD3400F
  • CKD3400F
  • CKD3400F

NOTE: Images are for Reference Only

Product Specifications

Type
CKD
Amperage
400
Poles
3
Voltage
600

CKD3400F Description

SERIES C K-FRAME MOLDED CASE CIRCUIT BREAKER FRAME KD RATED 3P FRA Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Additional Information:
Molded Case Circuit Breaker Frame; Type Fixed Thermal Magnetic, KD Frame, Standard Interrupting Capacity; Voltage Rating 600 Volt AC 50/60 Hertz, 250 Volt DC; Maximum AC Voltage Rating 600 Volt; Maximum DC Voltage Rating 250 Volt; Current Rating 400 Amp at 40 Deg C; Number of Poles 3; Interrupting Rating 65 Kiloamp at 240 Volt AC, 35 Kiloamp at 480 Volt AC, 25 Kiloamp at 600 Volt AC (NEMA/UL/CSA); Terminal Type Aluminum Standard Pressure Line and Load; Size 7 Inch Width x 6 Inch Depth x 6.3 Inch Height; Approval UL 489, CSA C22.2; Application HACR; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 23a
