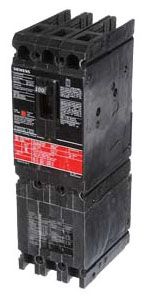

CED63B100 Siemens / ITE Molded Case Circuit Breakers

Item # CED63B100

CED63B100

NOTE: Images are for Reference Only

Product Specifications

Type
CED
Amperage
100
Poles
3
Voltage
600

CED63B100 Description

FUSELESS CURRENT LIMITING, THERMAL MAGNETIC; 3 POLE; 600 VAC, 500 VDC; 100 AMPERE AT 40 DEG C; INTERRUPTING RATING 200 KILOAMPERE AT 240/480 VAC, 100 KILOAMPERE AT 600 VAC, 50 KILOAMPERE AT 500 VDC (UL); LUG LOAD TERMINAL TERMINAL; WIRE SIZE 4 TO 1/0 AWG (ALUMINUM/COPPER); SIZE 3 INCH W X 4.56 INCH D X 9.58 INCH H; APPROVAL UL 489, CSA 22.2; SENTRON[R] BRAND; CED6 MODEL; RED LABEL Molded Case Circuit Breakers from Siemens / ITE

Features and Benefits

Features/Benefits:
Low Voltage Molded Case Circuit Breaker; RoHS Compliant
Additional Information:
600 VAC, 500 VDC, 100 A at 40 Deg C, 200 kA at 480 VAC, 3-Pole, 10 to 1/0 AWG Copper/Aluminum, Load Lug Terminal, ED Frame, Fuseless, Current Limiting, Thermal Magnetic Trip Unit, Molded Case Circuit Breaker
