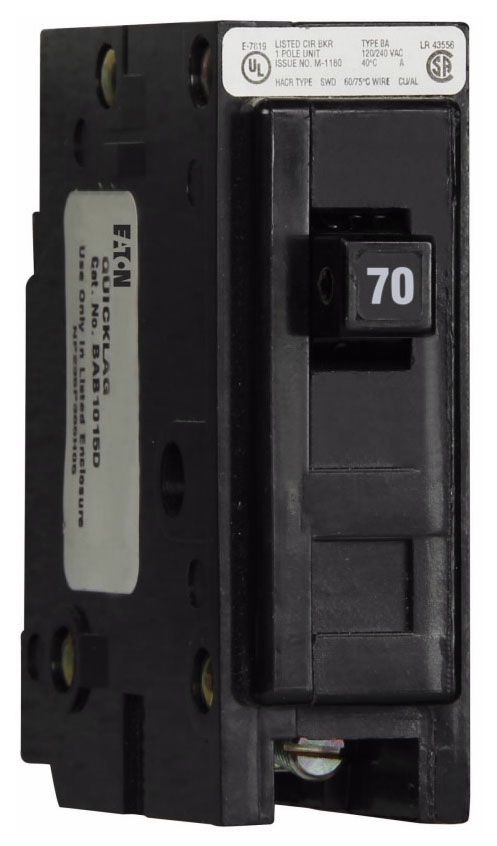

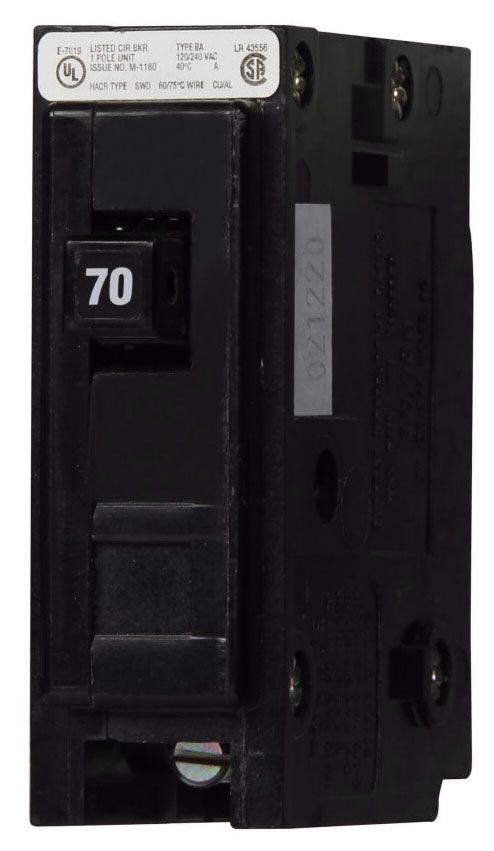

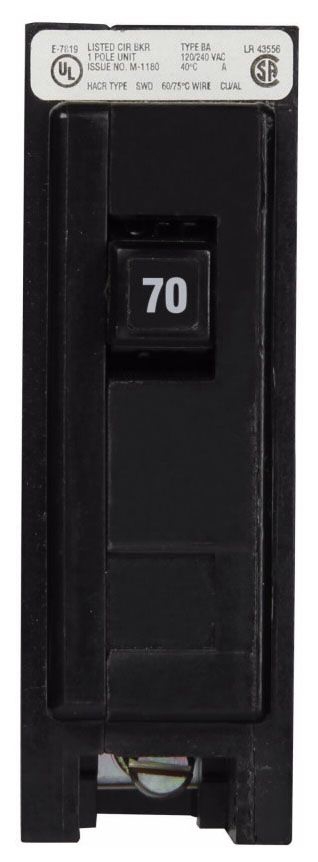

# BAB1070 Eaton Circuit Breaker

Item # BAB1070

NOTE: Images are for Reference Only

Product Specifications

Type
BA
Amperage
70
Poles
1
Voltage
120

BAB1070 Description

The BAB1070 is a Type BA thermal-magnetic circuit breaker from Eaton/Cutler-Hammer/Westinghouse, designed for industrial applications requiring reliable overcurrent protection. This single-pole unit handles 70 amps at 120/240 VAC with a 10 kA interrupting rating at AC voltage. Built with Quicklag technology, it features extended tang line/box lug load terminals and bolt-on mounting for secure installation. The breaker operates at 40�C and also supports DC applications with varying interrupting ratings: 5,000A at 24-48 VDC and 2,500A at 62.5 VDC, making it versatile for different electrical systems.
