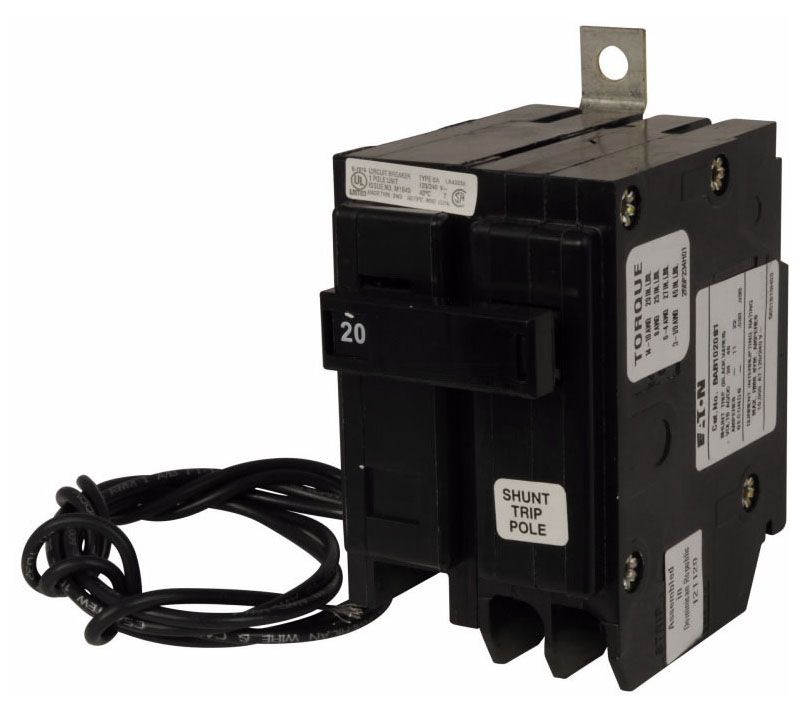

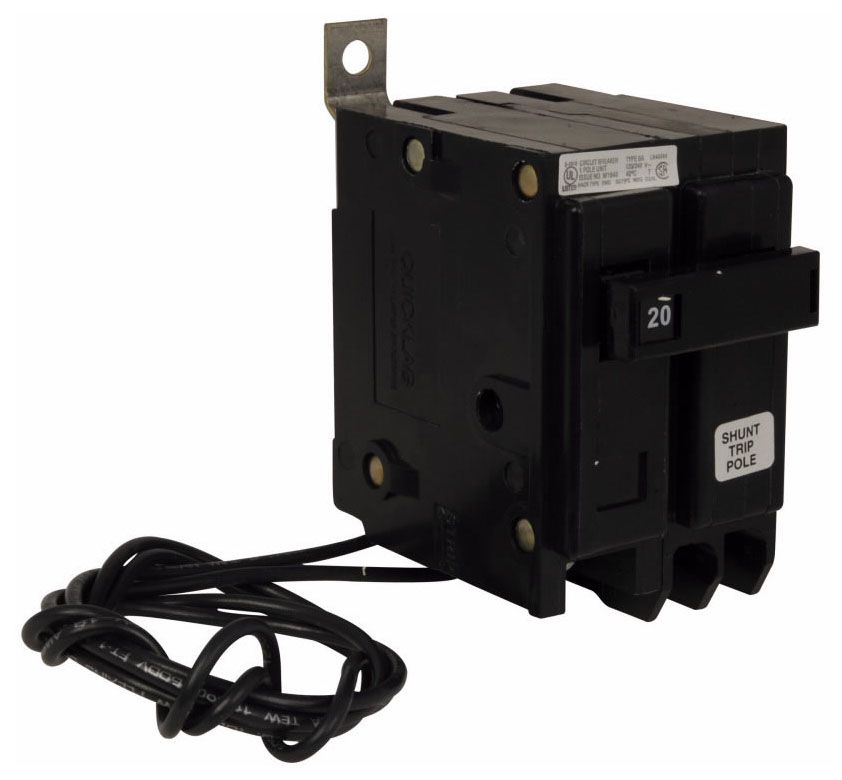

# BAB1020S1 Eaton Circuit Breaker

Name: BAB1020S1 Eaton / Cutler-Hammer / Westinghouse Miniature Circuit Breakers
Brand: Eaton / Cutler-Hammer / Westinghouse
Price: 139.05 USD
Availability: LimitedAvailability

Item # BAB1020S1

NOTE: Images are for Reference Only

Product Specifications

Type: BAB
Amperage: 20
Poles: 1
Voltage: 120

BAB1020S1 Description

The BAB1020S1 is a QUICKLAG industrial thermal-magnetic circuit breaker designed for reliable overcurrent protection in demanding applications. This single-pole unit handles 20 amps at 40�C with a voltage rating of 120/240V AC or 24/48/62.5V DC. Built for bolt-on mounting, it features ring/spade lug terminals accommodating 14 to 4 AWG copper or aluminum wire. The breaker offers interrupting ratings of 10,000 amps at 120/240V AC and 5,000 amps at 24-48V DC, making it suitable for HACR and fluorescent lighting applications. UL 489 and CSA approved, this compact 3.5-inch cube operates in humidity levels up to 93 percent non-condensing and includes a 24/48V AC/DC shunt trip.

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Summary

The BAB1020S1 Eaton / Cutler-Hammer / Westinghouse Miniature from Relectric

Relectric stocks new and used BAB1020S1 Eaton / Cutler-Hammer / Westinghouse Miniature and many more brand-name electrical supplies. All of our reconditioned BAB1020S1 Eaton / Cutler-Hammer / Westinghouse Miniature have been professionally tested and certified, and we guarantee their performance. You can also order your BAB1020S1 Eaton / Cutler-Hammer / Westinghouse Miniature configured to your specifications. Relectric also carries a large stock of replacement parts for the BAB1020S1 Eaton / Cutler-Hammer / Westinghouse Miniature. Contact one of our sales consultants today.

Buy Now

RE-Certified more info

INSPECTED & TESTED
1 Year Warranty

$139.05

Out of stock
RE-Certified Plus more info

RESA Certified
2 Year Warranty

$180.77

Out of stock
New Surplus

Guaranteed New
1 Year Warranty

Call For Best Price

Out of stock
Factory New

Manufacturers Standard
Warranty

Call For Best Price

Call for availability

Qty

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?

Request Quote or Info

Extended Details

Description:: Industrial Circuit Breaker; Type Thermal Magnetic, Non-Interchangeable Trip, Miniature; Number of Poles 1; Voltage Rating 120/240 Volt AC, 24/48/62.5 Volt DC; Current Rating 20 Amp at 40 Deg C; Interrupting Rating 10000 Amp at 120/240 Volt AC, 5000 Amp at 24 to 48 Volt DC; Terminal Type Ring/Spade Lug; Wire Size 14 to 4 AWG Copper/Aluminum (Standard Load); Mounting Bolt-On; Size 3.5 Inch Width x 3.5 Inch Depth x 3.5 Inch Height; Approval UL 489, CSA; Humidity Rating 0 to 93 Percent (Non-Condensing); Includes 24/48 Volt AC/DC Shunt Trip; Application HACR, 120 Volt AC Switching Duty Fluorescent Light; Applicable Standard Federal Specification W-C-375b 10a/11a/12a
Type:: Thermal Magnetic, Non-Interchangeable Trip, Miniature
Number of Poles:: 1
Voltage Rating:: 120/240 Volt AC, 24/48/62.5 Volt DC
Current Rating:: 20 Amp at 40 Deg C
Interrupting Rating:: 10000 Amp at 120/240 Volt AC, 5000 Amp at 24 to 48 Volt DC

Features and Benefits

Additional Information:: Industrial Circuit Breaker; Type Thermal Magnetic, Non-Interchangeable Trip, Miniature; Number of Poles 1; Voltage Rating 120/240 Volt AC, 24/48/62.5 Volt DC; Current Rating 20 Amp at 40 Deg C; Interrupting Rating 10000 Amp at 120/240 Volt AC, 5000 Amp at 24 to 48 Volt DC; Terminal Type Ring/Spade Lug; Wire Size 14 to 4 AWG Copper/Aluminum (Standard Load); Mounting Bolt-On; Size 3.5 Inch Width x 3.5 Inch Depth x 3.5 Inch Height; Approval UL 489, CSA; Humidity Rating 0 to 93 Percent (Non-Condensing); Includes 24/48 Volt AC/DC Shunt Trip; Application HACR, 120 Volt AC Switching Duty Fluorescent Light; Applicable Standard Federal Specification W-C-375b 10a/11a/12a
