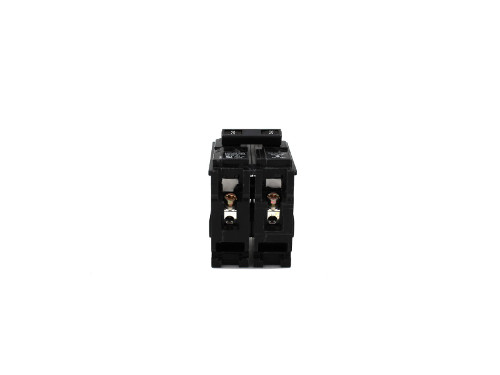

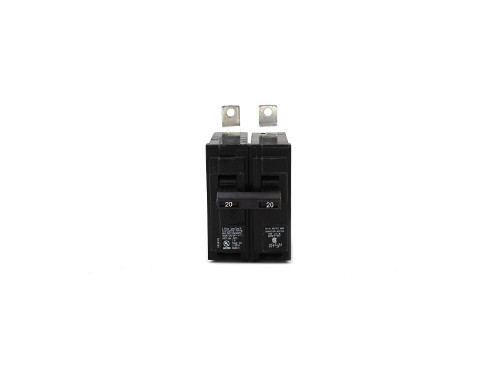

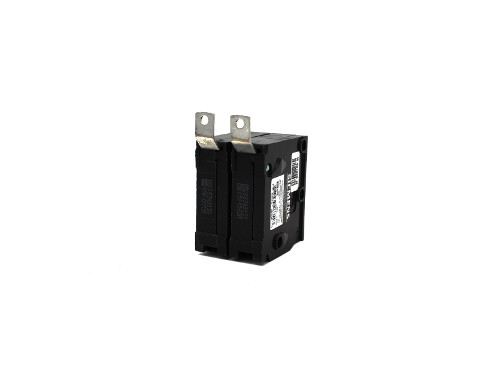

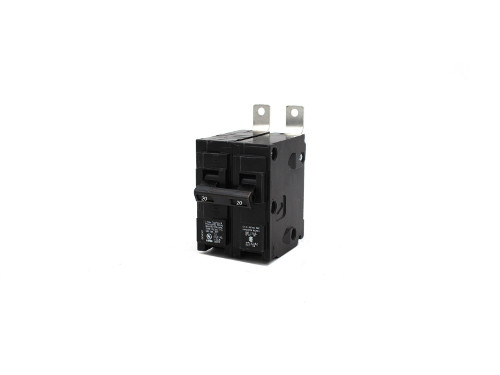

# B220 Siemens Circuit Breaker

Name: B220 Siemens / ITE Miniature Circuit Breakers
Brand: Siemens / ITE
Price: 25.33 USD
Availability: InStock

Item # B220

NOTE: Images are for Reference Only

Product Specifications

Type: BL
Amperage: 20
Poles: 2
Voltage: 240
Short Circ Int Cap: 10kA@240V
Mounting Type: Load Lugs

B220 Description

The Siemens B220 is a 2-pole miniature circuit breaker built on a BL frame with bolt-on mounting and load lugs. This molded case breaker features thermal and fixed magnetic trip protection with common trip functionality, rated for 20 amps at 40�C. Operating at 120/240 VAC and 50/60 Hz, it provides 10 kA interrupting capacity at 240 volts for reliable branch circuit protection in panelboard applications. We stock new and obsolete Siemens/ITE miniature circuit breakers to meet your specific electrical system requirements.

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Summary

The B220 Siemens / ITE Miniature from Relectric

Relectric stocks new and used B220 Siemens / ITE Miniature and many more brand-name electrical supplies. All of our reconditioned B220 Siemens / ITE Miniature have been professionally tested and certified, and we guarantee their performance. You can also order your B220 Siemens / ITE Miniature configured to your specifications. Relectric also carries a large stock of replacement parts for the B220 Siemens / ITE Miniature. Contact one of our sales consultants today.

Buy Now

RE-Certified more info

INSPECTED & TESTED
1 Year Warranty

$25.33

105 in stock
RE-Certified Plus more info

RESA Certified
2 Year Warranty

$32.93

Ships in 0-2 Working Days
New Surplus more info

Guaranteed New
1 Year Warranty

$39.00

18 in stock

Qty

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?

Request Quote or Info

Extended Details

Description:: 120/240 VAC 50/60 Hz, 20 A, 10 kA, 2-Pole, BL Frame, Bolt-On, Molded Case, Thermal and Fixed Magnetic Trip, Common Trip, Panelboard Circuit Breaker
Type:: Thermal and Fixed Magnetic, Branch, Common Trip, Molded Case
Voltage Rating:: 120/240 Volt AC at 50/60 Hertz
Current Rating:: 20 Ampere at 40 Deg C
Number of Poles:: 2
Interrupting Rating:: 10 Kiloamp at 120/240 Volt AC

Features and Benefits

Features/Benefits:: Reach Compliant
Additional Information:: 120/240 VAC 50/60 Hz, 20 A, 10 kA, 2-Pole, BL Frame, Bolt-On, Molded Case, Thermal and Fixed Magnetic Trip, Common Trip, Panelboard Circuit Breaker
