B120H Siemens / ITE Miniature Circuit Breakers
Item # B120H

B120H

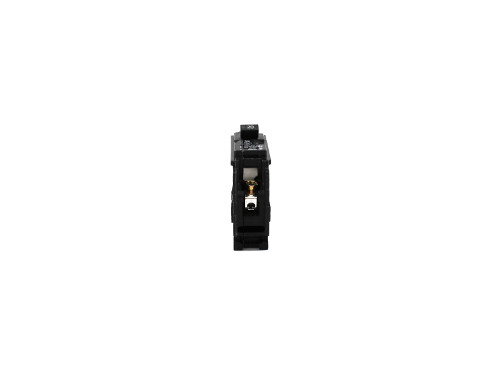

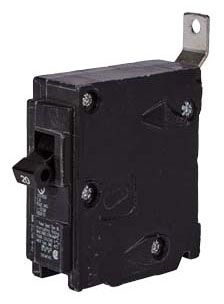

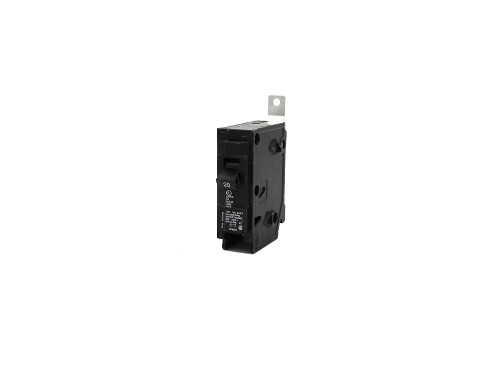

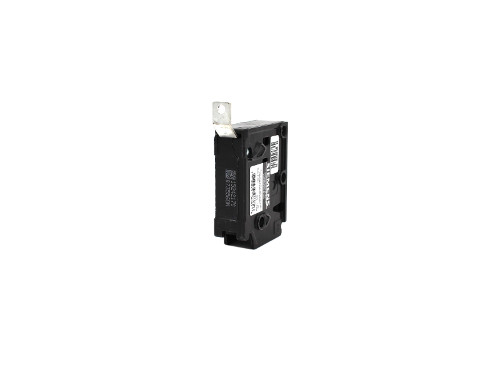

NOTE: Images are for Reference Only

Product Details and Specifications

Type BLH
Amperage 20
Poles 1
Voltage 240
Short Circ Int Cap 22kA@240V
Mounting Type Bolt-On

B120H Description

Siemens, Miniature, Circuit Breakers, Type BLH, 20A, 1P, 240 VAC, Bolt-On, Load Side Lug Terminals, Thermal Magnetic, Interrupting Current: 22 kA at 240 VAC Miniature Circuit Breakers from Siemens / ITE

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$15.29

196 in stock

$28.00

49 in stock

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

120 VAC, 20 A, 22 kA, 1-Pole, Bolt-On Mount, Molded Case, Branch, Panelboard Circuit Breaker
Thermal and Fixed Magnetic, Branch, Molded Case
120 Volt AC at 50/60 Hertz
20 Ampere at 40 Deg C
1
22 Kiloamp at 120 Volt AC

Features and Benefits

Frame Type BLH; Terminal Type Bolt-On; Overall Dimension 1 Inch Width x 3 Inch Depth x 4 Inch Height

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The B120H Siemens / ITE Miniature from Relectric

Relectric stocks new and used B120H Siemens / ITE Miniature and many more brand-name electrical supplies. All of our reconditioned B120H Siemens / ITE Miniature have been professionally tested and certified, and we guarantee their performance. You can also order your B120H Siemens / ITE Miniature configured to your specifications. Relectric also carries a large stock of replacement parts for the B120H Siemens / ITE Miniature. Contact one of our sales consultants today.
