America's First Call for Commercial / Industrial Circuit Breakers & Other Electrical Parts.

TED136020WL General Electric / GE Molded Case Circuit Breakers
Item # TED136020WL

TED136020WL

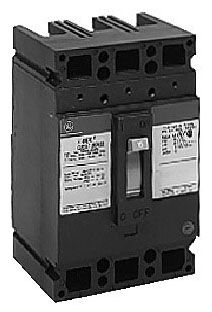

NOTE: Images are for Reference Only

Product Details and Specifications

Type TED
Amperage 20
Poles 3
Voltage 600
Short Circ Int Cap 18kA@480V
Configuration Feed-Thru

TED136020WL Description

General Electric, Molded Case, Circuit Breaker, Type TED, 20A, 3P, 3PH, 600V, Feed-Thru, Line + Load Lugs, Thermal Magnetic, Interrupting Capacity: 18kA at 480V Molded Case Circuit Breakers from General Electric / GE

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$206.00

Call for availability

$267.80

Call for availability

Call For Best Price

Call for availability

Call For Best Price

Call for availability

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

600 VAC, 20 A, 18 kA Interrupt, 3-Pole, Aluminum/Copper Line/Load Lug Terminal, E150-Frame, Non-Interchangeable Trip, Core E/Mid Tier, Thermal Magnetic, Industrial Molded Case Circuit Breaker
Thermal Magnetic
E150
120/240/277/480/600 Volt AC, 125/250/500 Volt DC
600 Volt
500 Volt

Features and Benefits

The E150 Product Line Consists of Thermal Magnetic Circuit Breakers, Magnetic Circuit Breakers and Molded-Case Switches Rated up to 150 Amps and 600 Volts AC; Catalog Numbers Include the Complete Breaker or Switch; The WL Catalog Number Suffix Indicates that the Devices Come with Cu/Al Line and Load Lugs; All TED Breakers Suitable for Reverse Feed
Trip Function LI; Application HACR

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The TED136020WL General Electric / GE Molded Case from Relectric

Relectric stocks new and used TED136020WL General Electric / GE Molded Case and many more brand-name electrical supplies. All of our reconditioned TED136020WL General Electric / GE Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your TED136020WL General Electric / GE Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the TED136020WL General Electric / GE Molded Case. Contact one of our sales consultants today.
