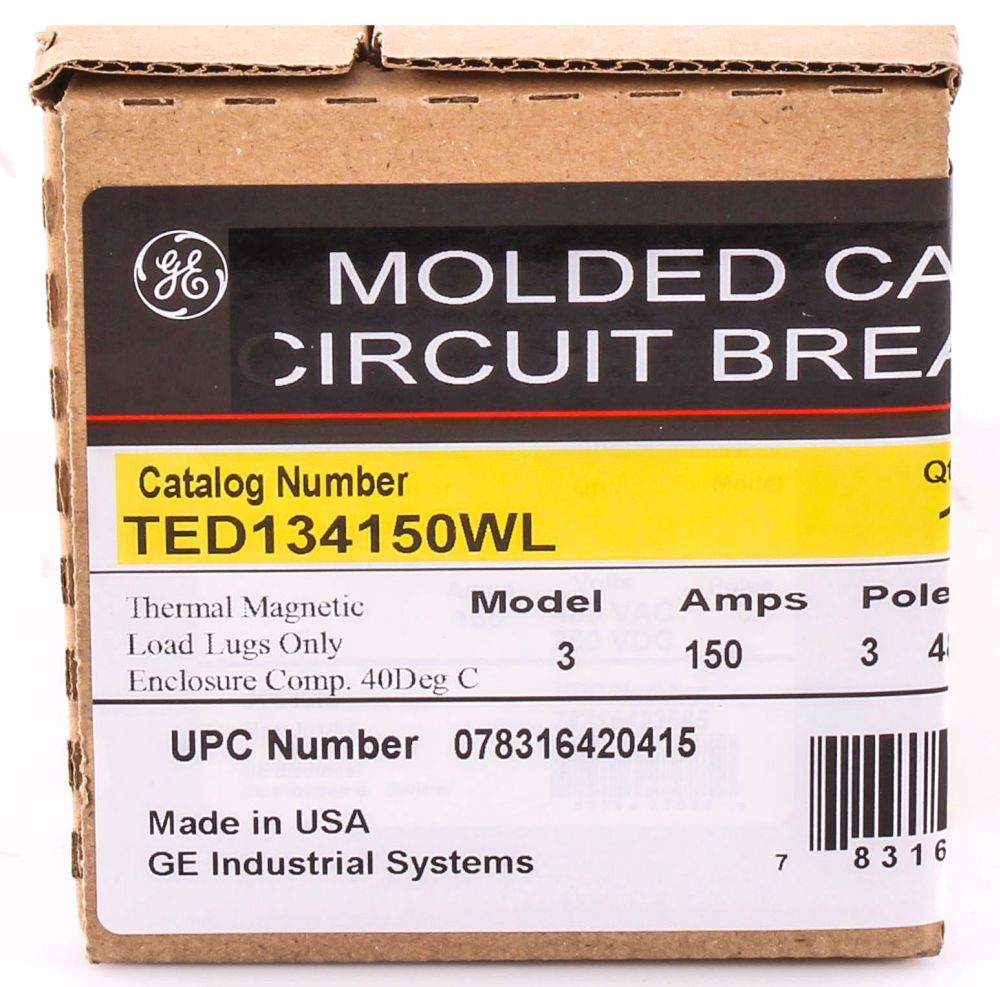

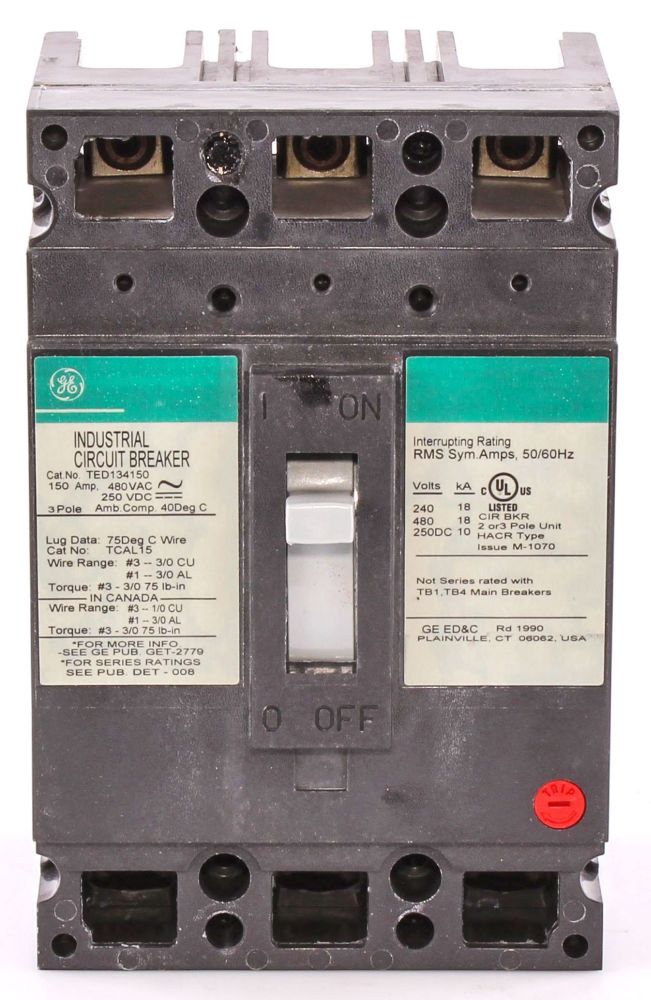

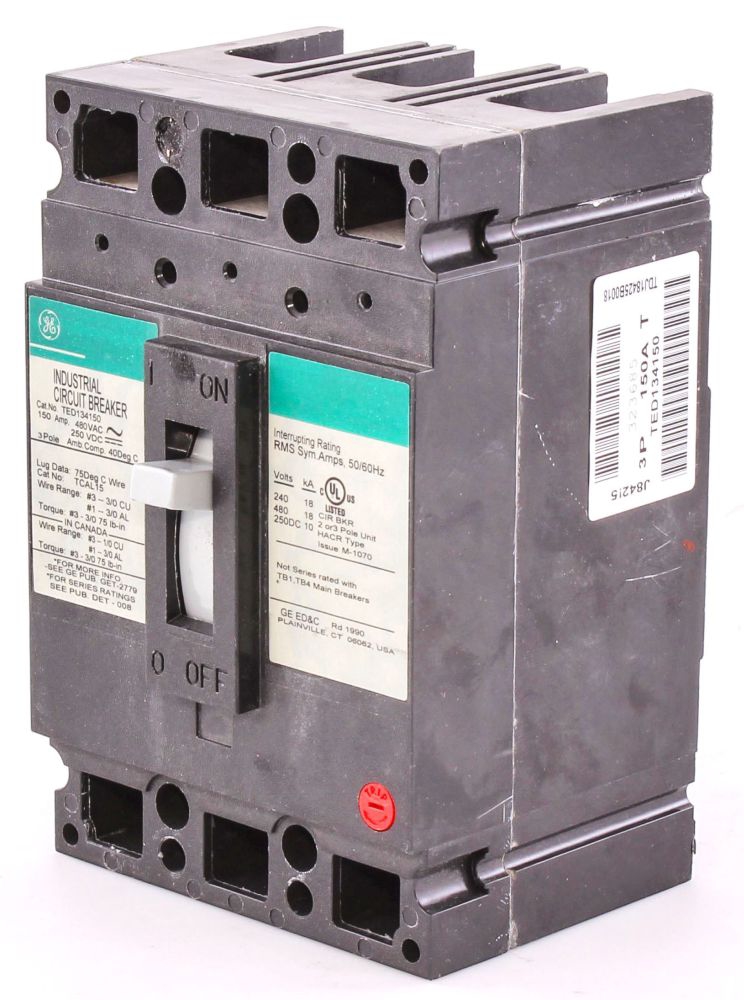

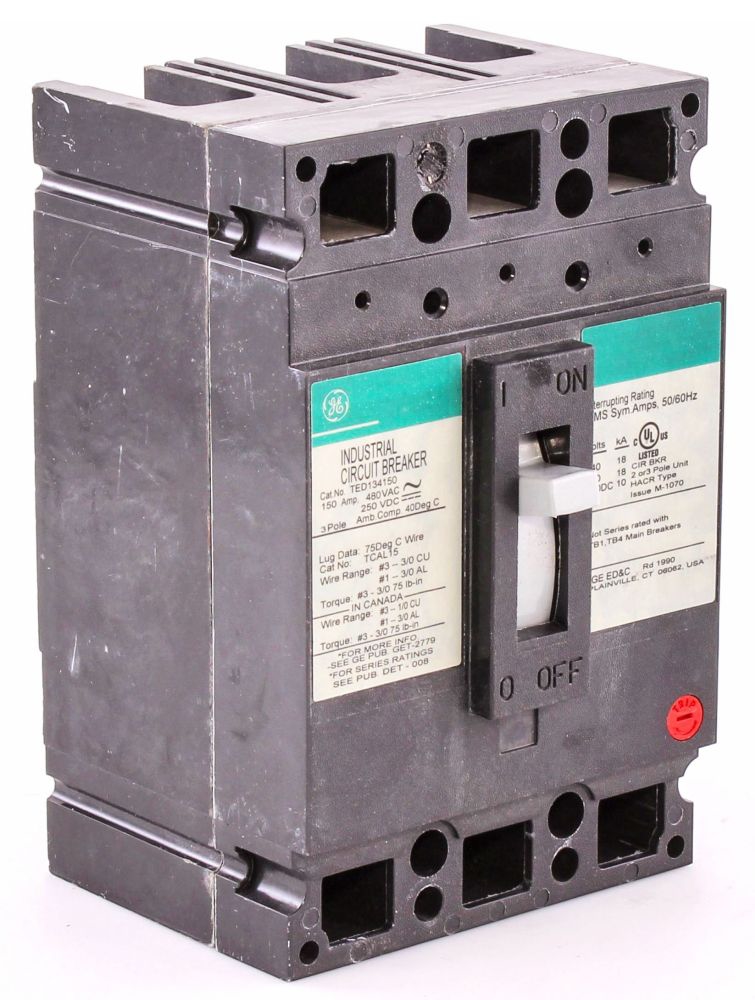

TED134150WL General Electric / GE Molded Case Circuit Breakers
Item # TED134150WL

TED134150WL
TED134150WL
TED134150WL
TED134150WL

NOTE: Images are for Reference Only

Product Details and Specifications

Type TED
Amperage 150
Poles 3
Voltage 480

TED134150WL Description

MOLDED CASE, THERMAL MAGNETIC TYPE; 4 1/8 INCH W X 3 3/8 INCH D X 6 5/16 INCH H SIZE; 480 V MAX. AC VOLTAGE RATING; 500 V MAX. DC VOLTAGE RATING; 240/480 VAC, 500 VDC VOLTAGE RATING; 18 KILOAMPERE AT 240/480 VAC, 10 KILOAMPERE AT 500 VDC INTERRUPTING RATING; 150 AMPERE CURRENT RATING; 3 POLE(S); ALUMINUM/COPPER LINE LUG, ALUMINUM/COPPER LOAD LUG TERMINAL TYPE; E FRAME TYPE; TED MODEL Molded Case Circuit Breakers from General Electric / GE

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

Call For Best Price

Call for availability

Call For Best Price

Call for availability

Call For Best Price

Call for availability

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

480 VAC, 150 A, 18 kA Interrupt, 3-Pole, Aluminum/Copper Line/Load Lug Terminal, E150-Frame, Non-Interchangeable Trip, Core E/Mid Tier, Thermal Magnetic, Industrial Molded Case Circuit Breaker
Thermal Magnetic
E150
120/240/277/480/600 Volt AC, 125/250/500 Volt DC
600 Volt
500 Volt

Features and Benefits

The E150 Product Line Consists of Thermal Magnetic Circuit Breakers, Magnetic Circuit Breakers and Molded-Case Switches Rated up to 150 Amps and 600 Volts AC; Catalog Numbers Include the Complete Breaker or Switch; The WL Catalog Number Suffix Indicates that the Devices Come with Cu/Al Line and Load Lugs; All TED Breakers Suitable for Reverse Feed
Trip Function LI; Application HACR

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The TED134150WL General Electric / GE Molded Case from Relectric

Relectric stocks new and used TED134150WL General Electric / GE Molded Case and many more brand-name electrical supplies. All of our reconditioned TED134150WL General Electric / GE Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your TED134150WL General Electric / GE Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the TED134150WL General Electric / GE Molded Case. Contact one of our sales consultants today.
