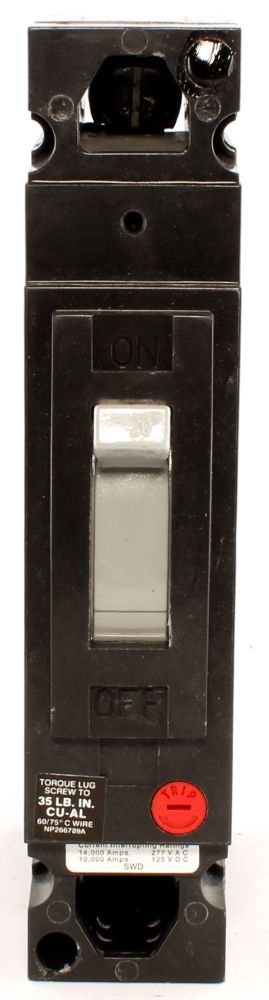

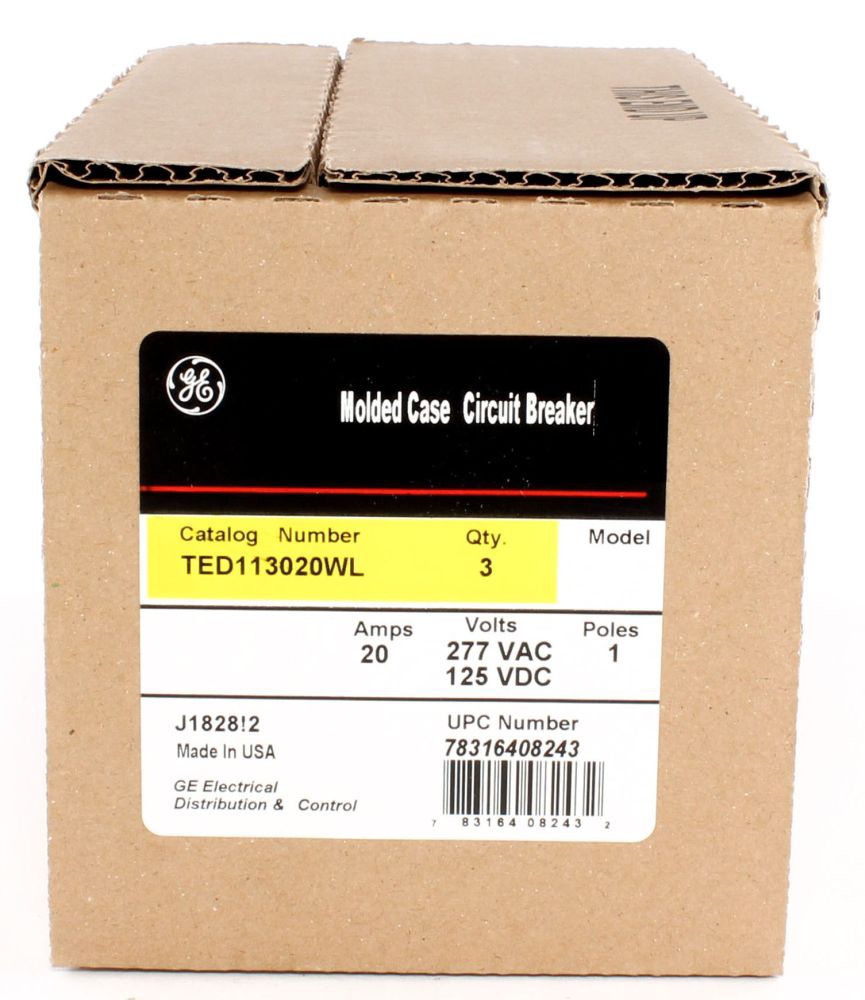

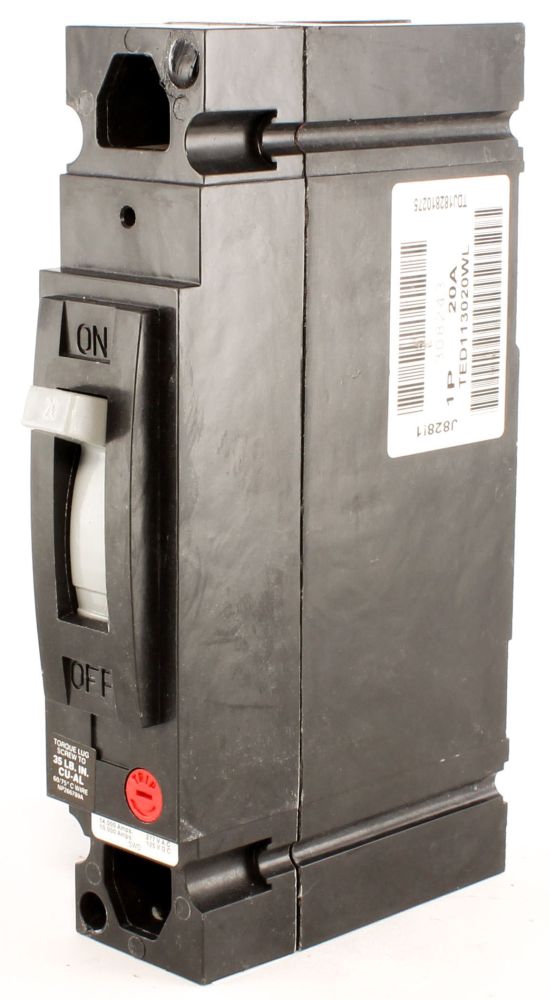

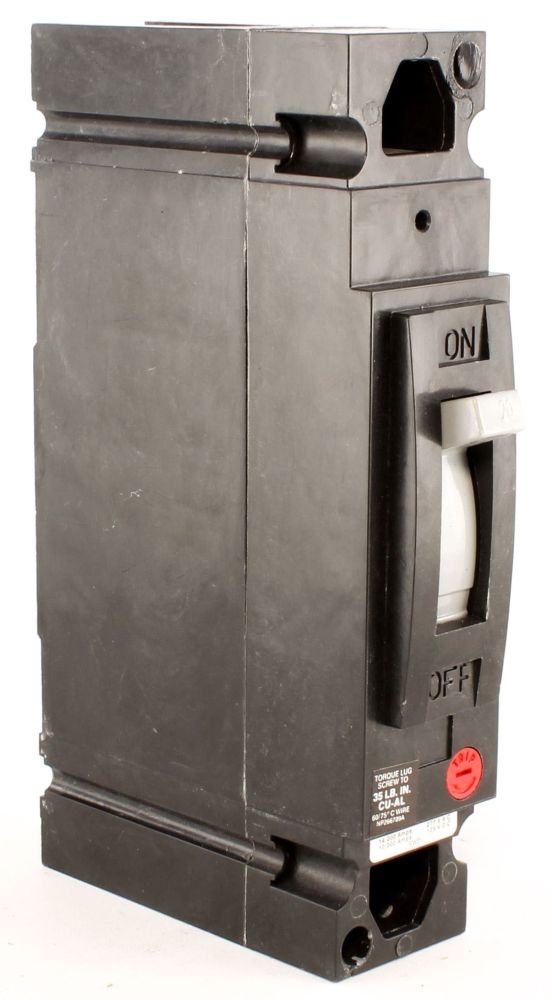

TED113020WL General Electric / GE Molded Case Circuit Breakers
Item # TED113020WL

TED113020WL
TED113020WL
TED113020WL
TED113020WL

NOTE: Images are for Reference Only

Product Details and Specifications

Type TED
Amperage 20
Poles 1
Voltage 277
Short Circ Int Cap 14kA@277V
Configuration Line + Load Lugs

TED113020WL Description

Type TED; 20A; 1P; 277/480V; 14kAIC @ 277VAC, 10kAIC @ 480VAC; HACR; Suitable for Reverse Feed; LI Fixed Trip; Lug Part Number TCAL14; 14-8AWG Cu/Al; E150 Frame; Thermal Magnetic; Molded Case; Circuit Breaker Molded Case Circuit Breakers from General Electric / GE

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$95.00

10 in stock

Call For Best Price

Call for availability

Call For Best Price

Call for availability

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

277 VAC, 125 VDC, 20 A, 14 kA Interrupt, 1-Pole, Aluminum/Copper Line/Load Lug Terminal, E150-Frame, Non-Interchangeable Trip, Core E/Mid Tier, Thermal Magnetic, Industrial Molded Case Circuit Breaker
Thermal Magnetic
E150
120/240/277/480 Volt AC, 125 Volt DC
480 Volt
125 Volt

Features and Benefits

The E150 Product Line Consists of Thermal Magnetic Circuit Breakers, Magnetic Circuit Breakers and Molded-Case Switches Rated up to 150 Amps and 600 Volts AC; Catalog Numbers Include the Complete Breaker or Switch; The WL Catalog Number Suffix Indicates that the Devices Come with Cu/Al Line and Load Lugs; All TED Breakers Suitable for Reverse Feed
Trip Function LI; Application HACR
