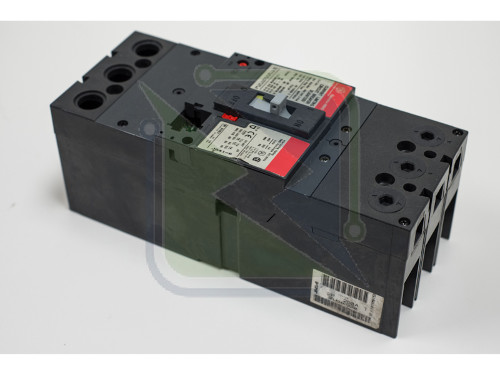

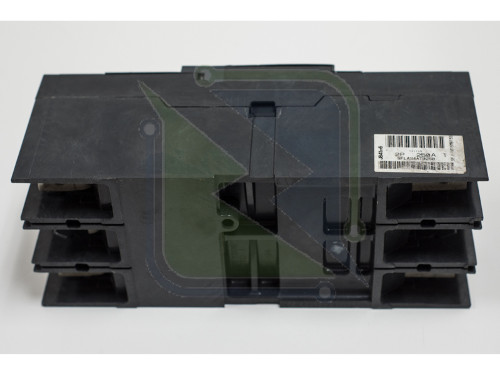

SFPA24AT0250 General Electric / GE Molded Case Circuit Breakers
Item # SFPA24AT0250

NOTE: Images are for Reference Only

Product Details and Specifications

Type SFPA
Amperage 250
Poles 2
Voltage 480

SFPA24AT0250 Description

SFP 2P 480V 250A Molded Case Circuit Breakers from General Electric / GE

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$809.00

Out of stock

$1,030.90

Out of stock

Call For Best Price

Out of stock

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

Interchangeable Trip Circuit Breaker; Type Molded Case, Digital, Solid State, Electronic Trip, Current Limiting; Frame Type SF; Voltage Rating 1240/480/600 Volt AC 50/60 Hertz; Maximum AC Voltage Rating 600 Volt; Current Rating 250 Amp; Number of Poles 2; Interrupting Rating 200 Kiloamp at 240 Volt AC, 100 Kiloamp at 480 Volt AC, 25 Kiloamp at 600 Volt AC; Size 4.12 Inch Width x 3.81 Inch Depth x 10.12 Inch Height; Approval UL, CUL, CSA; Trip Function Long-Time, Short-Time and Instantaneous; Wire Size 8 AWG to 350 KCMIL (Copper/Aluminum); Application Heating, Air Conditioning, Refrigeration
Molded Case, Digital, Solid State, Electronic Trip, Current Limiting
SF
1240/480/600 Volt AC 50/60 Hertz
600 Volt
250 Amp

Features and Benefits

Spectra RMS Molded Case Circuit Breakers (SE150, SF250, SG600 and SK1200) have a Digital, Solid State, RMS Sensing Trip System with Field Installable, Front-Mounted Rating Plugs to Establish or Change the Breaker Amp Rating; Adjustable Instantaneous with Tracking Short-Time is Standard on All Frames; The Trip System Uses Digital Sampling to Determine the RMS Value of Sinusoidal and Non-Sinusoidal Currents; Suitable for Reverse Feed
Trip Function Long-Time, Short-Time and Instantaneous; Wire Size 8 AWG to 350 KCMIL (Copper/Aluminum); Application Heating, Air Conditioning, Refrigeration

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The SFPA24AT0250 General Electric / GE Molded Case from Relectric

Relectric stocks new and used SFPA24AT0250 General Electric / GE Molded Case and many more brand-name electrical supplies. All of our reconditioned SFPA24AT0250 General Electric / GE Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your SFPA24AT0250 General Electric / GE Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the SFPA24AT0250 General Electric / GE Molded Case. Contact one of our sales consultants today.
