Industrial Molded Case SEDA 150A 600V 3P Circuit Breaker General Electric / GE Molded Case Circuit Breakers

Item # SEDA36AT0150

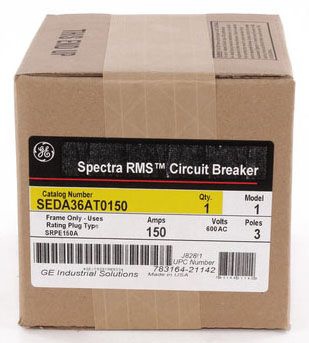

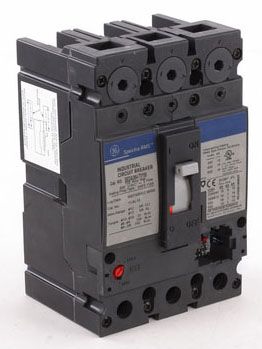

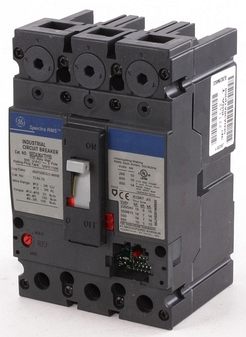

Industrial Molded Case SEDA 150A 600V 3P Circuit Breaker
  • Industrial Molded Case SEDA 150A 600V 3P Circuit Breaker
  • Industrial Molded Case SEDA 150A 600V 3P Circuit Breaker
  • Industrial Molded Case SEDA 150A 600V 3P Circuit Breaker
  • Industrial Molded Case SEDA 150A 600V 3P Circuit Breaker

NOTE: Images are for Reference Only

Product Specifications

Type
SEDA
Amperage
150
Poles
3
Voltage
600

Industrial Molded Case SEDA 150A 600V 3P Circuit Breaker Description

ELECTRONIC SOLID STATE TRIP, MOLDED CASE TYPE; 4.12 INCH W X 3.38 INCH D X 6.31 INCH H SIZE; 600 V MAX. AC VOLTAGE RATING; UL 489, CSA C22.2 APPROVAL; 240/480/600 VAC (UL/CSA); 220 TO 240/380 TO 415/500 VAC (IEC) VOLTAGE RATING; 18 KILOAMPERE AT 240/480 VAC, 14 KILOAMPERE AT 600 VAC (UL); 18 KILOAMPERE AT 220 TO 240 VAC, 14 KILOAMPERE AT 380 TO 415/500 VAC (IEC) INTERRUPTING RATING; 150 AMPERE CURRENT RATING; 3 POLE(S); NOT INCLUDED TERMINAL TYPE; SE FRAME TYPE; SPECTRA[R] BRAND; INCLUDES LONG/SHORT/INSTANTANEOUS TIME TRIP; SED MODEL Molded Case Circuit Breakers from General Electric / GE

Features and Benefits

Features/Benefits:
Spectra RMS Molded Case Circuit Breakers (SE150, SF250, SG600 and SK1200) have a Digital, Solid State, RMS Sensing Trip System with Field Installable, Front-Mounted Rating Plugs to Establish or Change the Breaker Ampere Rating; Adjustable Instantaneous with Tracking Short-Time is Standard on All Frames; The Trip System Uses Digital Sampling to Determine the RMS Value of Sinusoidal and Non-Sinusoidal Currents
Additional Information:
600 VAC, 150 A Sensor, 18 kA Interrupt, 3-Pole, 12 to 3/0 AWG Aluminum/Copper, SE150 Frame, Digital, Solid State Electronic/Interchangeable Trip, RMS Trip Unit, LSI Trip Function, Standard Continuous Load, Molded Case Circuit Breaker
