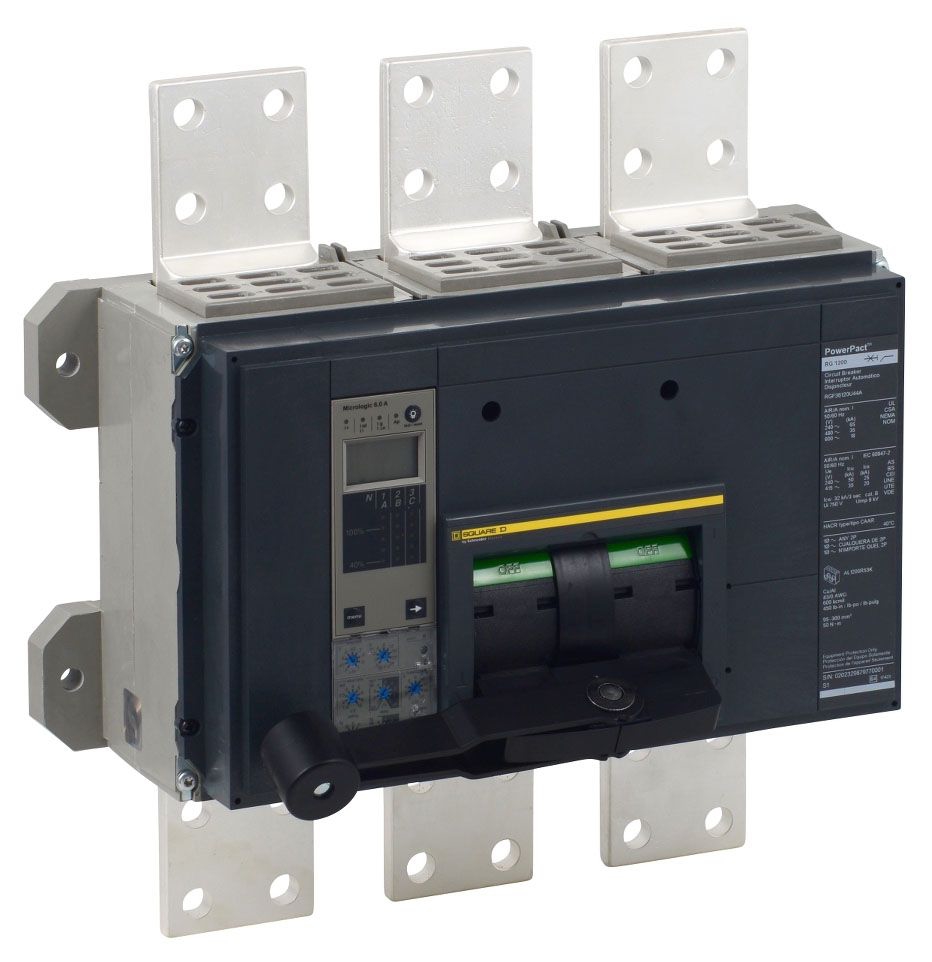

RLF36250U44A Square D / Schneider Electric Molded Case Circuit Breakers
Item # RLF36250U44A

RLF36250U44A

NOTE: Images are for Reference Only

Product Details and Specifications

Type RLF
Amperage 2500
Poles 3
Voltage 600

RLF36250U44A Description

MOLDED CASE CIRCUIT BREAKER 600V 2500A Molded Case Circuit Breakers from Square D / Schneider Electric

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$10,177.00

1 in stock

$12,970.10

Out of stock

Call For Best Price

Out of stock

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

600 V, 2500 A, 50 kA, 3-Pole, R-Frame, Molded Case Circuit Breaker
Molded Case
R
240/480/600 Volt at 50/60 Hertz
600
2500 Amp

Features and Benefits

The K Interrupting Rating is Recommended for Applications Having High Inrush and/or Non-Linear Loads Such as Large Motors, Transformers, Motors with Soft Starts, Etc; Compact Circuit Breaker Size Allows for Smaller Footprint Installations Using I-Line Panelboards and Switchboards, Fifteen Inch Width Provides Increased Density Installation; Most Field-Installable Accessories are Common to All Frame Sizes for Easier Stocking and Installation; Compatible with Powerlogic Systems and High Amperage Power Circuit Breakers; Built-In Modbus Protocol Provides an Open Communications Platform and Eliminates the Need to Purchase Additional, Proprietary Network Solutions; Connection Options Include Bus, Cable or I-Line for Installation Flexibility; RoHS, REACH Compliant; Mercury-Free; PVC-Free; Halogen-Free; Green Premium Product
Application Commercial and Industrial; Breaking Capacity Code L; Mounting Type Unit Mount; Wire Size 3/0 AWG to 600 KCMIL (Copper/Aluminum)

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The RLF36250U44A Square D / Schneider Electric Molded Case from Relectric

Relectric stocks new and used RLF36250U44A Square D / Schneider Electric Molded Case and many more brand-name electrical supplies. All of our reconditioned RLF36250U44A Square D / Schneider Electric Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your RLF36250U44A Square D / Schneider Electric Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the RLF36250U44A Square D / Schneider Electric Molded Case. Contact one of our sales consultants today.
