QOU3100 - Limited Supply - Call to Check Stock Square D / Schneider Electric Miniature Circuit Breakers

Item # QOU3100

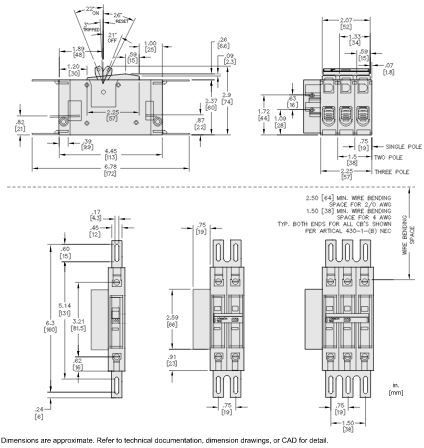

NOTE: Images are for Reference Only

Product Specifications

Type
QOU
Amperage
100
Poles
3
Voltage
240
Short Circ Int Cap
10kA@240V
Mounting Type
Bolt-On

QOU3100 - Limited Supply - Call to Check Stock Description

Square D, Miniature, Circuit Breakers, Type QOU, 100A, 3P, 240 VAC, Bolt-On, Thermal Magnetic, Interrupting Current: 10 kA at 240 VAC Miniature Circuit Breakers from Square D / Schneider Electric

Features and Benefits

Features/Benefits:
Non-Reversible Line and Load Lugs; RoHS/REACH Compliant; Mercury-Free; Halogen-Free; HACR and Switching Duty Rated; Green Premium Product
Additional Information:
120/240 VAC 50/60 Hz, 60 VDC, 100 A, 10 kA Interrupt, 3-Pole, 12 to 2/0 AWG Copper/Aluminum, Unit Mount, Slotted Box Lug Line/Load Terminal, Standard, Miniature Circuit Breaker
