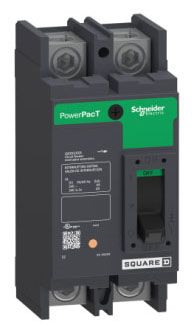

QBL32100 Square D / Schneider Electric Molded Case Circuit Breakers
Item # QBL32100

QBL32100

NOTE: Images are for Reference Only

Product Details and Specifications

Type QBL
Amperage 100
Poles 3
Voltage 240
Short Circ Int Cap 10kA@240V
Configuration Feed-Thru
Feature 1 LI Functions

QBL32100 Description

Square D, Molded Case, Circuit Breaker, Powerpact, Type QBL, 100A, 3P, 3PH, 240V, Feed-Thru, Line + Load Lugs, Thermal Magnetic, Interrupting Capacity: 10kA at 240V, LI Functions Molded Case Circuit Breakers from Square D / Schneider Electric

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$663.00

14 in stock

$861.90

Ships in 0-2 Working Days

$715.85

Ships in 0-2 Working Days

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

240 VAC, 100 A, 10 kA Interrupt Rating, 4 AWG to 300 KCMIL Aluminum/Copper, 3-Pole, Q-Frame, Line/Load Lug Terminal, Thermal Magnetic, Molded Case, Circuit Breaker
Molded Case, Thermal Magnetic
Q
240 Volt AC
240 Volt
100 Amp

Features and Benefits

Designed for Overcurrent Protection and Switching on AC Systems; Powerpact Q Circuit Breakers Contain Thermal (Overload) and Magnetic (Short Circuit) Sensing Elements in Each Pole; Main Applications are Industrial Markets and OEM Commercial; Returnable; HACR Rated; Halogen-Free; PVC-Free; Mercury-Free; Green Premium Products; RoHS/REACH Compliant
RoHS/REACH Compliant; Wire Size 4 AWG to 300 KCMIL (Aluminum/Copper); Wire Stripping Length 0.87 Inch; Tightening Torque 247.82 Pound Force-Inch; Control Type Operating Handle; Application Distribution; Ambient Temperature Rating 104 to 158 Deg F; Applicable Standard IEC

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The QBL32100 Square D / Schneider Electric Molded Case from Relectric

Relectric stocks new and used QBL32100 Square D / Schneider Electric Molded Case and many more brand-name electrical supplies. All of our reconditioned QBL32100 Square D / Schneider Electric Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your QBL32100 Square D / Schneider Electric Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the QBL32100 Square D / Schneider Electric Molded Case. Contact one of our sales consultants today.
