MDLB3800 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers
Item # MDLB3800

MDLB3800
MDLB3800

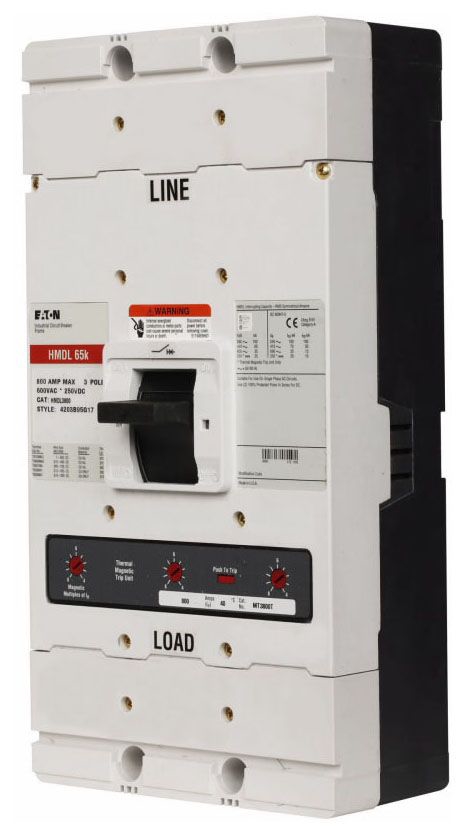

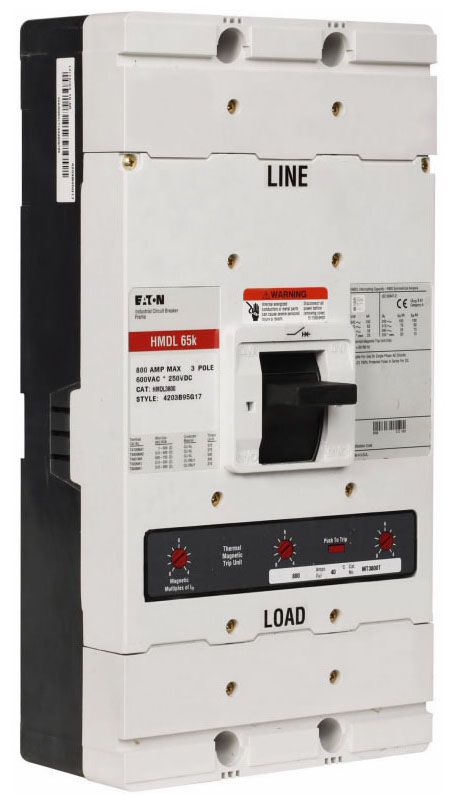

NOTE: Images are for Reference Only

Product Details and Specifications

Type MDL
Amperage 800
Poles 3
Voltage 600

MDLB3800 Description

SERIES C M-FRAME MOLDED CASE CIRCUIT BREAKER 3P 800A CB Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$1,425.00

Out of stock

$1,852.50

Out of stock

Call For Best Price

Out of stock

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

Non-Interchangeable Trip Circuit Breaker; Type Fixed Thermal Magnetic, Standard Interrupting Capacity, Molded Case; Frame Type MD; Voltage Rating 600 Volt AC 50/60 Hertz; Maximum AC Voltage Rating 600 Volt; Current Rating 800 Amp at 40 Deg C; Number of Poles 3; Interrupting Rating 65 Kiloamp at 240 Volt AC, 50 Kiloamp at 480 Volt AC, 25 Kiloamp at 600 Volt AC, 22 Kiloamp at 250 Volt DC (UL/CSA), 65/65 Kiloamp at 240 Volt AC, 50/50 Kiloamp at 415 Volt AC, 20/10 Kiloamp at 690 Volt AC, 20/10 Kiloamp at 250 Volt DC (IEC); Terminal Type Aluminum Standard Pressure Line and Load; Size 8.25 Inch Width x 4.06 Inch Depth x 16 Inch Height; Approval UL 489, CSA C22.2, CE; Application HACR, Reverse Feed; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 23a
Fixed Thermal Magnetic, Standard Interrupting Capacity, Molded Case
MD
600 Volt AC 50/60 Hertz
600 Volt
800 Amp at 40 Deg C

Features and Benefits

Application HACR, Reverse Feed; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 23a
