America's First Call for Commercial / Industrial Circuit Breakers & Other Electrical Parts.

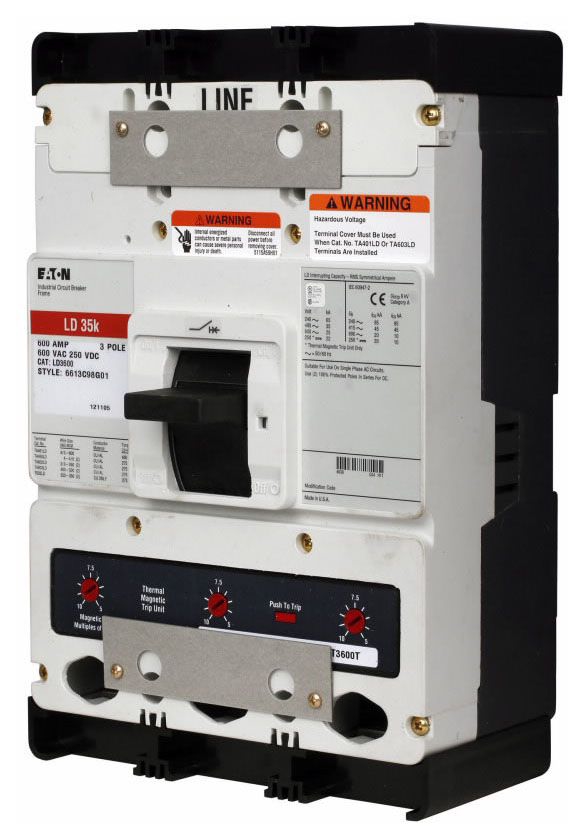

LDB3600 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers
Item # LDB3600

LDB3600

NOTE: Images are for Reference Only

Product Details and Specifications

Type LDB
Amperage 600
Poles 3
Voltage 600

LDB3600 Description

SERIES C L-FRAME MOLDED CASE CIRCUIT BREAKER 3P 600A CB Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

Call For Best Price

Ships in 0-2 Working Days

Call For Best Price

Ships in 0-2 Working Days

Call For Best Price

Ships in 0-2 Working Days

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

Non-Interchangeable Trip Circuit Breaker; Type Fixed Thermal Magnetic, Molded Case; Frame Type LD; Voltage Rating 600 Volt AC 50/60 Hertz, 250 Volt DC; Maximum AC Voltage Rating 600 Volt; Maximum DC Voltage Rating 250 Volt; Current Rating 600 Amp at 40 Deg C; Number of Poles 3; Interrupting Rating 65 Kiloamp at 240 Volt AC, 35 Kiloamp at 480 Volt AC, 25 Kiloamp at 600 Volt AC, 22 Kiloamp at 250 Volt AC (UL), 85 Kiloamp at 240 Volt AC, 45 Kiloamp at 415 Volt AC, 20 Kiloamp at 690 Volt AC/250 Volt DC (IEC); Terminal Type Aluminum Standard Pressure Line and Load; Size 8.25 Inch Width x 4.06 Inch Depth x 10.75 Inch Height; Approval UL 489, CSA C22.2, CE; Application HACR, Reverse Feed; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 23a
Fixed Thermal Magnetic, Molded Case
LD
600 Volt AC 50/60 Hertz, 250 Volt DC
600 Volt
250 Volt

Features and Benefits

Application HACR, Reverse Feed; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 23a

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The LDB3600 Eaton / Cutler-Hammer / Westinghouse Molded Case from Relectric

Relectric stocks new and used LDB3600 Eaton / Cutler-Hammer / Westinghouse Molded Case and many more brand-name electrical supplies. All of our reconditioned LDB3600 Eaton / Cutler-Hammer / Westinghouse Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your LDB3600 Eaton / Cutler-Hammer / Westinghouse Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the LDB3600 Eaton / Cutler-Hammer / Westinghouse Molded Case. Contact one of our sales consultants today.
