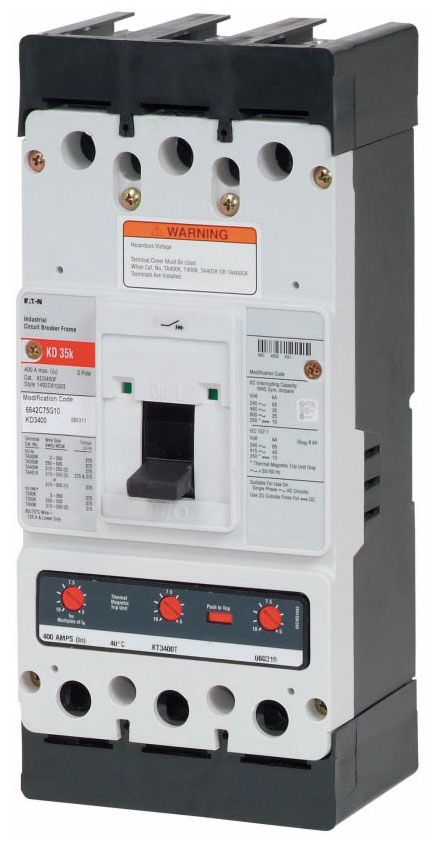

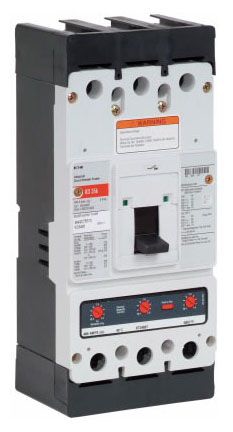

KD3100 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers
Item # KD3100

KD3100
KD3100

NOTE: Images are for Reference Only

Product Details and Specifications

Type KD
Amperage 100
Poles 3
Voltage 600
Short Circ Int Cap 35kA@480V

KD3100 Description

SERIES C K-FRAME MOLDED CASE CIRCUIT BREAKER 3P 100A CB Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

Call For Best Price

Ships in 0-2 Working Days

Call For Best Price

Ships in 0-2 Working Days

Call For Best Price

Ships in 0-2 Working Days

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

Interchangeable Trip Circuit Breaker; Type Thermal Magnetic, Standard Interrupting Capacity, Molded Case; Frame Type KD; Voltage Rating 600 Volt AC 50/60 Hertz, 250 Volt DC; Maximum AC Voltage Rating 600 Volt; Maximum DC Voltage Rating 250 Volt; Current Rating 100 Amp at 40 Deg C; Number of Poles 3; Interrupting Rating 65 Kiloamp at 240 Volt AC, 35 Kiloamp at 480 Volt AC, 25 Kiloamp at 600 Volt AC, 10 Kiloamp at 250 Volt DC (NEMA/UL/CSA), 65 Kiloamp at 240 Volt AC, 40 Kiloamp at 380/415 Volt AC, 10 Kiloamp at 250 Volt DC (IEC); Terminal Type Line and Load; Size 5.5 Inch Width x 4.1 Inch Depth x 10.13 Inch Height; Approval UL 489, CSA C22.2; Application HACR; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 23a
Thermal Magnetic, Standard Interrupting Capacity, Molded Case
KD
600 Volt AC 50/60 Hertz, 250 Volt DC
600 Volt
250 Volt

Features and Benefits

Application HACR; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 23a

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The KD3100 Eaton / Cutler-Hammer / Westinghouse Molded Case from Relectric

Relectric stocks new and used KD3100 Eaton / Cutler-Hammer / Westinghouse Molded Case and many more brand-name electrical supplies. All of our reconditioned KD3100 Eaton / Cutler-Hammer / Westinghouse Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your KD3100 Eaton / Cutler-Hammer / Westinghouse Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the KD3100 Eaton / Cutler-Hammer / Westinghouse Molded Case. Contact one of our sales consultants today.
