JJL36200 Square D / Schneider Electric Molded Case Circuit Breakers
Item # JJL36200

JJL36200
JJL36200

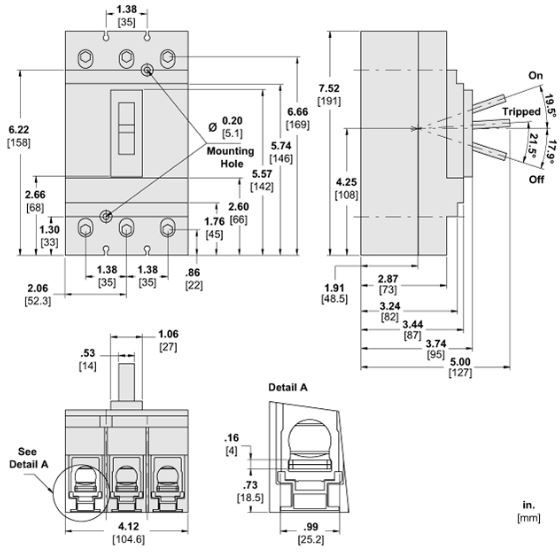

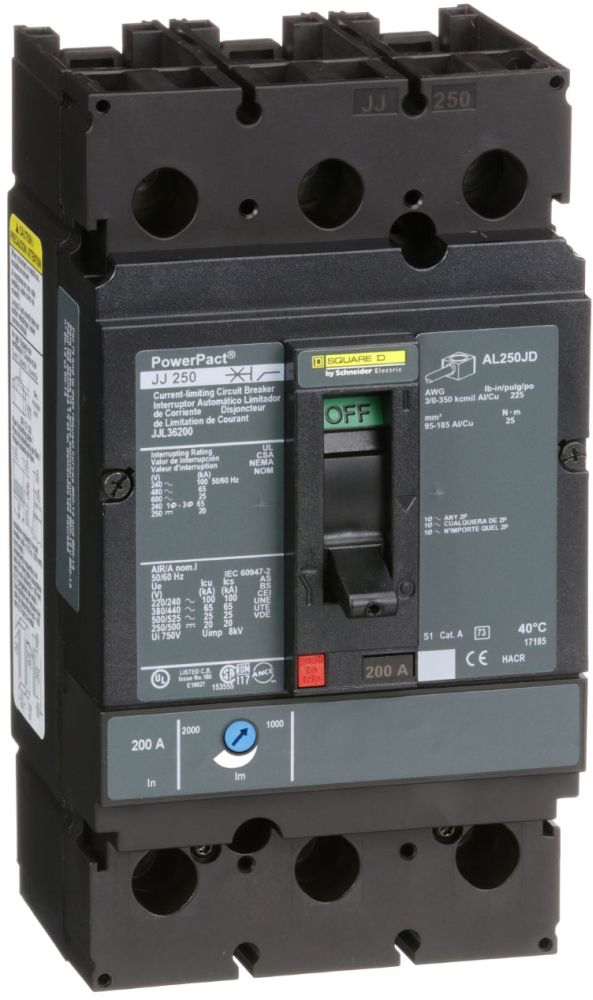

NOTE: Images are for Reference Only

Product Details and Specifications

Type JJL
Amperage 200
Poles 3
Voltage 600
Short Circ Int Cap 65kA@480V
Configuration Feed-Thru
Feature 1 LI Functions
Feature 2 80% Rated

JJL36200 Description

Square D, Molded Case, Circuit Breaker, Type JJL, 200A, 3P, 3PH, 600V, Feed-Thru, Line + Load Lugs, Thermal Magnetic, Interrupting Capacity: 100kA at 240 VAC / 65kA at 480VAC / 25kA at 600VAC, LI Functions, 80% Rated Molded Case Circuit Breakers from Square D / Schneider Electric

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$1307.50

Ships in 0-2 Working Days

$1699.75

Ships in 0-2 Working Days

$2678.00

Ships in 0-2 Working Days

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

600 VAC 50/60 Hz, 250 VDC, 200 A, 25 kA, 3-Pole, J-Frame, ABC Phase, Unit Mount, Line/Load Lug Terminal, Thermal Magnetic, Current Limiting, Adjustable, Molded Case Circuit Breaker
Thermal Magnetic, Current Limiting, Adjustable
J
600 Volt AC 50/60 Hertz, 250 Volt DC
600 Volt
250 Volt

Features and Benefits

Powerpact J-Frame Circuit Breakers are Designed to Protect Electrical Systems from Damage Caused by Overloads and Short Circuits; Powerpact J-Frame Circuit Breakers are Available with Either Thermal Magnetic or Micrologic Electronic Trip Protection Units; This Powerpact J-Frame Circuit Breaker Provides Thermal Magnetic Circuit Protection with a Breaking Capacity of 50 Kiloamp at 600 Volt AC; All Powerpact J-Frame Circuit Breakers are Equipped with Dual Break Rotating Contacts that Reduce the Amount of Peak Current During a Short Circuit Fault; All Powerpact Circuit Breakers have an Integral Push to Trip Button in the Cover to Manually Trip the Circuit Breaker; HACR Rated; RoHS/REACH Compliant; Mercury-Free; PVC-Free; Green Premium Product
RoHS/REACH Compliant; Trip Setting 1000 Amp (Low), 2000 Amp (High); Mounting Type Unit; Control Type Toggle; Terminal Wire Size 3/0 AWG to 350 KCMIL (Copper/Aluminum); Continuous Current Rating 80 Percent; Phase Connection Type ABC; Operation Ambient Air Temperature Rating 28 to 158 Deg F; Application Distribution; Applicable Standard NOM 003, NEMA, IEC 60947-2

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The JJL36200 Square D / Schneider Electric Molded Case from Relectric

Relectric stocks new and used JJL36200 Square D / Schneider Electric Molded Case and many more brand-name electrical supplies. All of our reconditioned JJL36200 Square D / Schneider Electric Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your JJL36200 Square D / Schneider Electric Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the JJL36200 Square D / Schneider Electric Molded Case. Contact one of our sales consultants today.
