JGS3100FAG Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers
Item # JGS3100FAG

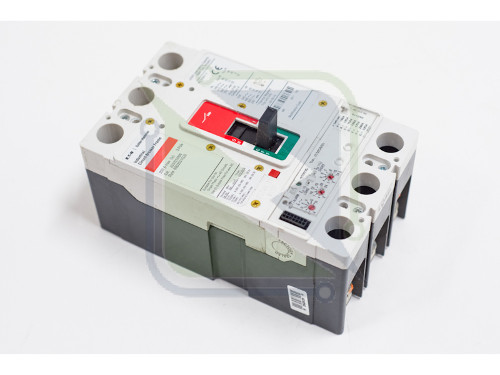

NOTE: Images are for Reference Only

Product Details and Specifications

Type JGS
Amperage 100
Poles 3
Voltage 600

JGS3100FAG Description

MOLDED CASE, THERMAL MAGNETIC; J FRAME; 220 TO 240/380 TO 415/660 TO 690 VAC AT 50/60 HZ, 250 VDC (IEC); 240/480/600 VAC AT 50/60 HZ (NEMA); 200 AMPERE AT 40 DEG C; 3 POLE; INTERRUPTING RATING 100 KILOAMPERE AT 220 TO 240 VAC, 70 KILOAMPERE AT 380 TO 415 VAC, 14 KILOAMPERE AT 660 TO 690 VAC, 22 KILOAMPERE AT 250 VDC (IEC); 100 KILOAMPERE AT 240 VAC, 65 KILOAMPERE AT 480 VAC, 35 KILOAMPERE AT 600 VAC (NEMA); TERMINAL STAINLESS STEEL STANDARD PRESSURE LINE TERMINAL, STANDARD PRESSURE LOAD TERMINAL; SIZE 105 MM W X 103 MM D X 177.8 MM H; JGH MODEL; APPLICABLE STANDARD NEMA AB-1, AS 2184, AS 3947-2, BS 4752, IEC 60947-2, NF C 63-120, SABS 156, SEV 947.2, VDE 0660 Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

Call For Best Price

Call for availability

Call For Best Price

Call for availability

$621.69

Call for availability

Call For Best Price

Call for availability

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The JGS3100FAG Eaton / Cutler-Hammer / Westinghouse Molded Case from Relectric

Relectric stocks new and used JGS3100FAG Eaton / Cutler-Hammer / Westinghouse Molded Case and many more brand-name electrical supplies. All of our reconditioned JGS3100FAG Eaton / Cutler-Hammer / Westinghouse Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your JGS3100FAG Eaton / Cutler-Hammer / Westinghouse Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the JGS3100FAG Eaton / Cutler-Hammer / Westinghouse Molded Case. Contact one of our sales consultants today.
