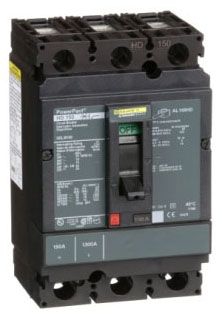

HDL36150 Square D / Schneider Electric Molded Case Circuit Breakers
Item # HDL36150

HDL36150

NOTE: Images are for Reference Only

Product Details and Specifications

Type HDL
Amperage 150
Poles 3
Voltage 600
Short Circ Int Cap 18kA@480V
Configuration Line + Load Lugs

HDL36150 Description

Square D, Circuit Breaker, Molded Case, PowerPact H, 150A, 3P, 600VAC/500VDC, Line Side Lugs, Load Side Lugs, 14-3/0 AWG Al/Cu, Thermal Magnetic, 80% Rated, Interrupting Current 25k at 240V / 18k at 480V / 14k at 600V Molded Case Circuit Breakers from Square D / Schneider Electric

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$565.00

5 in stock

Call For Best Price

Ships in 0-2 Working Days

Call For Best Price

Ships in 0-2 Working Days

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

600 VAC 50/60 Hz, 250/500 VDC, 150 A, 14 kA Interrupt Rating, 14 to 3/0 AWG Aluminum/Copper, 3-Pole, H-Frame, Line/Load Lug Terminal, Thermal Magnetic, Molded Case, Circuit Breaker
Molded Case, Thermal Magnetic
H
600 Volt AC 50/60 Hertz, 250/500 Volt DC
600 Volt
500 Volt

Features and Benefits

Utilizes Two Methods to Detect Electrical Faults - Electromagnet's and Bimetal Switch; The Current Capacity that this Circuit Breaker is Able to Interrupt before Breaking is 14 Kiloamp; Product Characteristics Conformity is Certified by the Underwriters Laboratories (UL); Utilizes 4.5 Inch of the I-Line Mounting Space; HACR Rated; PVC-Free; Mercury-Free; Green Premium Products; RoHS/REACH Compliant
RoHS/REACH Compliant; Wire Size 14 to 3/0 AWG (Aluminum/Copper); Wire Stripping Length 0.63 Inch; Tightening Torque 44.25 Pound Force-Inch (14 to 10 AWG), 123.91 Pound Force-Inch (8 to 3/0 AWG); Continuous Current Rating 80 Percent; Control Type Toggle; Enclosure Rating IP40; Application Distribution; Ambient Temperature Rating 28 to 158 Deg F (Operation), -58 to 185 Deg F (Storage); Applicable Standard IEC 60947, NEMA

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The HDL36150 Square D / Schneider Electric Molded Case from Relectric

Relectric stocks new and used HDL36150 Square D / Schneider Electric Molded Case and many more brand-name electrical supplies. All of our reconditioned HDL36150 Square D / Schneider Electric Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your HDL36150 Square D / Schneider Electric Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the HDL36150 Square D / Schneider Electric Molded Case. Contact one of our sales consultants today.
