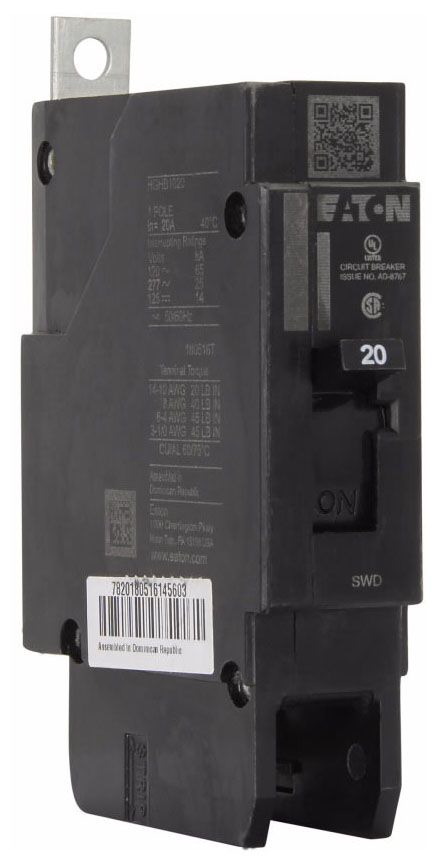

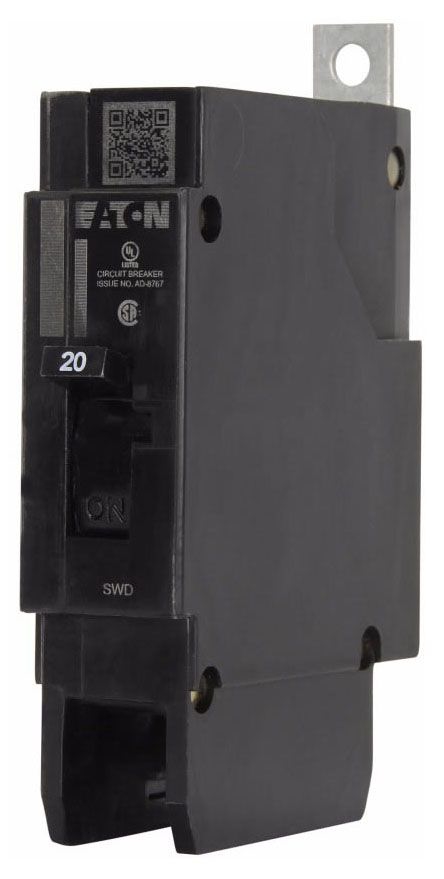

GHB1100 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers
Item # GHB1100

GHB1100
GHB1100

NOTE: Images are for Reference Only

Product Details and Specifications

Type GHB
Amperage 100
Poles 1
Voltage 277/480
Configuration Bolt-On

GHB1100 Description

Eaton, Molded Case, Circuit Breaker, Series C, Type GHB, 100A, 1P, 277/480 VAC, Bolt-On, Thermal Magnetic Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$140.00

26 in stock

Call For Best Price

Out of stock

$230.00

1 in stock

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

Non-Interchangeable Trip Circuit Breaker; Type Fixed Thermal Magnetic, Molded Case; Frame Type G; Voltage Rating 277 Volt AC 50/60 Hertz, 125 Volt DC; Maximum AC Voltage Rating 277 Volt; Maximum DC Voltage Rating 125 Volt; Current Rating 100 Amp at 40 Deg C; Number of Poles 1; Interrupting Rating 65 Kiloamp at 120/240 Volt AC, 14 Kiloamp at 125 Volt DC; Terminal Type Steel Pressure Line and Load; Size 1 Inch Width x 2.81 Inch Depth x 4.88 Inch Height; Approval UL 489, CSA C22.2; Application HACR, Reverse Feed, Panelboard; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 12b/14b
Fixed Thermal Magnetic, Molded Case
G
277 Volt AC 50/60 Hertz, 125 Volt DC
277 Volt
125 Volt

Features and Benefits

Application HACR, Reverse Feed, Panelboard; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 12b/14b
