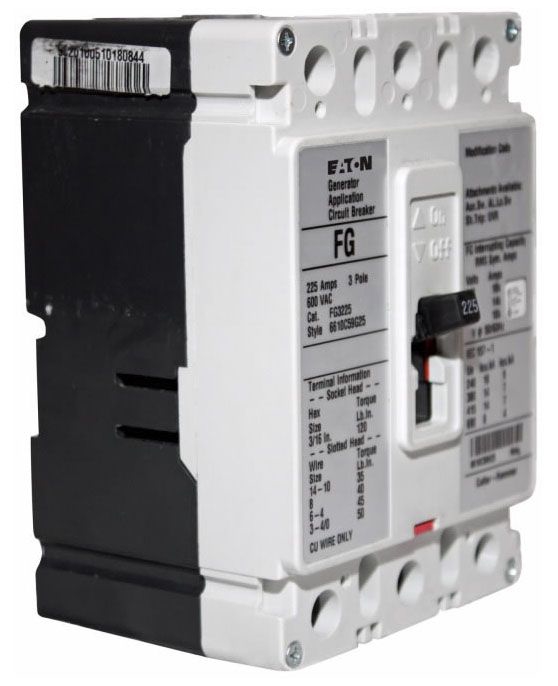

FG3225 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers
Item # FG3225

FG3225
FG3225
FG3225

NOTE: Images are for Reference Only

Product Details and Specifications

Type FG
Amperage 20
Poles 3
Voltage 600

FG3225 Description

FG TYPE BREAKER LINE AND LOAD TERMINALS Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

Call For Best Price

Out of stock

Call For Best Price

Out of stock

Call For Best Price

Out of stock

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

Molded Case Circuit Breaker; Type Fixed Thermal Magnetic, Reverse Feed; Poles 3; Voltage Rating 240/480/600 Volt AC 60 Hertz; Current Rating 225 Amp; Interrupting Rating 18 Kiloamp at 240 Volt AC, 14 Kiloamp at 480 Volt AC; Terminal Type Line and Load; Used On Engine Generator; Size 4.9 Inch Width x 7.7 Inch Depth x 4.9 Inch Height; Approval UL 489, CSA C22.2; Generator Rating 65 Kilowatt at 240 Volt AC, 130 Kilowatt at 480 Volt AC, 162 Kilowatt at 600 Volt AC; Applicable Standard IEC 947-2, QPL 17361
Fixed Thermal Magnetic, Reverse Feed
3
240/480/600 Volt AC 60 Hertz
225 Amp
18 Kiloamp at 240 Volt AC, 14 Kiloamp at 480 Volt AC

Features and Benefits

Molded Case Circuit Breakers are Designed Specifically for Application on Diesel Engine Powered Standby Generators Where High Interrupting Circuit Breakers are Not Required; Engine Generator Breakers are Applied at 115% of the Generator Full Load Current Rating (FLA); The Maximum KW Rating is Based on Three-Phase Generators at 80% Power Factor
Generator Rating 65 Kilowatt at 240 Volt AC, 130 Kilowatt at 480 Volt AC, 162 Kilowatt at 600 Volt AC; Applicable Standard IEC 947-2, QPL 17361

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The FG3225 Eaton / Cutler-Hammer / Westinghouse Molded Case from Relectric

Relectric stocks new and used FG3225 Eaton / Cutler-Hammer / Westinghouse Molded Case and many more brand-name electrical supplies. All of our reconditioned FG3225 Eaton / Cutler-Hammer / Westinghouse Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your FG3225 Eaton / Cutler-Hammer / Westinghouse Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the FG3225 Eaton / Cutler-Hammer / Westinghouse Molded Case. Contact one of our sales consultants today.
