FD3025L Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers
Item # FD3025L

FD3025L
FD3025L

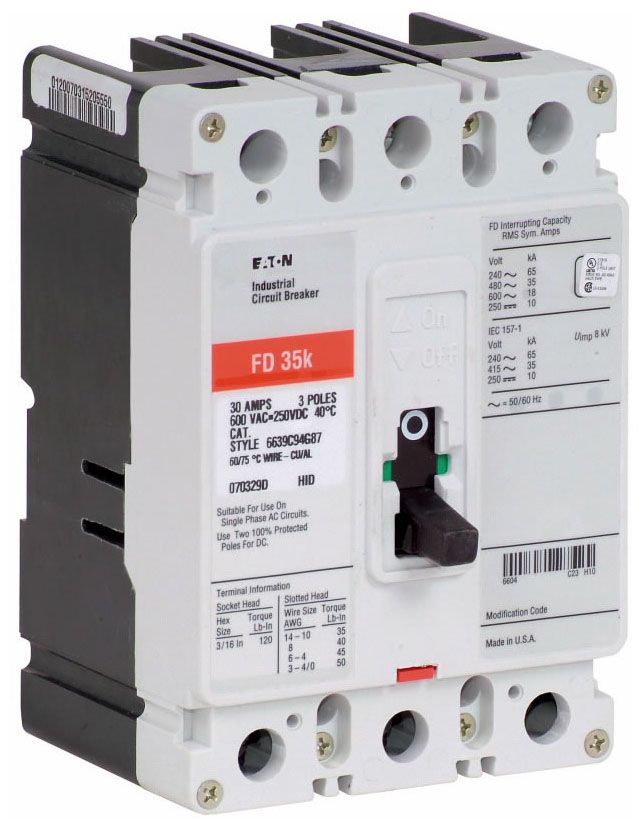

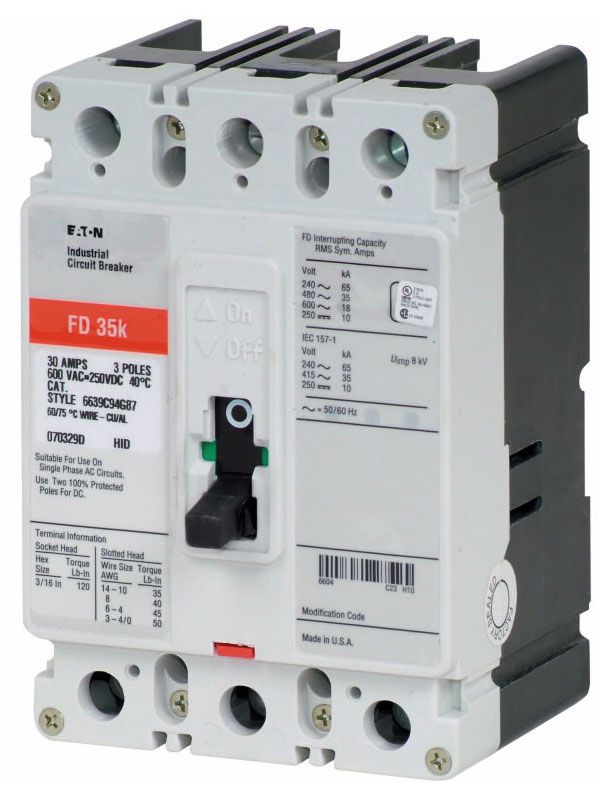

NOTE: Images are for Reference Only

Product Details and Specifications

Type FD
Amperage 25
Poles 3
Voltage 600
Short Circ Int Cap 35kA@480V

FD3025L Description

CHR; 25A; 3P; 600V; Type FD Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

Call For Best Price

Ships in 0-2 Working Days

Call For Best Price

Ships in 0-2 Working Days

Call For Best Price

Ships in 0-2 Working Days

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

Non-Interchangeable Trip Circuit Breaker; Type Fixed Thermal Magnetic, Molded Case; Frame Type FD; Voltage Rating 600 Volt AC 50/60 Hertz, 250 Volt DC; Maximum AC Voltage Rating 600 Volt; Maximum DC Voltage Rating 250 Volt; Current Rating 25 Amp at 40 Deg C; Number of Poles 3; Interrupting Rating 65 Kiloamp at 240 Volt AC, 35 Kiloamp at 480 Volt DC, 18 Kiloamp at 600 Volt AC, 10 Kiloamp at 250 Volt DC (UL), 65 Kiloamp at 220/240 Volt AC, 35 Kiloamp at 380/415/440 Volt DC, 18 Kiloamp at 500 Volt AC, 10 Kiloamp at 250 Volt DC (IEC); Terminal Type Line and Load; Size 4.13 Inch Width x 3.38 Inch Depth x 6 Inch Height; Approval UL 489, CSA C22.2; Application HACR, Switchboard; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 22a
Fixed Thermal Magnetic, Molded Case
FD
600 Volt AC 50/60 Hertz, 250 Volt DC
600 Volt
250 Volt

Features and Benefits

All Eaton's F-Frame Circuit Breakers are HACR Rated; All Circuit Breakers 10 through 30 Amp are Suitable for HID (High Intensity Discharge) Use
Application HACR, Switchboard; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 22a
