FD2175 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers
Item # FD2175

FD2175
FD2175

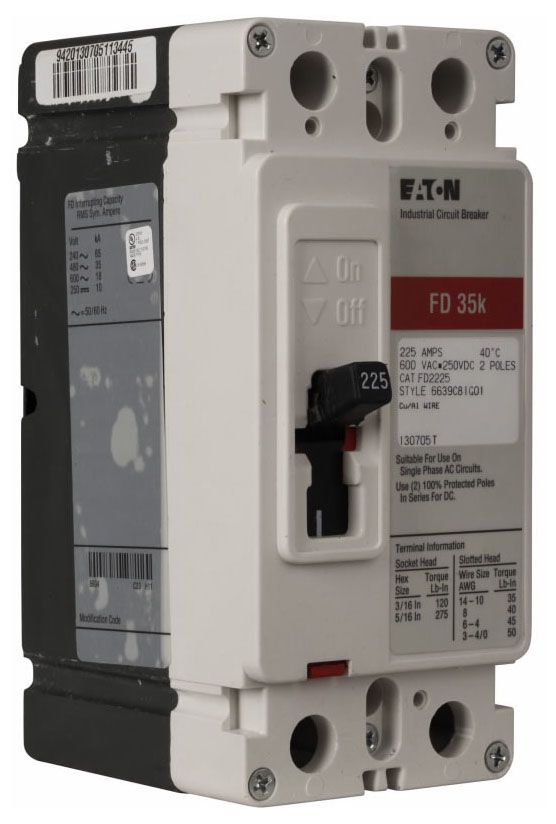

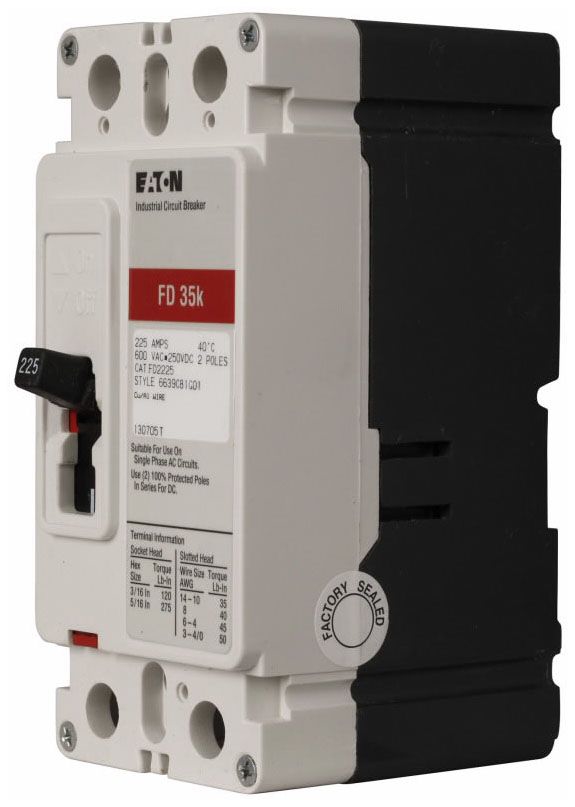

NOTE: Images are for Reference Only

Product Details and Specifications

Type FD
Amperage 175
Poles 2
Voltage 600
Short Circ Int Cap 35kA@480V

FD2175 Description

Molded Case, Thermal Magnetic; F-Frame, Series C; 600 VAC AT 50/60 Hz, 250 VDC; 175A AT 40 DEG C; 2P; Interrupting Rating 65kA AT 240 VAC, 35kA AT 480 VAC, 18kA AT 600 VAC, 10kA AT 250 VDC; 65kA AT 220/240 VAC, 35kA AT 380/415/440 VAC, 18kA AT 500 VAC, 10kA AT 250 VDC; Load Side Lugs; Size 2.75 Inch W X 3.375 Inch D X 6 Inch H; FD Model Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$500.00

Ships in 0-2 Working Days

$637.69

Ships in 0-2 Working Days

$841.65

Ships in 0-2 Working Days

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

Non-Interchangeable Trip Circuit Breaker; Type Fixed Thermal Magnetic, Molded Case; Frame Type FD; Voltage Rating 600 Volt AC 50/60 Hertz, 250 Volt DC; Maximum AC Voltage Rating 600 Volt; Maximum DC Voltage Rating 250 Volt; Current Rating 175 Amp at 40 Deg C; Number of Poles 2; Interrupting Rating 65 Kiloamp at 240 Volt AC, 35 Kiloamp at 480 Volt DC, 18 Kiloamp at 600 Volt AC, 10 Kiloamp at 250 Volt DC (UL), 65 Kiloamp at 220/240 Volt AC, 35 Kiloamp at 380/415/440 Volt DC, 18 Kiloamp at 500 Volt AC, 10 Kiloamp at 250 Volt DC (IEC); Terminal Type Load; Size 2.75 Inch Width x 3.38 Inch Depth x 6 Inch Height; Approval UL 489, CSA C22.2; Application HACR, Switchboard; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 22a
Fixed Thermal Magnetic, Molded Case
FD
600 Volt AC 50/60 Hertz, 250 Volt DC
600 Volt
250 Volt

Features and Benefits

Application HACR, Switchboard; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 22a

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The FD2175 Eaton / Cutler-Hammer / Westinghouse Molded Case from Relectric

Relectric stocks new and used FD2175 Eaton / Cutler-Hammer / Westinghouse Molded Case and many more brand-name electrical supplies. All of our reconditioned FD2175 Eaton / Cutler-Hammer / Westinghouse Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your FD2175 Eaton / Cutler-Hammer / Westinghouse Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the FD2175 Eaton / Cutler-Hammer / Westinghouse Molded Case. Contact one of our sales consultants today.
